Ublox EVK-M8xZOE Series Quick Start

Quick Start EVK-M8xZOE

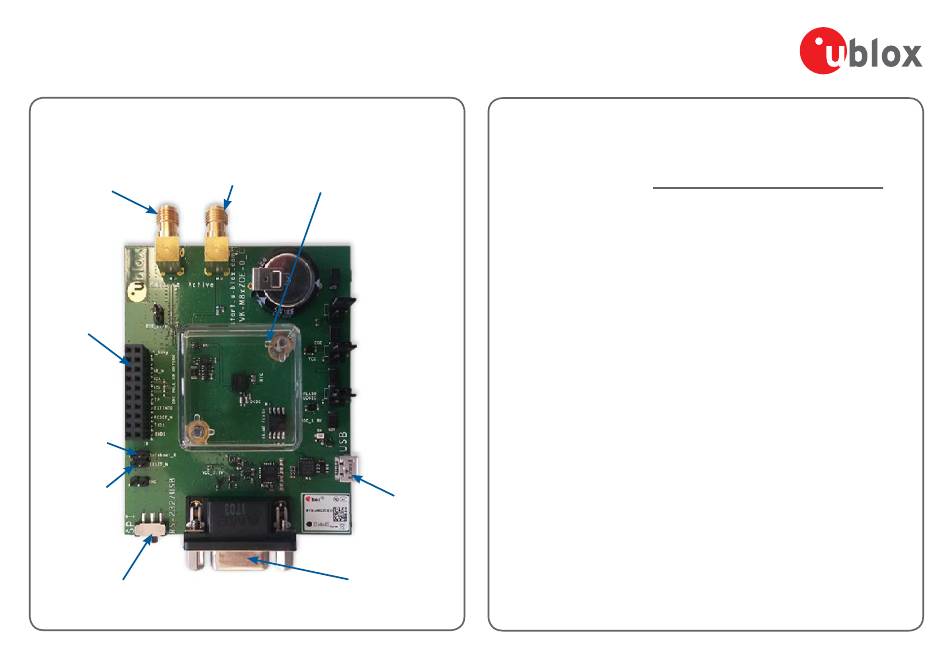

1. Overview
H (RF IN,
active antenna)
simulator)
G (20 pin
connector)
E (Boot)
F (RST)
D (SPI or RS232/USB switch)
Copyright © 2017, u-blox AG
A (RF IN,
Plastic
protection cover
B (USB)
C (RS232)
2. Setup
1. Download the EVK-M8xZOE software (and docu-
mentation) from www.u-blox.com/evaluation-kits
and install the software. For more instructions, see
the section 5, Installation.
2. Connect the unit to the PC. Options:
• USB: Connect via USB port (B). Set switch (D) to
RS232/USB.
• UART: Connect via RS232 (C). Set switch (D) to
RS232/USB.
Note: The Windows system will automatically search
for and install the USB driver.
3. Provide power to the device at all times, either via
USB or the V5_IN pin on the 20-pin connector (G).
4. Connect active GNSS antenna signal to EVK via RF IN
active antenna ( A ) or connect simulator to EVK via
RF IN simulator ( H ).
5. Start the u-center GNSS Evaluation Software and
select the corresponding COM port and baud rate
(9600 baud).
