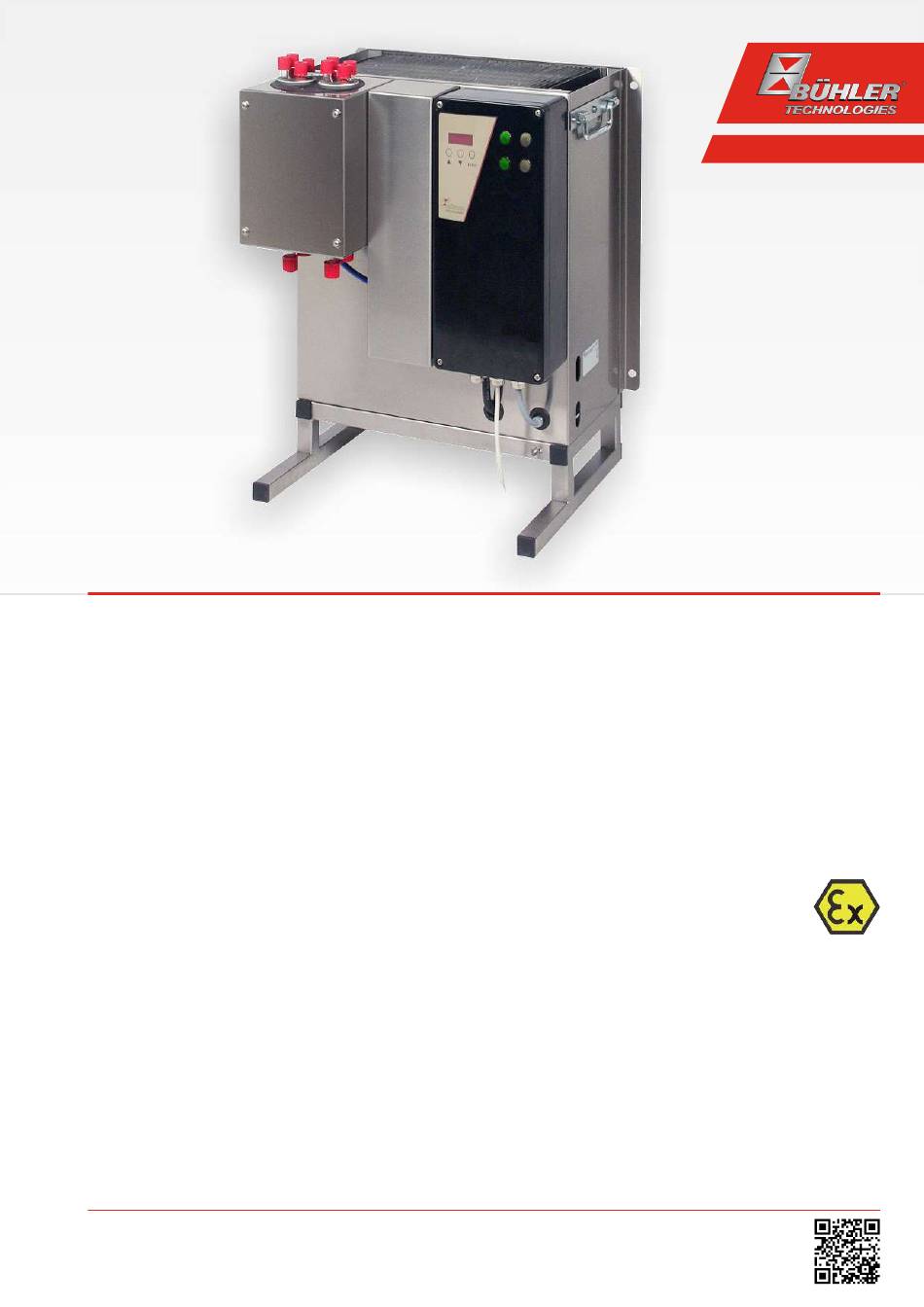

Gas Analysis
Sample gas cooler
EGK 2A Ex
Installation and Operation Instructions
Original instructions
BE450020
Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen
09/2019
Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20
E-Mail: analyse@buehler-technologies.com
Internet: www.buehler-technologies.com
Advertisement
Table of Contents
Related Manuals for Bühler technologies EGK 2A Ex
Summary of Contents for Bühler technologies EGK 2A Ex
- Page 1 Gas Analysis Sample gas cooler EGK 2A Ex Installation and Operation Instructions Original instructions BE450020 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen 09/2019 Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 E-Mail: analyse@buehler-technologies.com...
- Page 2 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 Internet: www.buehler-technologies.com E-Mail: analyse@buehler-technologies.com Read this instruction carefully prior to installation and/or use. Pay at- tention particularly to all advises and safety instructions to prevent in- juries.
-
Page 3: Table Of Contents
EGK 2A Ex Contents Introduction............................................. 3 Intended Use......................................... 3 Design types.......................................... 3 Type plate .......................................... 3 Scope of delivery ........................................ 3 Safety instructions......................................... 4 Important notices........................................ 4 General hazard warnings .................................... 5 Product description ........................................ 7 General description ...................................... 7 Functional principle of the cooler .................................. 7 4 Transport and storage ........................................ - Page 4 EGK 2A Ex 13 Attached documents ........................................ 31 Bühler Technologies GmbH BE450020 ◦ 09/2019...
-
Page 5: Introduction
1.3 Type plate Example: Manufacturer including address Model designation Sample Gas Cooler EGK 2A Ex Serial no., Item no. 100086648 459020000000 001 Blast protection marking II 2 G Ex pxb eb mb q [ia] IIC T4 Gb Mains voltage 230 V 50/60 Hz BVS 03 ATEX E 301 X;... -
Page 6: Safety Instructions
EGK 2A Ex 2 Safety instructions 2.1 Important notices NOTICE The device is suitable for hazardous areas. This unit may only be used if: – the product is being used under the conditions described in the operating- and installation instructions, used according to the nameplate and for applications for which it is intended. -
Page 7: General Hazard Warnings
EGK 2A Ex Warning signs In this manual, the following warning signs are used: Warning against hazardous situations Warning against possible explosions Warning against electrical voltage General notice Warning against respiration of toxic gases Disconnect from mains Warning against acid and corrosive substances... - Page 8 EGK 2A Ex DANGER Toxic and corrosive gases / condensate Sample gas / condensate can be hazardous. a) Take care that the gas is exhausted in a place where no persons are in danger. b) Before maintenance turn off the gas supply and make sure that it cannot be turned on unintentionally.
-
Page 9: Product Description
EGK 2A Ex 3 Product description 3.1 General description A sample gas cooler is used to lower the moisture content, thus the dew point of a sample gas. This is intended to on one hand lower measurement accuracies through volume influence, on the other to avoid for moisture to condense further along the measuring path and cause damage, particularly to the delicate measuring cell of the analyser. -
Page 10: Transport And Storage
EGK 2A Ex 4 Transport and storage The sample gas cooler must be transported in the original packaging or a suitable alternative. It must be transported upright. Never place it on its side during transport, as oil could otherwise leak from the compressor and enter the cooling circuit. This can result in cooler start-up problems or failure. -
Page 11: Installation And Connection
EGK 2A Ex 5 Installation and connection 5.1 Installation site requirements The unit is intended for use in enclosed areas. Adequate protection from the weather must be provided when used outdoors. The approved environmental conditions for explosive areas according to the enclosed data sheet must be met. -
Page 12: Electrical Connections And Potential Equalisation
EGK 2A Ex DANGER Explosion hazard due to flame propagation Severe injuries and damage to the system If the process holds a risk of flame propagation, install a flame arrestor. When using automatic condensate drains, the gas pump must be installed ahead of the cooler to ensure proper function of the condensate drain. -
Page 13: Testing Insulation Resistance
EGK 2A Ex – Pay particular attention of the earth connection of the mains supply line: All the individual parts are pre-installed on the threaded bolt at the bottom right inside the housing: Loosen the nut and remove the nut, washers and ring cable lug. Attach the ring cable lug to the earth wire of the power cable. -
Page 14: Operation And Controls
EGK 2A Ex 6 Operation and controls NOTICE The device must not be operated beyond its specifications. CAUTION Hot surface Risk of burns Depending on the operating parameters, the air heat exchanger at the back of the cooler can reach a temperature of up to 80 °C during operation. -
Page 15: Operation Of The Menu Functions
EGK 2A Ex 6.2 Operation of the menu functions Overview of the operational principal: Use this short description if you have experience with the device. Operation is carried out by only the keys with the following functions: Function – Switch from measurement display to main menu –... -
Page 16: Detailed Description Of The Operational Principle
EGK 2A Ex 6.2.2 Detailed description of the operational principle The detailed description will guide you through the menu step by step. Connect the unit to the power supply and wait for the startup procedure to complete. At first the software version im- plemented on the unit will be displayed for a brief period. -
Page 17: Submenu
EGK 2A Ex Exit main menu Selecting this item returns to the display mode. 6.3.2 Submenu Cooler -> nominal temperature (temperature) This setting determines the nominal temperature for the cooler temperature. The value can be set to a range from 2 °C (35.6 °F) to 20 °C (68 °F). -
Page 18: Maintenance
EGK 2A Ex 7 Maintenance – Maintenance of the device shall be performed by trained staff only, familiar with the safety requirements and risks. – Only perform maintenance work described in this manual. – Regard all relevant safety regulations and internal operating instructions during maintenance. -
Page 19: Maintenance
EGK 2A Ex 7.1 Maintenance The following checks and, if necessary, cleaning must be performed at least once a year. No additional maintenance is required. A maintenance record should be kept. A master operations diary can be found at the end of the operating instructions for copy- ing. -
Page 20: Replacing The Heat Exchanger
EGK 2A Ex 7.2.1 Replacing the heat exchanger For the heat exchanger model, please refer to the item number under chapter Introduction. Heat exchangers only need to be replaced when clogged or damaged. If they are clogged, we recommend checking if using a fil- ter will avoid future occurrences. -
Page 21: Replacing The Electronics
EGK 2A Ex 7.2.3 Replacing the electronics Note the correct voltage: 230 V: Item no.: 45 90 999 7 MC 115 V: Item no.: 45 91 999 7 MC – Please observe the warnings in chapter “Maintenance”. – De-energise (supply and status outlet) and depressurise the system. -
Page 22: Replacing The Display
EGK 2A Ex – Test according to chapter “Testing the pressure monitoring circuit”. – Allow the cooler to operate and check if it reaches the operating range. 7.2.5 Replacing the display – Please note the warnings under chapter Maintenance . -
Page 23: Service Und Repair
EGK 2A Ex 8 Service und repair If the device shows irregularities see this chapter for troubleshooting. Repairs on the device must be carried out by Bühler authorized persons only. If you need help or more information call: +49-(0)2102-498955 or your local agent If the device doesn’t work correctly after elimination of failures and turning power on, the device must be checked by the manu-... -
Page 24: Troubleshooting
EGK 2A Ex 8.1 Troubleshooting CAUTION Risk due to defective device Personal injury or damage to property a) Switch off the device and disconnect it from the mains. b) Repair the fault immediately. The device should not be turned on again before elim- ination of the failure. -
Page 25: Safety Instructions
EGK 2A Ex 8.2 Safety instructions – The device must be operated within its specifications. – All repairs must be carried out by Bühler authorised personnel only. – Only perform modifications, servicing or mounting described in this manual. – Only use original spare parts. -
Page 26: Press Switches Respond During Initial Start-Up
EGK 2A Ex 8.4 Press switches respond during initial start-up DANGER Explosion hazard The following description does not apply if the pressure controls on the cooler are triggered within the first minute. In this case there is a serious malfunction, resulting in... -
Page 27: Disposal
EGK 2A Ex 9 Disposal The refrigerant circuit of the cooler contains R134a refrigerant. Dispose of parts so as not to endanger the health or environment. Follow the laws in the country of use for disposing of elec- tronic components and devices during disposal. -
Page 28: Durability List
EGK 2A Ex 10 Durability list Heat exchanger: TS, DTS TG, DTG TV, DTV Formula Medium Concentration Glass (Teflon coated seal) PVDF COCH Acetone Benzol Chlorine 10 % wet Chlorine 97 % Ethane Ethanol 50 % Ethylene Ethyne Ethylbenzene Hydrofluoric acid... -
Page 29: User Book (Please Make Copies)
EGK 2A Ex 11 User book (Please make copies) Maintenance Device-no. Operation time Remarks Signature performed (date) BE450020 ◦ 09/2019 Bühler Technologies GmbH... -
Page 30: Appendices
EGK 2A Ex 12 Appendices 12.1 Technical Data Gas Cooler Technical Data ATEX approval II 2 G Ex pxb eb mb q [ia] IIC T4 Gb Ready for operation after max. 20 minutes Rated cooling capacity (at 25 °C) > 615 kJ/h (170 W) Ambient temperature 0 °C to 45 °C... -
Page 31: Dimensions
EGK 2A Ex 12.2 Dimensions 12.3 Heat exchanger 12.3.1 Heat exchanger description The energy content of the sample gas and the required cooling capacity of the gas cooler is determined by three parameters: gas temperature ϑ , dew point τ... -
Page 32: Performance Data
EGK 2A Ex 12.4 Performance data Ambient temperature (°C) Note: The limit curves for the heat exchangers exchanger apply to a dew point of 65 °C. 30 Bühler Technologies GmbH BE450020 ◦ 09/2019... - Page 33 EGK 2A Ex 13 Attached documents – Wiring diagram: 47/170-08-3 – Declaration of Conformity KX450007 – Gas Cooler Examination Certificate – Examination Certificate for Components – RMA - Decontamination Statement BE450020 ◦ 09/2019 Bühler Technologies GmbH...
- Page 46 C E R T I F I C A T I O N EC TYPE-EXAMINATION CERTIFICATE Component intended for use in Potentially Explosive Atmospheres Directive 94/9/EC Certificate Number: Sira 99ATEX3172U Issue: Component: BPG Range of Enclosures Applicant: ABTECH Limited Address: Sanderson Street Lower Don Valley Sheffield S9 2UA...
- Page 47 C E R T I F I C A T I O N SCHEDULE EC TYPE-EXAMINATION CERTIFICATE Sira 99ATEX3172U Issue 6 DESCRIPTION OF COMPONENT The BPG range of enclosures are manufactured from polyester in the following sizes: Length Width Height Reference (mm) (mm)
- Page 48 C E R T I F I C A T I O N SCHEDULE EC TYPE-EXAMINATION CERTIFICATE Sira 99ATEX3172U Issue 6 Variation 3 - This variation introduced the following changes: Following appropriate re-assessment to demonstrate compliance with the requirements of the EN 60079 series of standards, the documents previously listed in section 9, EN 50014:1997, EN 50019:1994 and EN 50281-1-1:1999, were replaced by those currently listed, the markings in section 12 were updated accordingly.
- Page 49 C E R T I F I C A T I O N SCHEDULE EC TYPE-EXAMINATION CERTIFICATE Sira 99ATEX3172U Issue 6 CONDITIONS OF CERTIFICATION 17.1 The use of this certificate is subject to the Regulations Applicable to Holders of Sira Certificates. 17.2 Holders of EC type-examination certificates are required to comply with the production control requirements defined in Article 8 of directive 94/9/EC.
- Page 50 Certificate Annexe Certificate Number: Sira 99ATEX3172U Component: BPG Range of Enclosures C E R T I F I C A T I O N Applicant: ABTECH Limited Issue 0 and 1: The drawings associated with these Issues were rationalised by those listed in Issue 2. Issue 2 Number Sheet...
- Page 51 ABTQ-29 rev 03 (Last review: 21 Jul 12) INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS FOR ABTECH ‘BPG’ Range Enclosures – SIRA 99ATEX3172U Marking The marking shown is for a component certified enclosure. The user must submit the completed unit for type examination if it is to be used in a hazardous TYPE BPG area.
- Page 52 ABTQ-29 rev 03 (Last review: 21 Jul 12) and where a window is fitted metallic slotted trunking must be used. Trunking may be mounted in any orientation in the box, vertically, horizontally or diagonally. Secure the lid by closing the lid and tightening the lid fixing screws. Earthing/Grounding The enclosure may be provided with an external earth/ground connection.
- Page 53 RMA-Formular und Erklärung über Dekontaminierung RMA-Form and explanation for decontamination RMA-Nr./ RMA-No. Die RMA-Nummer bekommen Sie von Ihrem Ansprechpartner im Vertrieb oder Service./ You may obtain the RMA number from your sales or service representative. Zu diesem Rücksendeschein gehört eine Dekontaminierungserklärung. Die gesetzlichen Vorschriften schreiben vor, dass Sie uns diese Dekontaminierungserklärung ausgefüllt und unterschrieben zurücksenden müssen.
- Page 54 Dekontaminierungserklärung DE000011 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen 01/2019 Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 E-Mail: service@buehler-technologies.com Internet: www.buehler-technologies.com...
