Falco Systems WMA-100 User Manual

High voltage amplifier dc – 500khz
Hide thumbs Also See for WMA-100:

Advertisement

Quick Links

Falco Systems WMA-100
● High voltage: 20x amplification up to +175V and -175V output voltage
● DC to 500kHz at (-3dB) large signal bandwidth and 100mA output current
● Very low noise: ~560µV
● No overshoot with capacitive loads: bandwidth changes automatically to
ensure stability
● Short-circuit protected output
● Adjustable DC offset
About this manual
This user manual is an integral part of the
Falco Systems WMA-100 high voltage
amplifier product. Please read it carefully
and pay attention to the recommendations
and instructions for safe use.
The WMA-100 amplifier:
getting started

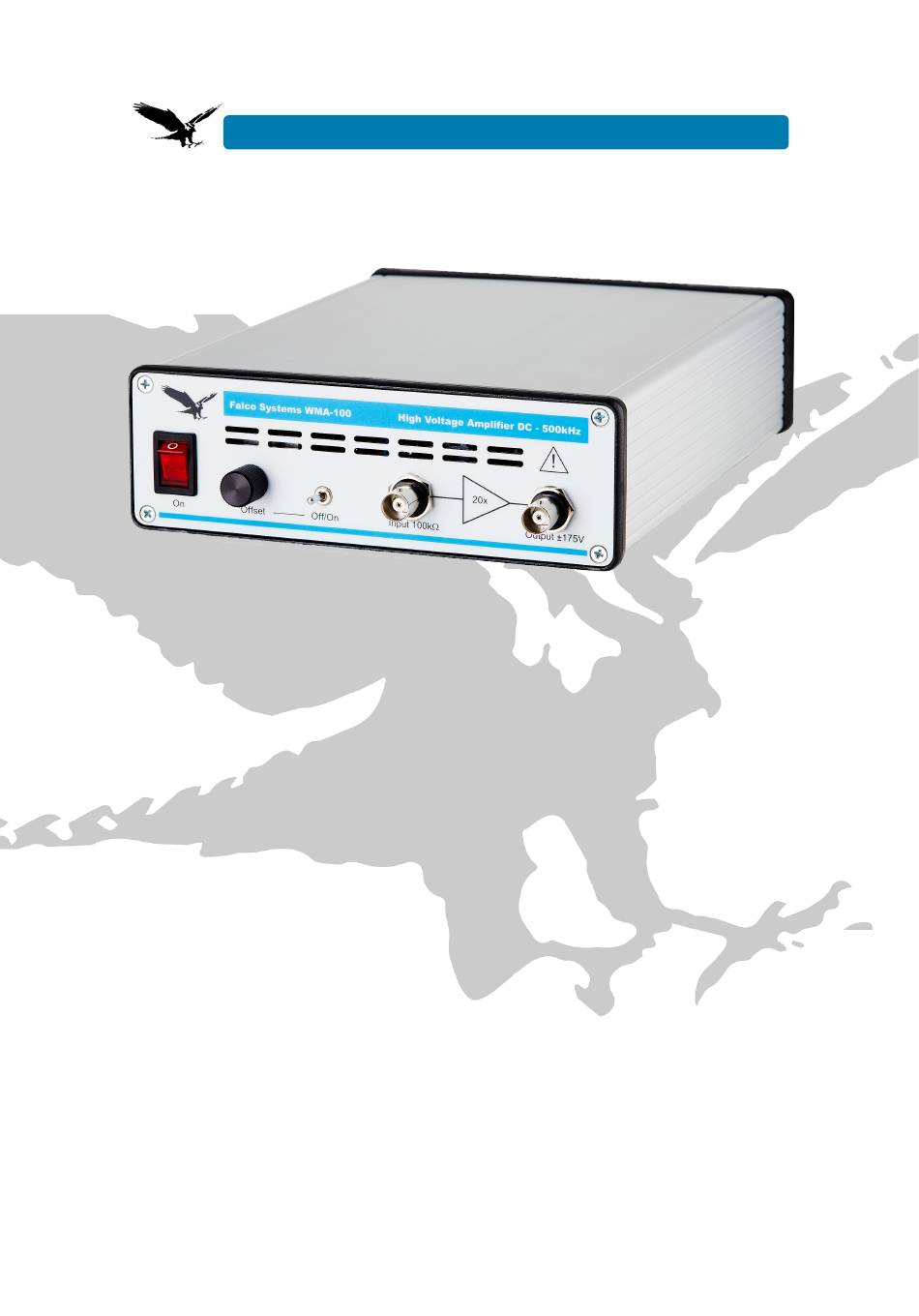

The Falco Systems WMA-100 model is a
high quality, cost-effective, high voltage,
linear
laboratory
amplifier.
bandwidth and large voltage range make it
an excellent choice for use with MEMS
High Voltage Amplifier DC – 500kHz
USER MANUAL
, and even lower with capacitive loads
rms
devices, EO-modulators, piezo positioning
systems,
dielectric
applications. It is designed to be fully
stable and free of spurious signals with
any capacitive load.
The amplification is 20x (fixed). The
amplifier has a range of -175V to +175V, a
large 500kHz @ -3dB signal bandwidth, a
typical slew rate of 350V/µs, and a noise
level
protection with a fast current limit of
Its
wide
±100mA makes this amplifier suitable for
both normal daily laboratory use and
automated measurement systems.
beam
steering,
ultrasonics,
studies,
and
many
of
~560µV
.
The
short-circuit
rms
other
