Falco Systems WMA-100A User Manual

Falco Systems WMA-100A
● High voltage: 20x amplification up to +170V and -170V output voltage
● DC to 500kHz -3dB large signal bandwidth and 100mA output current
● Very low noise: ~840µV
● No overshoot with capacitive loads: bandwidth changes automatically to
ensure stability
● Short-circuit protected output
● Adjustable DC offset
About this manual
This user manual is an integral part of the
Falco Systems WMA-100A high voltage
amplifier product. Please read it carefully
and pay attention to the recommendations
and instructions for safe use.
The WMA-100A amplifier:
getting started

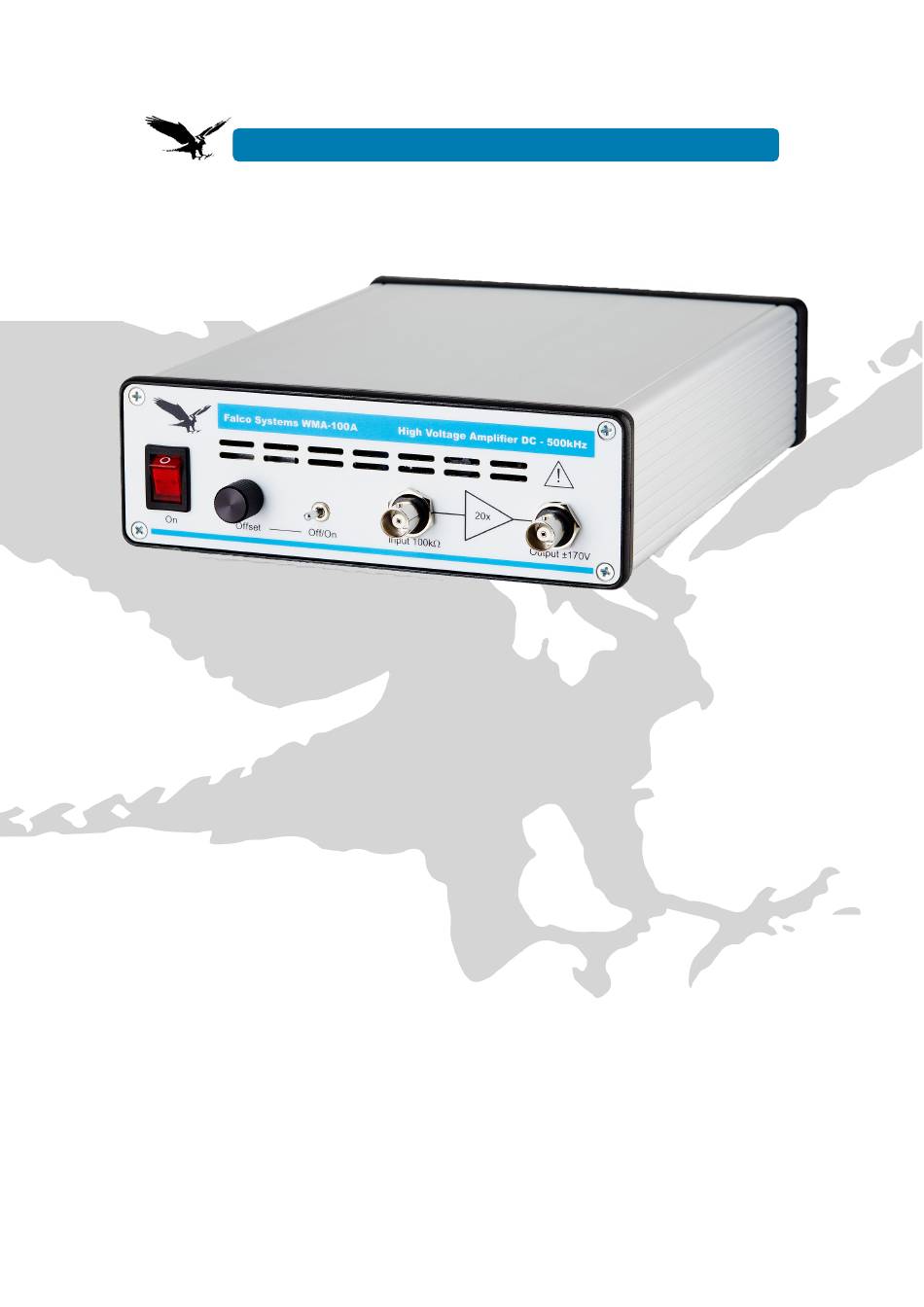

The Falco Systems WMA-100A model is a
high quality, cost-effective, high voltage,
linear laboratory amplifier.
bandwidth and large voltage range make it
an excellent choice for use with MEMS
High Voltage Amplifier DC – 500kHz
USER MANUAL
in DC - 10MHz; lower with capacitive loads
rms
devices, EO-modulators, piezo positioning
systems,
dielectric
applications. It is designed to be fully
stable and free of spurious signals with
any capacitive load.
The amplification is 20x (fixed). The
amplifier has a range of -170V to +170V, a
large 500kHz @ -3dB signal bandwidth, a
typical slew rate of 350V/μs, and a noise
level of ~840µV
short-circuit protection with a fast current
limit of ±100mA makes this amplifier
suitable for both normal daily laboratory
Its wide
use and
systems.
beam steering, ultrasonics,
studies, and many
in DC – 10MHz. The
rms
automated measurement
other
