Falco Systems WMA-100 User Manual

High voltage amplifier dc – 500khz
Hide thumbs Also See for WMA-100:

Advertisement

Quick Links

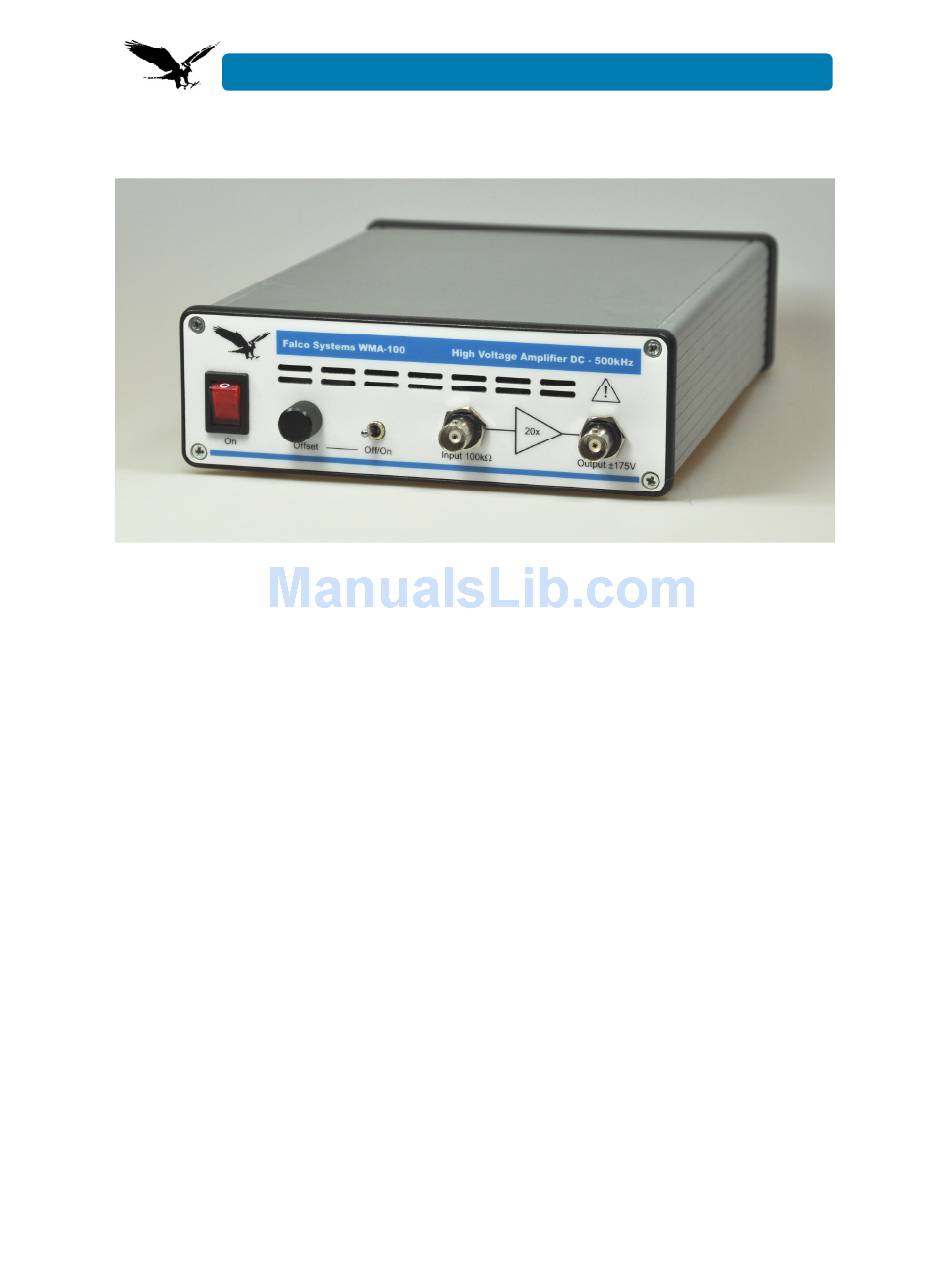

Falco Systems WMA-100
● High voltage: 20x amplification up to +175V and -175V output voltage
with respect to ground
● DC to 500kHz at (-3dB) large signal bandwidth and 100mA output
current
● Very low noise: ~350µV
driven
● No overshoot with capacitive loads: bandwidth changes automatically
to ensure stability
● Short-circuit protected output
● Adjustable DC offset
About this manual
This user manual is an integral part of the
Falco Systems WMA-100 high voltage
amplifier product. Please read it carefully
and pay attention to the recommendations
and instructions for safe use.
The
WMA-100
amplifier: getting started
The Falco Systems WMA-100 model is a
high quality, cost-effective, high voltage,
linear
laboratory
amplifier.
bandwidth and large voltage range make it
an excellent choice for use with MEMS
USER MANUAL
, and even lower when capacitive loads are
rms
high
voltage
Its
wide
High Voltage Amplifier DC – 500kHz
devices, EO-modulators, piezo positioning
systems,
beam
steering,
dielectric
studies,
applications. It is designed to be fully
stable and free of spurious signals with
any capacitive load.
The amplification is 20x (fixed). The
amplifier has a range of –175V to +175V,
a large signal bandwidth of 500kHz @ -
3dB, a typical slew rate of 350V/µs, and a
noise level of ~350µV
protection with a fast current limit of
±100mA make this amplifier suitable for
both normal daily laboratory use and
automated measurement systems.
ultrasonics,
and
many
other
. The short-circuit
rms
