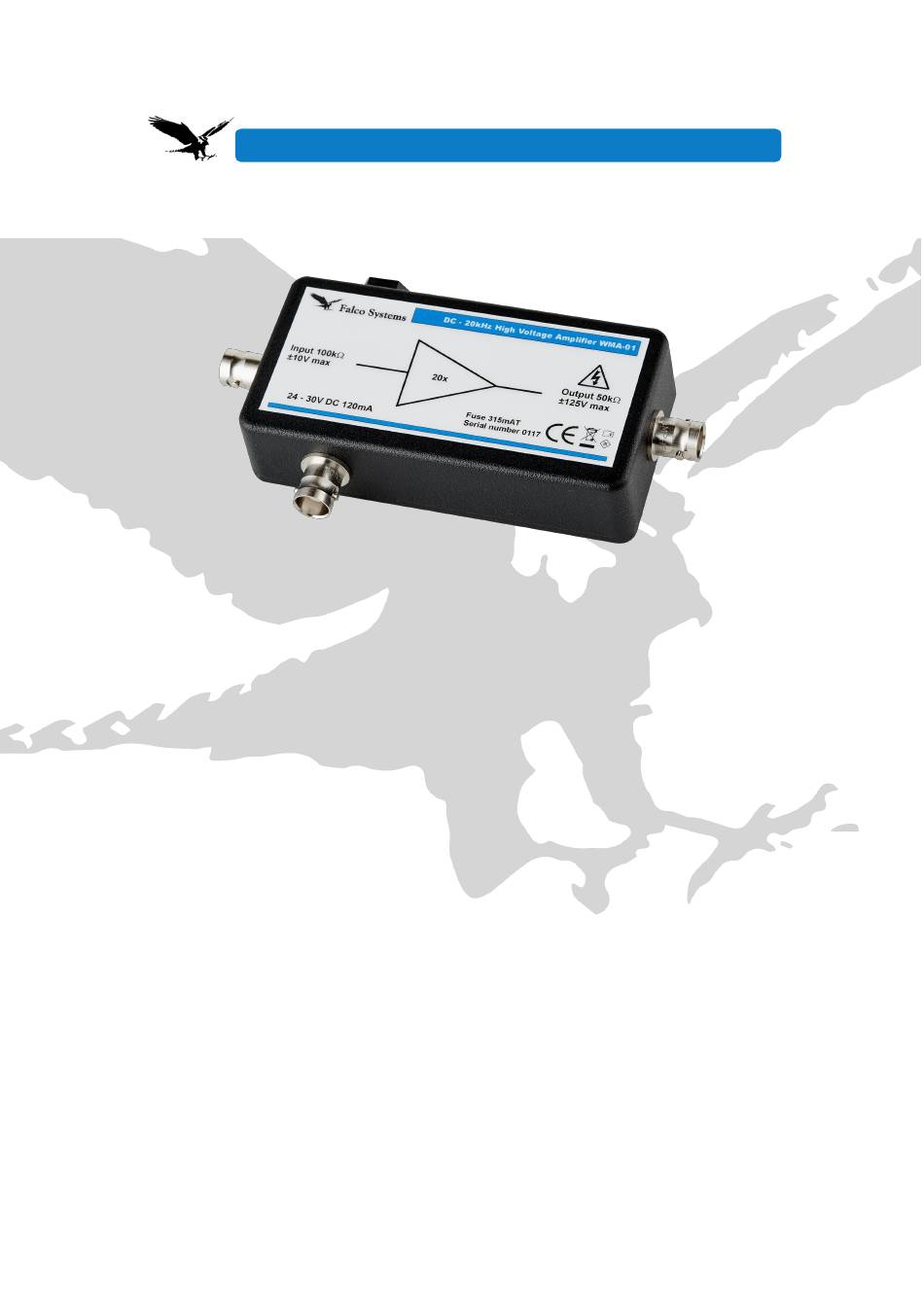

Falco Systems WMA-01 User Manual

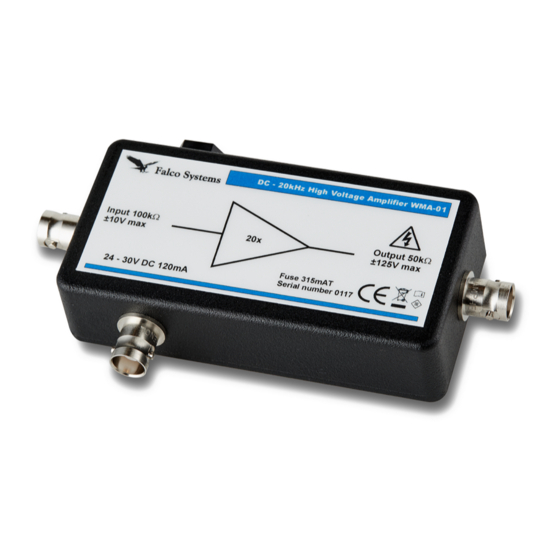

Falco Systems WMA-01
● High voltage: 20x amplification up to +125V and -125V output voltage
● DC to 20kHz large signal bandwidth and 50kΩ output resistance
● Power supply 24V DC, battery powered operation possible
● No overshoot with capacitive loads: bandwidth changes automatically
to ensure stability
● Short-circuit protected output
About this manual
This user manual is an integral part of the
Falco Systems WMA-01 and WMA-01LF
high voltage amplifier products. Please
read it carefully and pay attention to the
recommendations and instructions for safe
use.
The WMA-01 high voltage
amplifier: general description
The Falco Systems WMA-01 and WMA-
01LF are high voltage amplifiers that run
from an 24V DC power supply and can be
battery powered if required, e.g. for use in
a Faraday cage. Its internal high voltage
generator is inductor-free and hence does
not spread magnetic
sensitive experimental setups. Its large
High Voltage Amplifier DC – 20kHz
USER MANUAL
voltage range makes it an excellent choice
for
modulators, piezo actuator positioning
systems, beam steering components, and
many more.
The
response has a -3dB corner frequency at
20kHz. The input impedance is 100kΩ and
the output 50kΩ.
The output noise of the WMA-01 is
<3mVrms.
applications where bandwidth is not an
issue, the dedicated WMA-01LF version is
available. This amplifier contains an output
low pass filter capacitor which reduces the
bandwidth to 50Hz, but makes the noise
drop to 0.1mVrms. This bandwidth-limited
amplifier is ideal for MEMS or piezo
positioning
interference in
adjustment requiring extremely low noise.
use with MEMS devices,
amplifiers' full-power
For extremely
with manual
EO-
frequency
low noise
voltage
