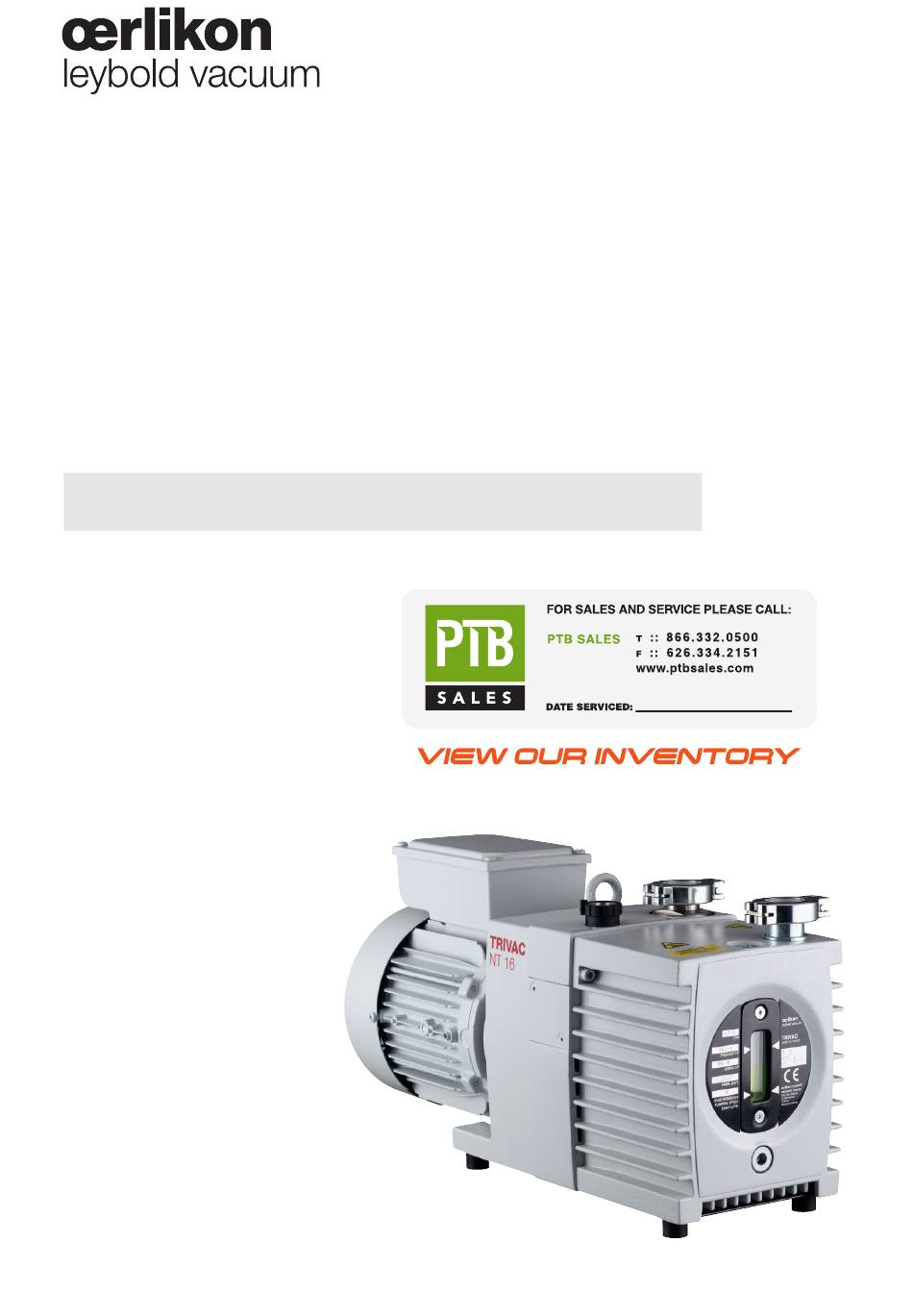

TRIVAC NT16 / NT25
Rotary Vane Vacuum Pump
Operating Instructions 130002780_002_A0
In the case of an attached explosion hazard rated motor (category 3 i/o), the information
provided in the enclosed Operating Instructions for the electric motor must be observed!
Part Numbers
140 220
140 330
140 221
140 331
140 222
140 332
140 223
140 333
140 334
140 224
140 335
140 225
140 336
140 226
140 337
140 227
140 338
140 231
140 339
140 232
140 340
140 233
140 341
140 234
140 346
140 235
140 241
140 347
®
Advertisement
Table of Contents
Related Manuals for Oerlikon Leybold Vacuum TRIVAC NT16
Summary of Contents for Oerlikon Leybold Vacuum TRIVAC NT16
- Page 1 ® TRIVAC NT16 / NT25 Rotary Vane Vacuum Pump Operating Instructions 130002780_002_A0 In the case of an attached explosion hazard rated motor (category 3 i/o), the information provided in the enclosed Operating Instructions for the electric motor must be observed!
-
Page 2: Table Of Contents
Contents Page Important Safety Information ATEX Directive and Flammable Gases Dilution TRIVAC B ATEX - Categories 3 i and 3 i/o Vacuum Pump Description Design and Function 1.1.1 Operating Agents Supplied Equipment Technical Data 1.3.1 Motor Related Data Ordering Data Accessories Transportation and Storage Installation... - Page 3 Maintenance Plan (Recommendation) Checking the Oil Oil Change Cleaning the Inlet Screen Checking the Coupling Replacing the Outer Shaft Seal Troubleshooting Wearing and Original Parts Waste Disposal EC Declaration of Conformity EC Manufacturer’s Declaration 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
- Page 4 Note provided within these Operating Instructions. The Oerlikon Leybold Vacuum TRIVAC NT 16 has been designed for safe and efficient operation when used properly and in accordance with these Operating Instructions. It is the responsibility of the user to carefully read and strictly observe all safety precautions described in this section and throughout the Operating Instructions.
-
Page 5: Important Safety Information
130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... - Page 6 I DOT 4: When swallowing the operating agent there is the danger of being poisoned. I DOT pumps are not suited for operation in explosion hazard areas or for pumping explosive substances. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
- Page 7 I Please note the change as to the ATEX temperature class in the case of PFPE pumps. Suitability is restricted to T3 (gases and vapours with an ignition temperature of over 200 °C). 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
-
Page 8: Atex Directive And Flammable Gases Dilution
I Prevent any atmospheric air from entering into the pump. I Use an inert gas to dilute the flammable gas being pumped; the concen- tration of flammable gas must not exceed 25% to 30% of the lower explosion limit. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... -
Page 9: Trivac B Atex - Categories 3 I And 3 I/O Vacuum Pump
Equipment belonging to this category ensures during normal operation the required degree of safety. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... - Page 10 Permissible ambient temperature operating pump 12 °C < Ta < 40 °C. Special operating conditions need to be complied with! The special conditions and notes provided in the Operating Instructions apply. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
- Page 11 If the pump has been approved for operation in areas with an explosive atmosphere, then motor and supplied accessories have the same classification as the pump. Motor and accessories need to be installed and used in agreement with the enclosed manufacturer’s information. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
- Page 12 In addition to the maintenance work described in the Operating Instructions every 15.000 operating hours or every three years a complete refurbishment of the pump including a replacement of the bearings and the couplings should be scheduled. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
-
Page 13: Description
(i.e. Zone 2). The same conditions apply to outside components of the pumps which have been certified. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... - Page 14 The oil-level glass is provided with prisms for better observation of the oil level. The pump module consists of assembly parts which are pin-fitted so as to allow easy disassembly and reassembly. The pump module can be easily removed without special tools. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
-
Page 15: Design And Function
TRIVAC NT through the exhaust port. During compression, a controlled amount of air - the so-called gas ballast - can be allowed to enter the pump chamber by opening the gas ballast valve 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... - Page 16 (1.4/6) against its seat. This effectively prevents backstreaming of oil. The anti-suckback valve (1.2/3) operates independently of the opera- ting mode of the pump, i.e. also with gas ballast. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
-
Page 17: Operating Agents
If mineral oil, PFPE and DOT come into contact they will emulsify. That’s why the pumps must only be run with the type of lubricant specified for the pump. If you want to change the type of lubricant Oerlikon Leybold Vacuum should do the change. -
Page 18: Supplied Equipment
TRIVAC NT pumps with single-phase AC motor are supplied with switch, built-in thermal motor protection switch and plug for the mains cable. For TRIVAC NT pumps with three-phase AC motor, the switch, motor protec- tion switch, mains cable etc. are not included. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... -
Page 19: Technical Data
25 KF 1) To DIN 28 400 ff We can only guarantee that the pump will meet its specifications when Note using the type of lubricant which has been specified by us. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... -
Page 20: Motor Related Data
When using other motors, these must be rated as follows: Pumping speed / m 16 / 25 16 / 25 Frequency / Hz Speed / min 1500 1800 Power / W 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... - Page 21 Fig. 1.5 Pumping speed characteristics of the TRIVAC NT 16 / NT 25 Type NT 16 25 KF NT 16 25 KF NT 25 25 KF NT 25 25 KF 1) Single-phase motor 2) Three-phase motor Fig. 1.6 Dimensional drawing; Dimensions in mm 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
-
Page 22: Ordering Data
200-240 V, 50/60 Hz; Schuko plug (Can also be used for 1-phase EU motor) 140 306 200-240 V, 50/60 Hz; Plug for United Kingdom (England) (Can also be used for 1-phase EU motor) 140 307 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... -
Page 23: Accessories
Use only together with the horizontal exhaust flange Use only together with the horizontal intake flange Can only be installed together with adapter 140 299 Can only be installed together with adapter 140 298 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... -
Page 24: Transportation And Storage
200 28 181 RCF-E 96 N, 1 l 200 39 839 Only use the kind of oil specified by Oerlikon Leybold Vacuum. Alternative types of oil are specified upon request. Transportation and Storage Pumps which are filled with operating agents must only be moved while Caution standing upright. -
Page 25: Installation
Max. tilt for the pump (without further attachment) with possibly fitted Caution standard accessories is 10° from the vertical. When installing the TRIVAC NT pump, make sure that the connections and controls are readily accessible. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... -
Page 26: Conforming Utilization
Regarding the suitability of the TRIVAC NT pumps for special appli- cations in which such gases, respectively substances shall be pumped, Oerlikon Leybold Vacuum should be consulted first. The pumps are not suited for pumping of liquids or media which carry large quantities of dust. - Page 27 Outside the pump due to motor, accessories Static electricity Possible, provided conducting parts of the pump are not connected to ground Chemical reactions Possible with the process liquid or the process gas 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
-
Page 28: Connection To The System
The intake line must be clean. Deposits in the intake line may outgas and adversely affect the vacuum. The connecting flanges must be clean and undamaged. The maximum throughput of the pump is equivalent to the pumping speed of the pump, see technical data. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... - Page 29 Never operate the pump with a sealed exhaust line. There is the danger of Warning injury. Before starting any work on the pump, the personnel must be informed about possible dangers first. All safety regulations must be observed. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
-
Page 30: Electrical Connections
The pump can be damaged if it is connected with a wrong voltage Caution setting. Pumps equipped with a single-phase AC motor may be connected directly to the mains via the mains cord and the mains plug. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... - Page 31 (e. g. a blank flange) is sucked on at the intake port. If not, interchange two phases of the connection. Observe the direction arrow on the coupling housing. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
-
Page 32: Operation
Prevent any atmospheric air from entering into the pump. Use an inert gas to dilute the flammable gas being pumped; the con- centration of flammable gas must not exceed 25% to 30% of the lower explosion limit. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... -
Page 33: Media Compatibility
Possible conse- quences can be a damaged or even burst open pump. Thus the exhaust line must be checked from time to time to ensure that there are no obstructions. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... -
Page 34: Operation
(if possible via a valve). Once all vapours have been pumped off from a process (e.g. during drying), the gas ballast valve can be closed to improve the attainable ultimate pres- sure. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... -
Page 35: Operating Temperature
Then drain the oil and add clean oil until the oil level is at the „max“ mark. Seal the connection ports. Special conservation or anti-corrosion oils aren’t necessary. Please also take note of the information given in Section 2 (Storing). 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... - Page 36 This applies equally to emergency cut-out arrangements. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
-
Page 37: Maintenance
Oerlikon Leybold Vacuum offers practical courses on the maintenance, repair, and testing of TRIVAC NT pumps. Further details are available on request. -
Page 38: Maintenance Plan (Recommendation)
I Exchange of all seals = Daily maintenance I Functional check 6m = Six monthly maintenance This check should be run by the Oerlikon = Annual maintenance Leybold Vacuum Service. n-a = Maintenance every n years 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... -
Page 39: Checking The Oil
When wanting to check the oil, switch off the pump first and drain out from the warm pump the required amount of oil through the oil drain (5.1/4) into a beaker or similar. Please note the safety information given in Section 5. Warning 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... -
Page 40: Oil Change
Further oil changes should be made before and after long-term storage of the pump. If the oil becomes contaminated too quickly, install a dust filter and/or oil filter (see Section 1.5). Contact us for more information in this matter. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... - Page 41 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
-
Page 42: Cleaning The Inlet Screen
Remove the coupling element (5.2/1). Remove the hex. socket screw (5.2/2) and the spring washer (5.2/3). Pull off the coupling (5.2/4). Remove the key (5.2/5). 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... - Page 43 Carefully push the O-ring (5.2/7) and the bushing (5.2/6) onto the shaft. Push the centering disk (5.2/1) with the shaft seal onto the shaft and up against the end plate; fasten it with the hex. socket screws (5.2/10). 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
- Page 44 Mount the pump-half of the coupling (5.2/4) on the shaft. Install the spring washer (5.2/3) and tighten the screw (5.2/2). Insert the coupling element (5.2/1) into the coupling and mount the motor. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
-
Page 45: Troubleshooting
1) Bubble test: The warm pump with degassed oil is running without gas ballast and the intake is blanked off. The exhaust line is led into a vessel with water. If an evenly spaced line of bubbles appears then the pump has an external leak. 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... - Page 46 (for at least 10 minutes). temperature or with a very high (Voltage too low). Ensure correct power supply current uptake (> 15 A). voltage (218-242 V). 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
-
Page 47: Wearing And Original Parts
EK110002775 (includes all necessary gaskets, no oil) Large maintenance kit EK110002776 (includes all necessary wearing parts and spare parts for major maintenance, no oil) Small parts kit EK110002777 Replacement pump module EK110002778 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... -
Page 48: Waste Disposal
Waste oil from vacuum pumps must not be mixed with other substances or materials. Waste oil from vacuum pumps (Oerlikon Leybold Vacuum oils which are based on mineral oils) which are subject to normal wear and which are con- taminated due to the influence of oxygen in the air, high temperatures or mechanical wear must be disposed of through the locally available waste oil disposal system. -
Page 49: Ec Declaration Of Conformity
130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... -
Page 50: Ec Manufacturer's Declaration
I / we hereby declare that the information supplied on this form is accurate and sufficient to judge any contamination level. Name of authorised person (block letters): ____________________________ Date _____________ Signatur of authorised person ___________________________ firm stamp 17200001_002_00 © Oerlikon Leybold Vacuum 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum... - Page 51 Note 130002780_002_A0 - 12/2008 - © Oerlikon Leybold Vacuum...
- Page 52 Sales and Service Germany Europe Asia Spain P.R. China Japan Belgium Oerlikon Leybold Vacuum GmbH Oerlikon Oerlikon Oerlikon Oerlikon Bonner Strasse 498 Leybold Vacuum Spain, S.A. Leybold Vacuum (Tianjin) Leybold Vacuum Leybold Vacuum Nederland B.V. D-50968 Cologne C/. Huelva, 7 International Trade Co.
