Instructions-Parts List
5 GAL. (20 LITER) STAINLESS STEEL (ASME) PRESSURE POT
™
AirPro
Air Spray Package
Fine-finish spray package for waterborne and solvent-based fluids. For professional use
only.
100 psi (0.7 MPa, 7.0 bar) Maximum Fluid Working Pressure
100 psi (0.7 MPa, 7.0 bar) Maximum Air Input Pressure
Model 237409, Series B
Complete package includes pressure pot,
AirPro air spray gun with 0.055 (1.4 mm) fluid nozzle
25 ft. (7.6 m) air and fluid hoses, and air and fluid controls.
Model 237413, Series A
Complete package includes pressure pot,
AirPro HVLP spray gun with 0.055 (1.4 mm) fluid nozzle
25 ft. (7.6 m) air and fluid hoses, and air and fluid controls.
Important Safety Instructions
Read all warnings and instructions in this man-
ual, and on the unit, including the power cord.
Save these instructions.
This manual provides basic safety, installation
and operation information for the package. For
your safety, also read the component manuals
supplied with this package before operating it.
308455M
Model 237409 shown
EN
ti0751b
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco AirPro 237413 A Series
Summary of Contents for Graco AirPro 237413 A Series

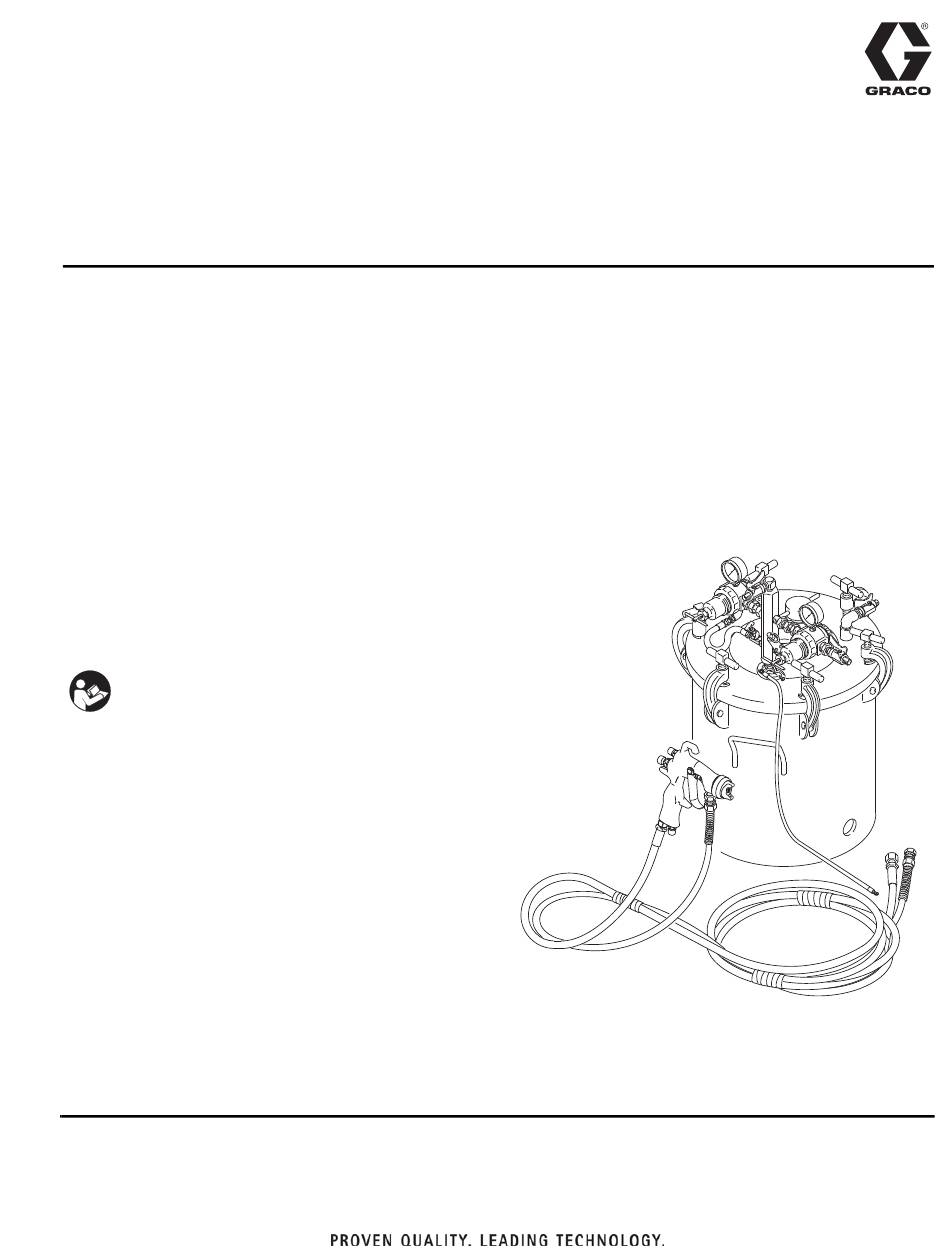

- Page 1 Instructions-Parts List 5 GAL. (20 LITER) STAINLESS STEEL (ASME) PRESSURE POT 308455M ™ AirPro Air Spray Package Fine-finish spray package for waterborne and solvent-based fluids. For professional use only. 100 psi (0.7 MPa, 7.0 bar) Maximum Fluid Working Pressure 100 psi (0.7 MPa, 7.0 bar) Maximum Air Input Pressure Model 237409, Series B Complete package includes pressure pot, AirPro air spray gun with 0.055 (1.4 mm) fluid nozzle...
-
Page 2: Table Of Contents
Notes ........19 Graco Standard Warranty ....20... -
Page 3: Warnings
Handle and route hoses and tubes carefully. Keep the hoses and tubes away from moving parts and hot surfaces. Do not use the hoses to pull equipment. Do not expose Graco hoses to temperatures above 180°F (82°C) or below -40°F (-40°C). - Page 4 Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces. • Do not kink or over bend hoses or use hoses to pull equipment. • Do not expose Graco hoses to temperatures above 180°F (82°C) or below -40°F (-40°C). • Keep children and animals away from work area. •...
-
Page 5: Setup
Setup Setup NOTICE This equipment is compatible with most water-based materials. See the wetted parts in the Technical Data section and your fluid and solvent manufacturer’s compatibility information. Prepare the operator All persons who operate the system should be trained in the safe, efficient operation of all system components as well as the proper handling of the chemical coating. -
Page 6: Component Identification
Setup Component Identification Components you must supply: Bleed-type master air valve Required for pump; order part no. 110223, 1/4” npt(f) Air filter. Order part no. 110146, 1/4 npt(f) Air supply line Air line moisture trap Components supplied with package: Pressure relief valve Air relief valve Ground wire Gun air shutoff valve... -
Page 7: Unpack The System
Setup Unpack the system Ground the system 1. In addition to the assembled unit, these components are packed loosely or separately: hose set, gun, instruction manuals. These are the manuals you should receive: The equipment must be grounded to reduce the risk of static sparking. -
Page 8: System Component Information
System Component Information System Component Information How to use the AirPro gun 6. Clean and lubricate the gun as instructed in your separate gun manual. See F 1. Make all fluid and air adjustments at the pressure pot for maximum efficiency. See How to adjust the air regulators, page 9. -
Page 9: How To Adjust The Air Regulators
System Component Information How to adjust the air regulators See F Air Regulator with Adjustment Knob Model 237413 only 1. Always open air regulators slowly to prevent surging during startup. Pull out the adjustment knob (33), and turn the knob in (clockwise) to open the air regulator;... -
Page 10: Operation
Operation Operation Pressure Relief Procedure 2. Open the air relief valve (7) by turning it counter clockwise. Leave it open until you reinstall the pres- sure pot cover (torque c-clamp to 8-10 ft-lbs) or fill port. This equipment stays pressurized until pressure is manually relieved. -
Page 11: Flush The Pressure Pot Before The First Use
Operation Flush the pressure pot before To determine the fluid pressure setting, hold the gun parallel to the floor. (Be sure to catch the fluid in a the first use container.) With the gun air pressure turned off, trig- ger the gun. Adjust the pressure pot regulator (33) Flush with a solvent compatible to your fluid. -
Page 12: System Shutdown
Operation 4. Open the fan pattern adjusting valve (E) by turning it Flushing fully counterclockwise, then turn it in 1 to 2 turns. See F . 8. When to flush • Before the first time use • When changing colors •... - Page 13 Operation 14. Open the tank and clean the inside of the tank and 15. You are now ready to prime the system with another its suction tube. fluid or to store the system. Relieve pressure if you are storing the system. Bleed-type master air valve Pressure relief valve Air relief valve...
-
Page 14: Parts
Parts Parts Model 237409, Series B Includes items 1 to 44 27b, 27c Torque to 8-10 ft-lbs ti0748b... - Page 15 100139 PLUG, pipe, headless,1/8-27 npt 103473 WIRE TIE STRAP 210575 CAP, filler 21 290044 LABEL, identification Use only Genuine Graco Parts and Accessories. 188784 NUT, jam, hex, 1-1/2-12-unf-2b, Keep these spare parts on hand to reduce down 23 175078 LABEL, Warning, not shown time.
-
Page 16: Model 237413, Series A
Parts Model 237413, Series A Includes items 1 to 44 27b, 27c Torque to 8-10 ft-lbs ti0849b... - Page 17 18 237533 BALL VALVE, 3/8-18 npsm(m x f), 103473 WIRE TIE STRAP See 307068 for parts 100139 PLUG, pipe, headless,1/8-27 npt Use only Genuine Graco Parts and Accessories. 210575 CAP, filler 21 290044 LABEL, identification Keep these spare parts on hand to reduce down 188784 NUT, jam, hex, 1-1/2-12-unf-2b, time.
-
Page 18: Technical Data
Technical Data Technical Data Metric Maximum Fluid Working Pressure 100 psi 0.7 MPa, 7 bar Maximum Air Working Pressure 100 psi 0.7 MPa, 7 bar Gun Air Consumption See manual 312414 Actual Pot Capacity 33 liter 8.8 U.S. gallon Wetted Parts Pressure pot 304/316 stainless steel ASME, Santoprene ®... -
Page 19: Notes
Notes Notes... -
Page 20: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
