Cart-mounted air-assisted airless package, 17:1 ratio, 33:1 and 41:1 ratio carbon steel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
17: 1 RATIO SENATOR , 33:1 AND 41:1 RATIO BULLDOG CARBON STEEL
Cart-Mounted Air-Assisted
Airless Package
Refer to page 2 for a List of Models.

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
2
2
5
8
12
18
19
. . . . . . . . . . . . . . . .
20
. . . . . . . . . . . . . . . .
20
COPYRIGHT 1995, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
308-472
Rev. B
Supersedes A

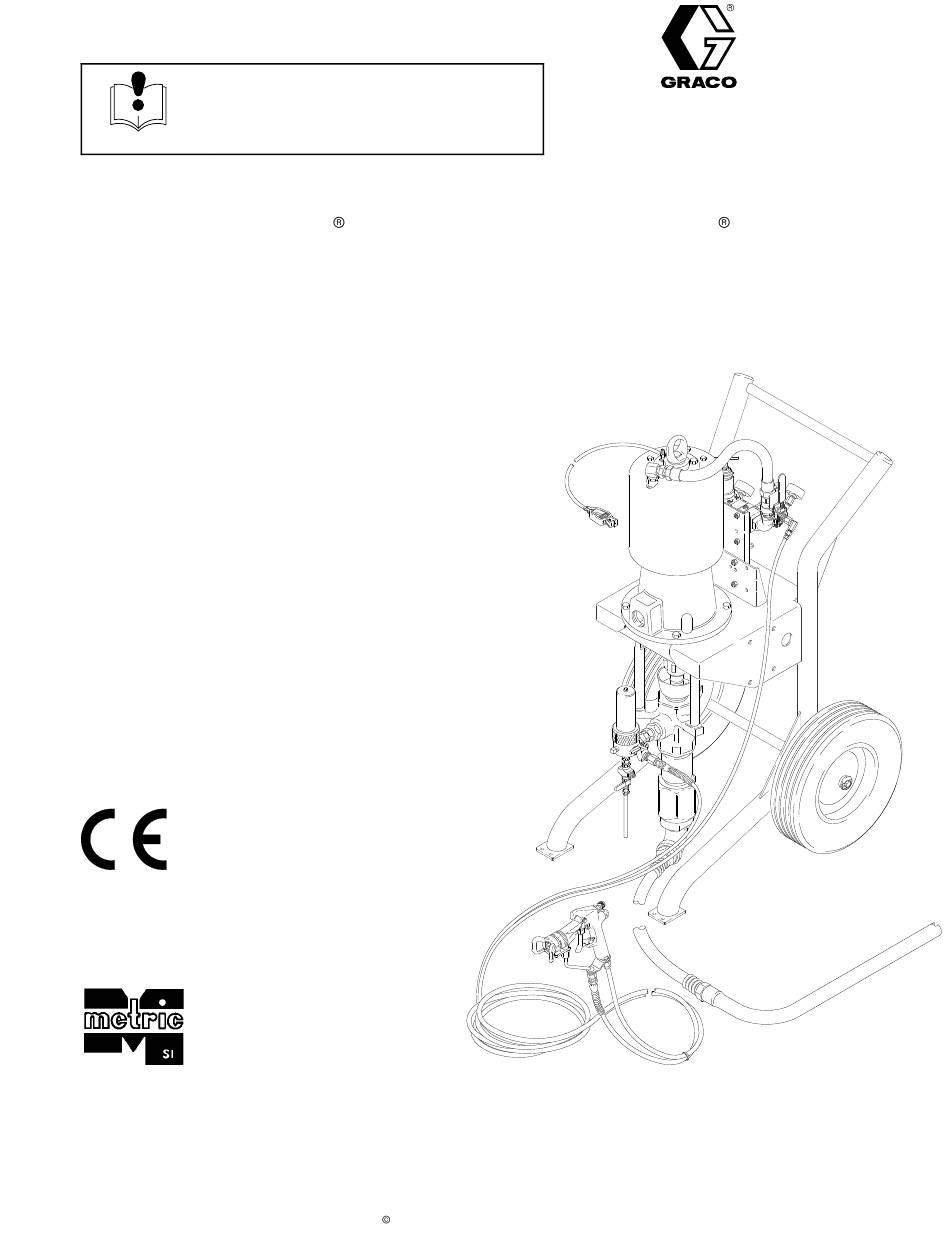

Model 237-294 Shown
04936A
