KB Electronics KBBC Series Operating Instructions

Advertisement

Quick Links

"The Right Control for Your Application."
KB Electronics, Inc.
Notes: 1. If Key Switch is not used, a connection must be made between the red wire of Connector P1 (Terminal 3) and quick-connect
Terminal B+ for the control to operate. 2. To reset the control in wig-wag mode, return the Main Speed Potentiometer to the center position.
3. Run Forward and Run Reverse Switches are not used in wig-wag operation. 4. If wiring a fuse or circuit breaker, it must be wired in the
location shown, immediately after the battery positive (+) terminal. The Key Switch must be wired after the fuse or circuit breaker.
(A40140) – Rev. A00 – 6/10/2014
KBBC SERIES OPERATING INSTRUCTIONS
FIGURE 1

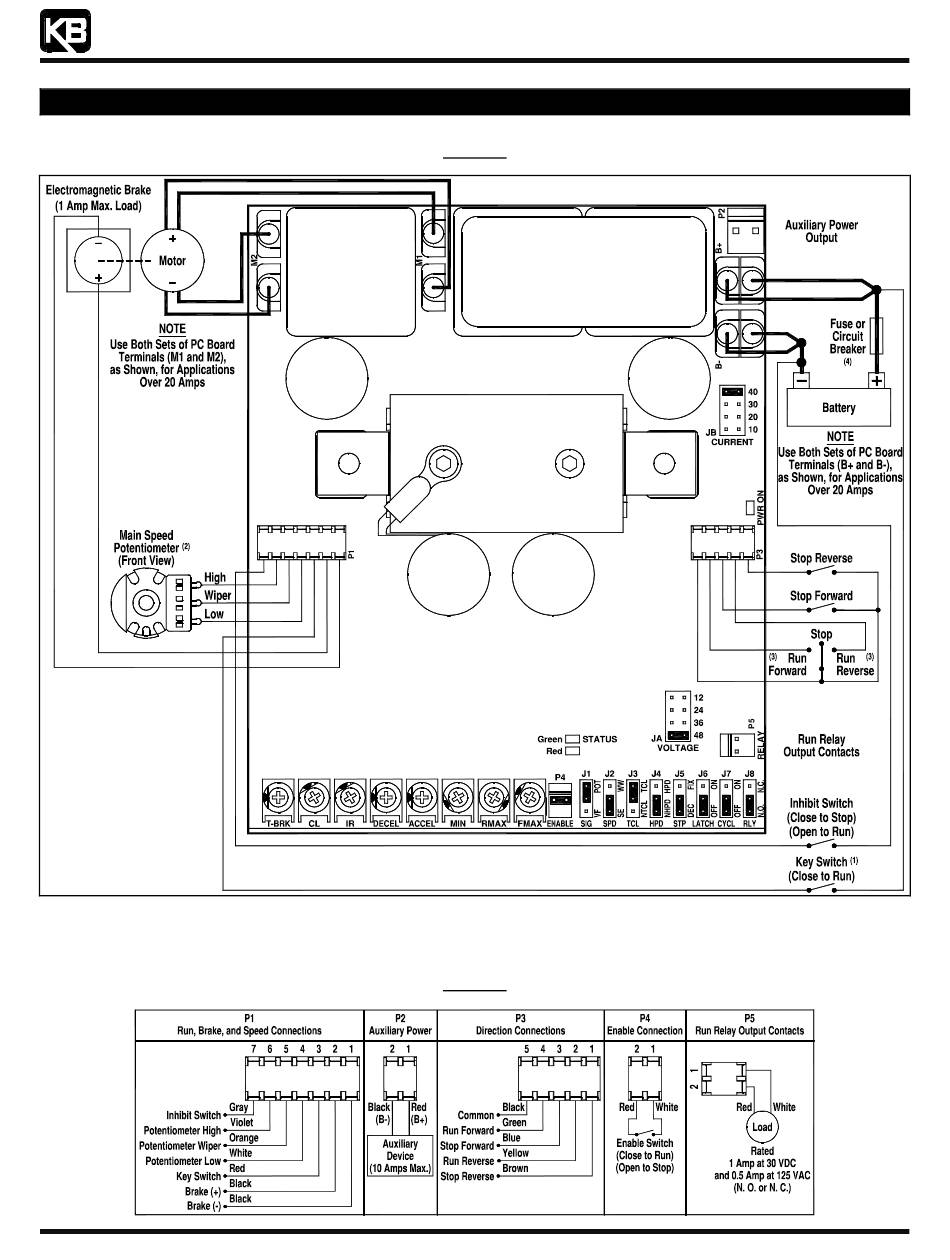

CONTROL LAYOUT AND GENERAL CONNECTION DIAGRAM

FIGURE 2

DESCRIPTION AND WIRING OF CONNECTORS

12095 NW 39 Street, Coral Springs, FL 33065-2516
Telephone: 954-346-4900; Fax: 954-346-3377
www.kbelectronics.com
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KBBC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KB Electronics KBBC Series

  • Page 1 Telephone: 954-346-4900; Fax: 954-346-3377 KB Electronics, Inc. www.kbelectronics.com KBBC SERIES OPERATING INSTRUCTIONS FIGURE 1 CONTROL LAYOUT AND GENERAL CONNECTION DIAGRAM Notes: 1. If Key Switch is not used, a connection must be made between the red wire of Connector P1 (Terminal 3) and quick-connect Terminal B+ for the control to operate.
  • Page 2 12095 NW 39 Street, Coral Springs, FL 33065-2516 "The Right Control for Your Application." Telephone: 954-346-4900; Fax: 954-346-3377 KB Electronics, Inc. www.kbelectronics.com KBBC SERIES OPERATING INSTRUCTIONS TABLE 1 ADJUSTABLE TRIMPOTS Trimpot Range Description Timed Brake Delay (T-BRK): Allows adjustment of the delay time before the brake engages after the control is put into the stop or brake mode.
  • Page 3 12095 NW 39 Street, Coral Springs, FL 33065-2516 "The Right Control for Your Application." Telephone: 954-346-4900; Fax: 954-346-3377 KB Electronics, Inc. www.kbelectronics.com KBBC SERIES OPERATING INSTRUCTIONS TABLE 4 LED STATUS INDICATORS Control Status Green LED Red LED Flash Rate* Slow...
  • Page 4 12095 NW 39 Street, Coral Springs, FL 33065-2516 "The Right Control for Your Application." Telephone: 954-346-4900; Fax: 954-346-3377 KB Electronics, Inc. www.kbelectronics.com KBBC SERIES OPERATING INSTRUCTIONS FIGURE 3 SIGNAL INPUT CONNECTION DIAGRAMS (CONNECTOR P1) TABLE 6 WITH JUMPER J1 SETTINGS...
  • Page 5 RECONDITIONING THE BUS CAPACITORS If this drive has been in storage for over one year it is necessary to recondition the power supply bus capacitors. To recondition the bus capacitors, apply the DC input voltage, with the drive in the Stop Mode, for a minimum of one hour.
