Configuring XStream-PKG Serial RF Modems for Serial Bridging

1. Configure two XStream-PKG RF modems for serial bridging.

Objective: Configure two XStream-PKG Serial RF modems to build a serial bridge between two

terminals or between a terminal and a device

XCTU

PuTTy or any Terminal application

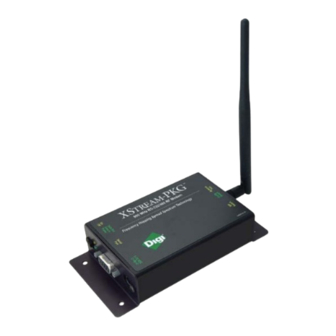

XStream-PKG RS-232/485 RF Modem x 2

In our example, we will connect a terminal application running on a computer on each XStream modems

and send data through the bridge.

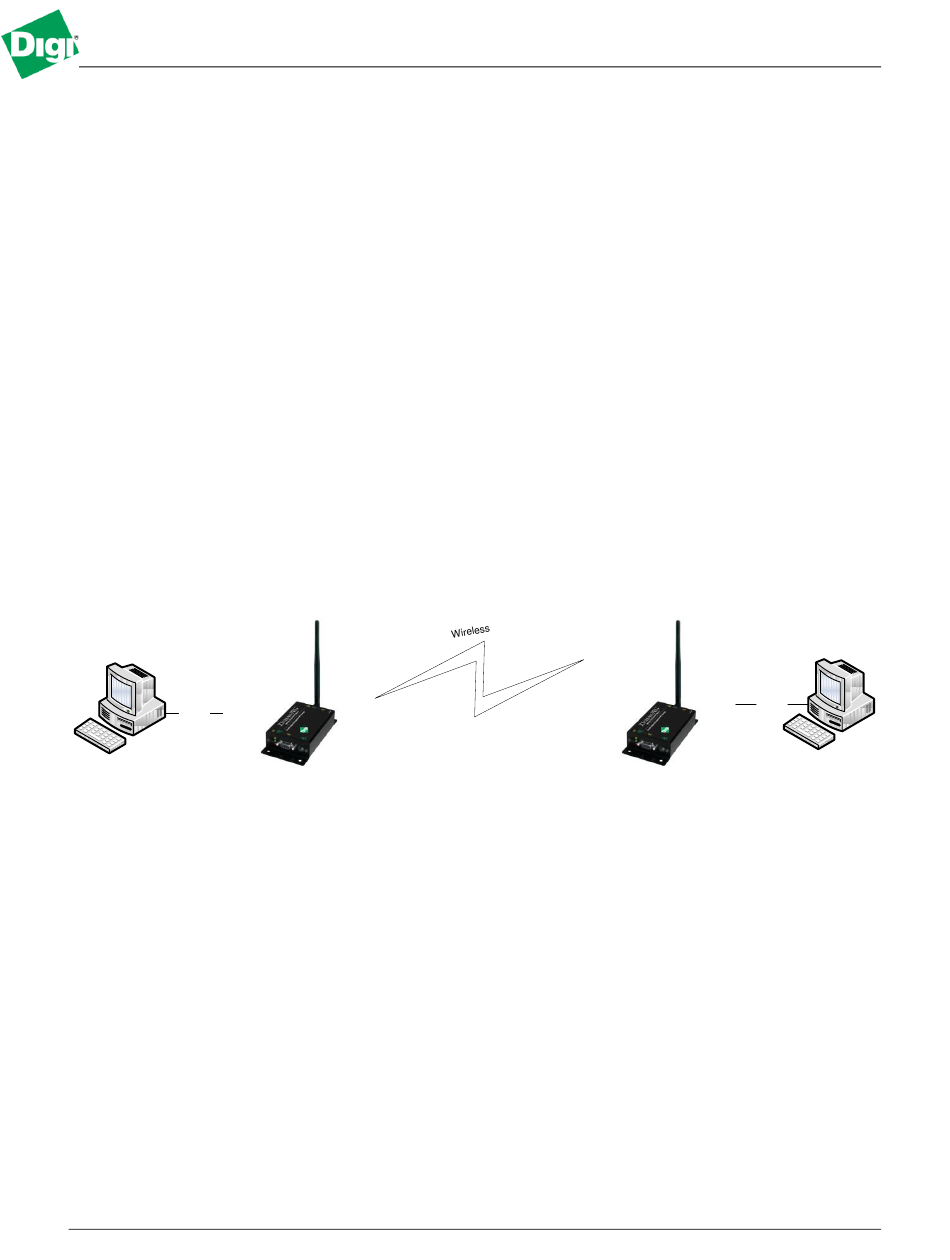

3. Sample diagram.

RS232

Terminal

Local

March 2012 v.1

Digi Application Guide

Digi International

RS232

Terminal

Remote
