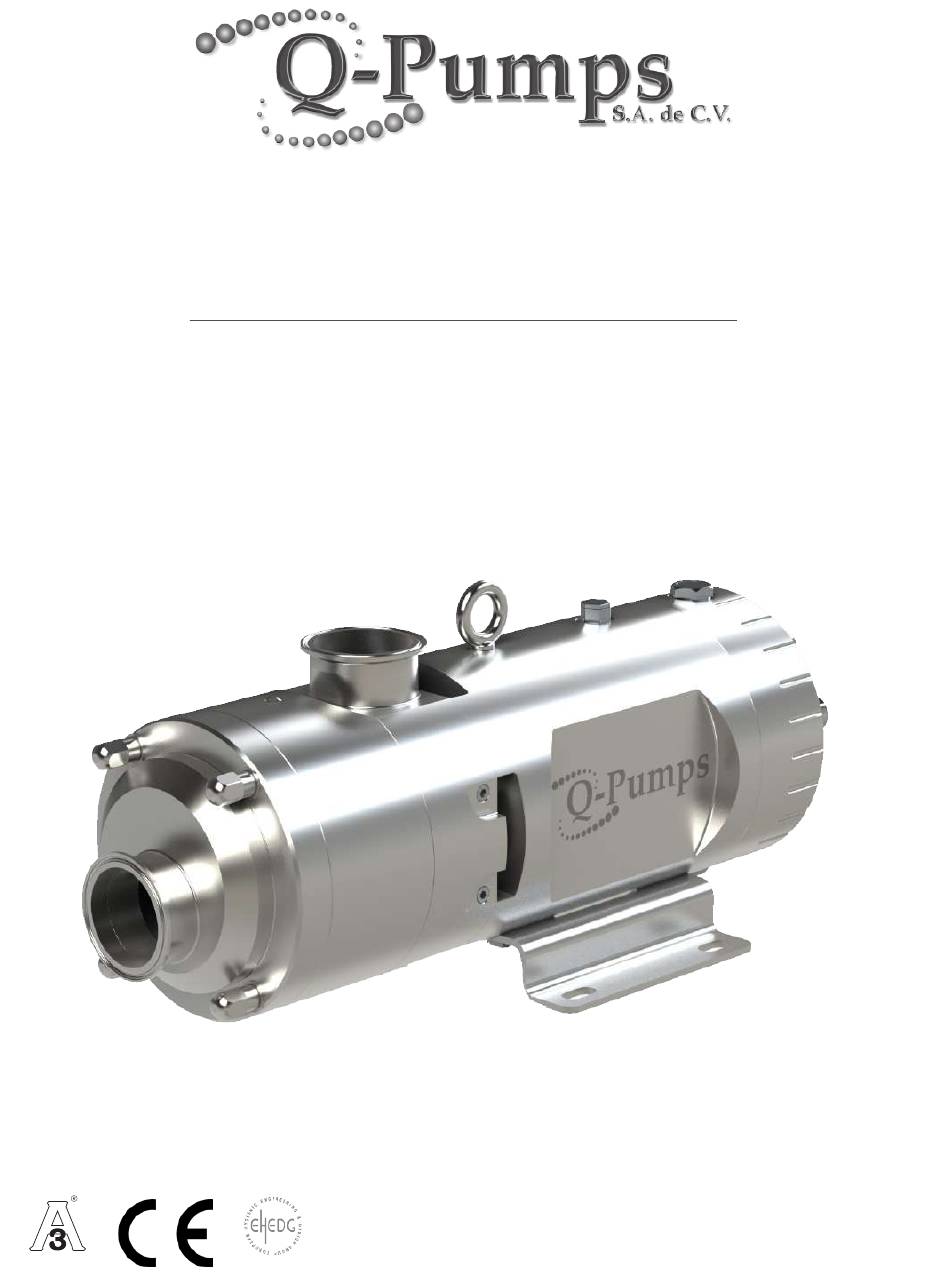

Operation and Maintenance Manual of Positive Displacement Pump Q T S S e r i e s T w i n S c r e w P u m p QTS-M04 www.qpu mps .c om su p p o r t@qp u mps.c o m 02-11 Affiliated...
Q-Pumps S.A. de C.V. Warranty Q-Pumps guarantees that all manufactured and sold products are free from defects in materials and manufacture for a period of one (1) year from the date of shipment. The warranty does not apply to products which require repair or replacement due to what is considered normal wear.
Maintenance section. Following these guidelines will grant a long pump service life under a proper use and installed in a properly designed system. If necessary to return the equipment under warranty, or for some other reason, contact Q-Pumps to receive a Return Material Authorization (RMA).
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump SA FE T Y IMPORTANT: Read and understand this manual before installation, operation or maintenance of the pump. Installation, operation and maintenance in combination with inappropriate unsafe practices can cause serious individual risks or death, damage to the environment and the pump itself.
Moving Parts The principal operation of the QTS Series is by the turning of a pair of synchronized rotors which can trap any foreign object and get stuck due to an invalid equipment operation. Never operate the pump without the front cover properly in place.
Page 7
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump Use proper equipment such as elevators or cranes together with slings or straps with the right capacity to lift the total weight. Take precautions and follow the manufacturer recommendations to use the slings or straps.
QTS Series Twin Screw Positive Displacement Pump K NOW YOUR PUM P Congratulations! You’ve acquired a high technology and quality equipment for your sanitary pumping solutions. QTS Series is the best solution toward other brands in the market due to its special characteristics: •...
Page 9
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump Data Sheet Data Sheet Customer: Example Model QTS 203 Operating Conditions Certification 3A / EHEDG Capacity 60 gpm Screw material AISI 316L Diff. pressure 50 psi Housing material AISI 316L...
10. Gear case cover Pump Arrangements Assemblies The QTS series pumps can be delivered coupled to a drive element in different ways to solve one specific application. They can be ordered and delivered as follows: Pump Only. In this case the pump is supplied with a drive shaft for coupling, does not include motor/gear-motor, coupling or base.
The design of QTS rotors (twin screws) in addition to the clearances kept with the casing, allow pumping high viscosity fluids without the risk of contact between them. The secret of the correct operation of the pump it’s on the proper rotor synchronization. Please contact Q-Pumps to discuss this topic.
QTS Series Twin Screw Positive Displacement Pump BASE ALIGNMENT Pump / base assemblies are aligned in Q-Pumps factory prior to shipment. However assembles must be checked prior operation to avoid any misalignment. Misalignment may cause unneces- sary wear and shorten the life of the pump. You can notice misalignment with excess noise and vibrations.
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump PUM P OPE R ATION Follow these steps for the proper operation of your pump before, during and after starting it up. Remember that the correct operation of the pump ensures proper performance and long service life.
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump M A I NTE N A NCE : Pu m p A s s e m b l y a n d D i s a s s e m b l y To assemble and disassemble the pump, follow the recommendations described ahead.
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump Bill of Materials Please use this table and diagram to identify every component to be assembled. Bill of Materials: 1 Front cover 19 Synchronization ring 37 Front bearing 2 Left rotor...
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump Be sure to read and understand the Safety section of this manual before servicing your pump. De-energize the unit and lock out the mechanism. Handle all wet parts with caution; prevent harsh contact or scratches and always place them on a clean surface to avoid damage.
Page 18
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump right side rotor (3) and just loosen the torque of the second nut. Slowly loosen simultaneously the two rotor nuts until both are out. 5. The objective to loosen both nuts slowly will allow taking the rotors out uniformly along the shafts with no contact between each other.
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump Mechanical Seals Replacement 1. Here is a description of the procedures for inspection and replacement of the mechanical seals. Every pump has two mechanical seals. 2. Single mechanical seal kit: it contains components 12A to 12J.
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump Uninstalling the Single Mechanical Seals 1. Remove with your hands the stainless steel rotary holder subassembly (12B-F) by grabbing and pulling out from the rotating face (12F). When pulling, the static face (12G) might come along.
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump Installing the Single Mechanical Seals 1. You do not require special tools to install the mechanical seals, use your hands to assemble the components. 2. Place the dowel pins (25) on the gear case, slide them smoothly, if you find difficulties stop and check the surface finish of the pins and the drills on the gear case;...
Page 22
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump 7. Repeat this procedure with the next housing. 8. Take the back cover (with the seal housing inside) and carefully slide along the studs and DRAG PIN shafts pushing it to the back until making contact with the gear case;...
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump 14. With the subassembly ready, insert the rotary holder on the shaft and push smoothly until it reaches the static face placed previously on the back cover. Repeat this procedure to install the other single mechanical seal on the next shaft.
Page 24
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump 6. Loosen the hexagonal socket head cap screws (28) that fix the back cover to the gear case (6) and extract it through the studs. The back cover is centered by dowel pins (25), this pins can come out with the back cover or stay in the gear case.
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump Installing the Double Mechanical Seals 1. You do not require special tools to install the mechanical seals, use your hands to place the components into the assembly. 2. Place the dowel pins (25) on the gear case, slide them smoothly, if you find difficulties stop and check the surface finish of the pins and the drills on the gear case;...
Page 26
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump 10. Place the O-ring (12N) on the static face of the secondary seal (12P) and insert it on the seal housing (12L); match the notches with the pins on it.
Page 27
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump 15. This step is crucial for the right assembly of the double mechanical seal, failure to do so properly can cause damage to the pump. 16. Take the back cover (with the seal housing inside) and carefully slide thru the studs and shafts pushing it to the back until making contact with the secondary rotating face (12Q) ;...
Page 28
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump 20. Take the rotating face (12F) and insert it into the O-ring; the holder pins must fit the notches on the rotating face. Push with your hand against the holder until the springs are compressed and the rotating component stay inside the holder.
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump Rotor Assembly 1. Make sure the mechanical seals are properly installed before assembling the rotors. If the studs (14) were removed place them back. Insert firmly the gasket (27) on the back cover groove.
Page 30
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump 9. Using thickness gages, check the clearances between the rotors turning them slowly and introducing one gage at every point where the rotors are meshed. A practical way is to put the gage between the rotors in the front side and slowly rotate them so the gage moves along the rotors by its rotation.
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump Rotor Synchronization 1. Once the pump is disassembled, proceed to drain the oil in the gearbox. Use the cap nut (51) on the bottom of the gear case cover (10). If the oil is in good condition, keep it in a closed reservoir in order to avoid contamination.
Page 32
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump 5. To loosen the tapered driven ring (20) it is necessary to use three of the socket head cap screw (46) to push it out as illustrated. The first tapered driven ring has three threads for this purpose.
Page 33
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump 11. At this point the shafts can move independently. Insert a thickness gage at both flanks between rotors to synchronize them. View the thickness gage table. 12. On the back of the pump, align the tapered rings together.
Page 34
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump 15. At this point gears are locked, rotors are synchronized and you can remove the MARK THE ROTOR thickness gages. 16. Undo the rotor nuts (11) and mark the...
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump Important Notes 1. Use a six points female socket preferably to loosen and tighten the front cover nuts to prevent marking them. 2. The wet parts comprises the front cover (1), rotor nut (11), rotors (2,3), pump casing (4), mechanical seals (12) and the back cover (5).
Page 36
18. Rotors are inside the casing and their front faces must be aligned. 19. Use the torque values (according to the pump model) on the components that are indicated. 20. If you need any advice to assembly and/or disassembly, please contact Q-Pumps. QTS-M04...
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump RISKS TO CONSIDER Risk Description Considerations Possible only if guards are not Ensure that guards are installed. installed, or if pump is running with Do not open the pump while piping disconnected.
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump TROUBLESHOOTING Symptom Cause Solution Pump is not running Drive motor is not running Check connection or VFD configuration. Check synchronization. Resynchronize if Rotors are in contact necessary. Inspect and replace if necessary.
QTS Series Twin Screw Positive Displacement Pump A N N E X A Cleaning guidelines for CIP (Clean In Place) systems with QTS Series At the end of each production run, it is important to ensure the maximum recovery of pumped product residues.
Page 40
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump Here is shown a general but effective cleaning process guideline, a typical cleaning cycle incorporating five stages that are as follows: 1. An initial rinse of clean, cold water.
Page 41
The sterilization can be carried out by means of chemicals, hot water or steam. In the dairy industry the sterilization temperature is approximately 145 °C (293 °F). Contact Q-Pumps in case of temperatures above 100 ºC (212 ºF).
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump A N N E X B Nut-and-Locknut Technique The nut-and-locknut technique serves to prevent a nut from loosening by superimposing another nut. Thus it is possible to use as a fastening device.
Page 43
Operation and Maintenance Manual QTS Series Twin Screw Positive Displacement Pump QTS-M04...
Page 44
Operation and Maintenance Manual Positive Displacement Pump QTS Series Twin Screw Pump Acceso “A” #103, Fraccionamiento Industrial Jurica, Querétaro, Qro., México. C.P. 76130 Call: +52 (442) 218 4570 / 218 7400 Fax: +52 (442) 218 4577 support@qpumps.com w w w. q p u m p s . c o m...
