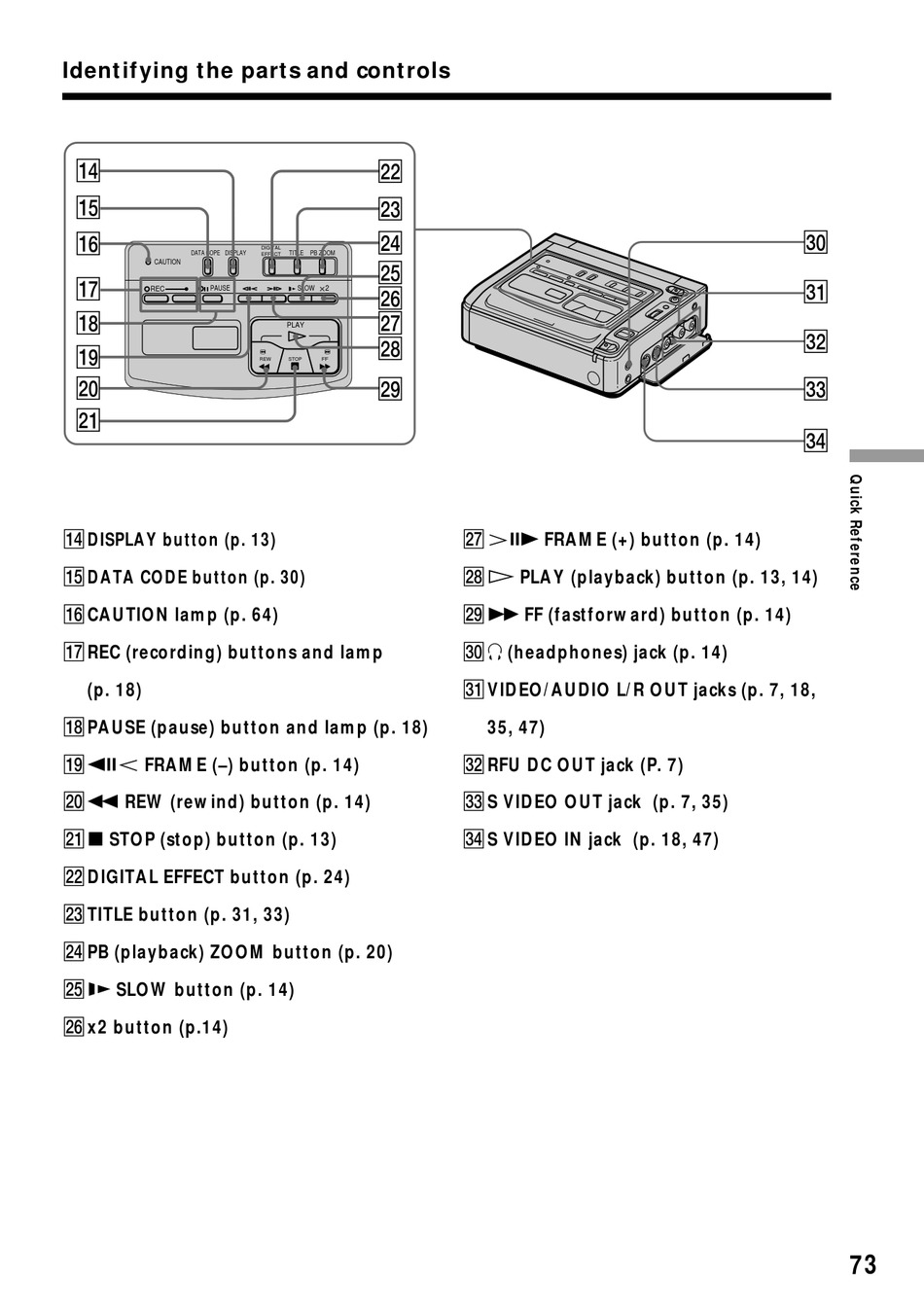

Identifying the parts and controls
qf
qg
qh
DATA COPE DISPLAY
CAUTION
qj
REC PAUSE
qk
ql
w;
wa
qf
DISPLAY button (p. 13)
qg DATA CODE button (p. 30)
qh CAUTION lamp (p. 64)
qj REC (recording) buttons and lamp
(p. 18)
qk PAUSE (pause) button and lamp (p. 18)
FRAME (–) button (p. 14)
ql c
w; m REW (rewind) button (p. 14)
wa x STOP (stop) button (p. 13)
ws DIGITAL EFFECT button (p. 24)
wd TITLE button (p. 31, 33)
wf PB (playback) ZOOM button (p. 20)
wg y SLOW button (p. 14)
wh x2 button (p.14)
ws
wd
wf
DIGITAL
TITLE PB ZOOM
EFFECT
wg
SLOW 2
wh
wj
PLAY
wk
REW STOP FF
wl
wj C FRAME (+) button (p. 14)
wk H PLAY (playback) button (p. 13, 14)
wl M FF (fastforward) button (p. 14)
e; i (headphones) jack (p. 14)
ea VIDEO/AUDIO L/R OUT jacks (p. 7, 18,
35, 47)
es RFU DC OUT jack (P. 7)
ed S VIDEO OUT jack (p. 7, 35)
ef S VIDEO IN jack (p. 18, 47)
e;
ea
es
ed
ef
