- Page 1 WAC 7 User Manual Version1.1...
- Page 2 This document contains essential information on the use of the system. Read this document carefully to become familiar with the system. Please check the WORK PRO website regularly to download the latest version of the document and software updates: https://www.workpro.es/ WAC 7 www.workpro.es...
-
Page 3: Table Of Contents
WAC 7 USER MANUAL VERSION 1.1 CONTENT 1. INTRODUCTION ..........................3 2. TECHNICAL DATA ..........................3 3. DEVICE DESCRIPTION ........................4 Frontal view ..........................4 Rear view ........................... 4 4. DEVICE CONFIGURATION ........................5 5. MOUNTING ............................6 6. ACCESSORIES ............................. 7 WAC 7 www.workpro.es... -
Page 4: Introduction

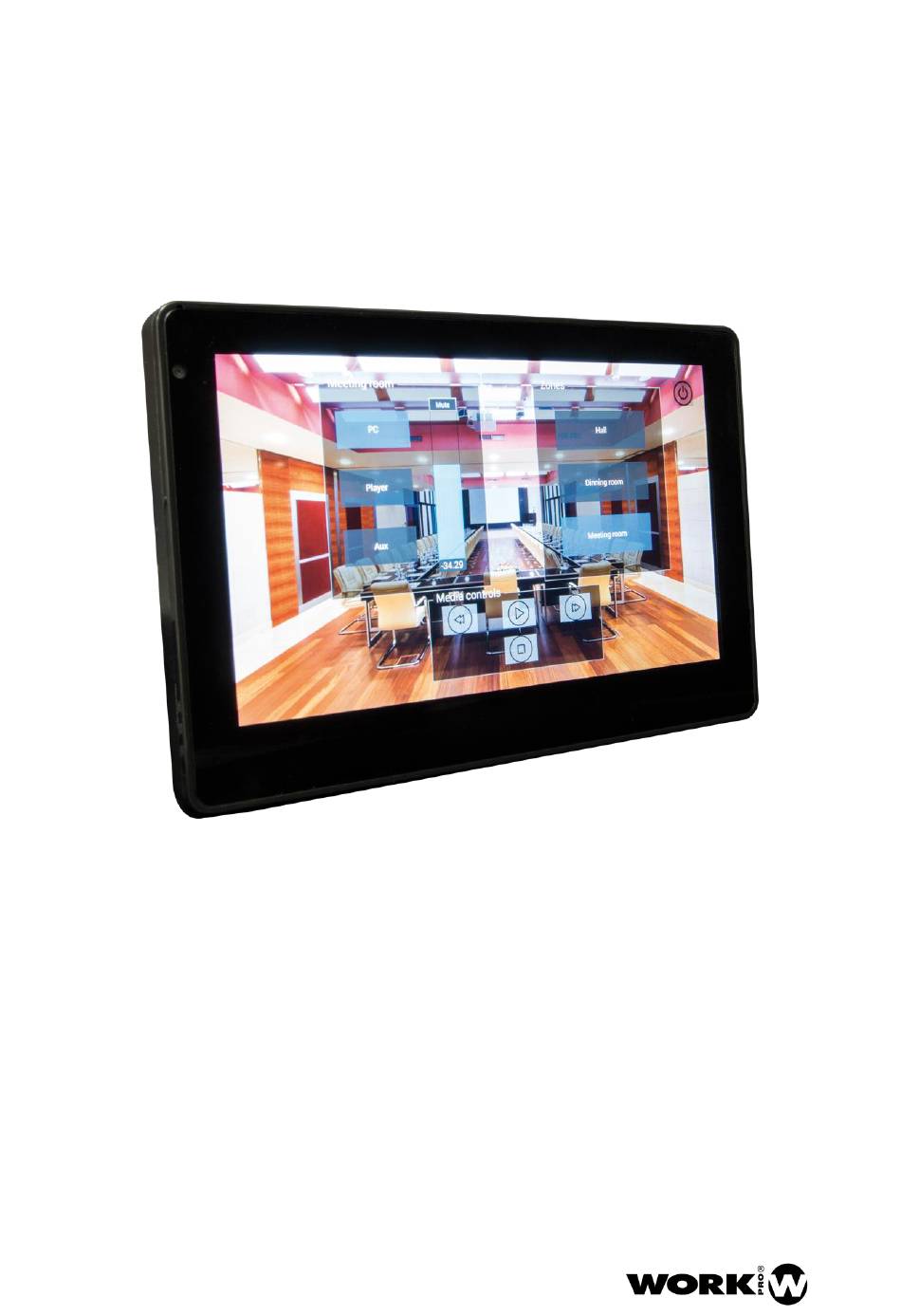

VERSION 1.1 1. INTRODUCTION WAC 7 is a wall-mount touch controller, in which you can load layouts generated by WorkCAD3 Editor. Through these layouts, you can control all those WORK PRO devices that accept OSC control commands, such as the BlueLine digital MKII series devices and many of the devices in the LightMouse series. -
Page 5: Device Description
WAC 7 USER MANUAL VERSION 1.1 3. DEVICE DESCRIPTION Frontal view 1. Screen. Touch screen for the visualization and use of layouts. Rear view 2. Main supply input. 9/24 Vdc. (1A minimum). 3. LAN port. Connection port to the local network, RJ45. It allows PoE power (Class 0 802.3af). -
Page 6: Device Configuration
Disable layout Selection. It allows to disable the layout selection menu on the device, avoiding that the end user can change the layout. Keep Backlight On. It allows the WAC 7 screen to never turn off. Refresh. Button to refresh the field dedicated to layouts saved on the device. -
Page 7: Mounting
USER MANUAL VERSION 1.1 Send Layout To Device. Button to send a layout saved in the PC to the WAC 7. This layout will be auto executed. Receive a Layout From Device. Button to receive, on the PC, a layout stored in the WAC 7. -
Page 8: Accessories
6. ACCESSORIES Use the included frame to fix the WAC 7 to a wall using the fixation points. WAC 7 includes 2 plates in order to fix it and to place the device in a desktop position. WAC 7 www.workpro.es... - Page 9 WAC 7 USER MANUAL VERSION 1.1 WAC 7 www.workpro.es...
