- Page 1 WAC 7 User Manual Version1.2...
- Page 2 This document contains essential information on the use of the system. Read this document carefully to become familiar with the system. Please check the WORK PRO website regularly to download the latest version of the document and software updates: https://www.workpro.es/ WAC 7 www.workpro.es...
-
Page 3: Table Of Contents
WAC 7 USER MANUAL VERSION 1.2 CONTENT 1. INTRODUCTION ..........................3 2. TECHNICAL DATA ..........................3 3. DEVICE DESCRIPTION ........................4 Frontal view ..........................4 Rear view ........................... 4 4. DEVICE CONFIGURATION ........................5 5. WorkCAD3 Player ..........................6 6. MOUNTING ............................7 7. -
Page 4: Introduction

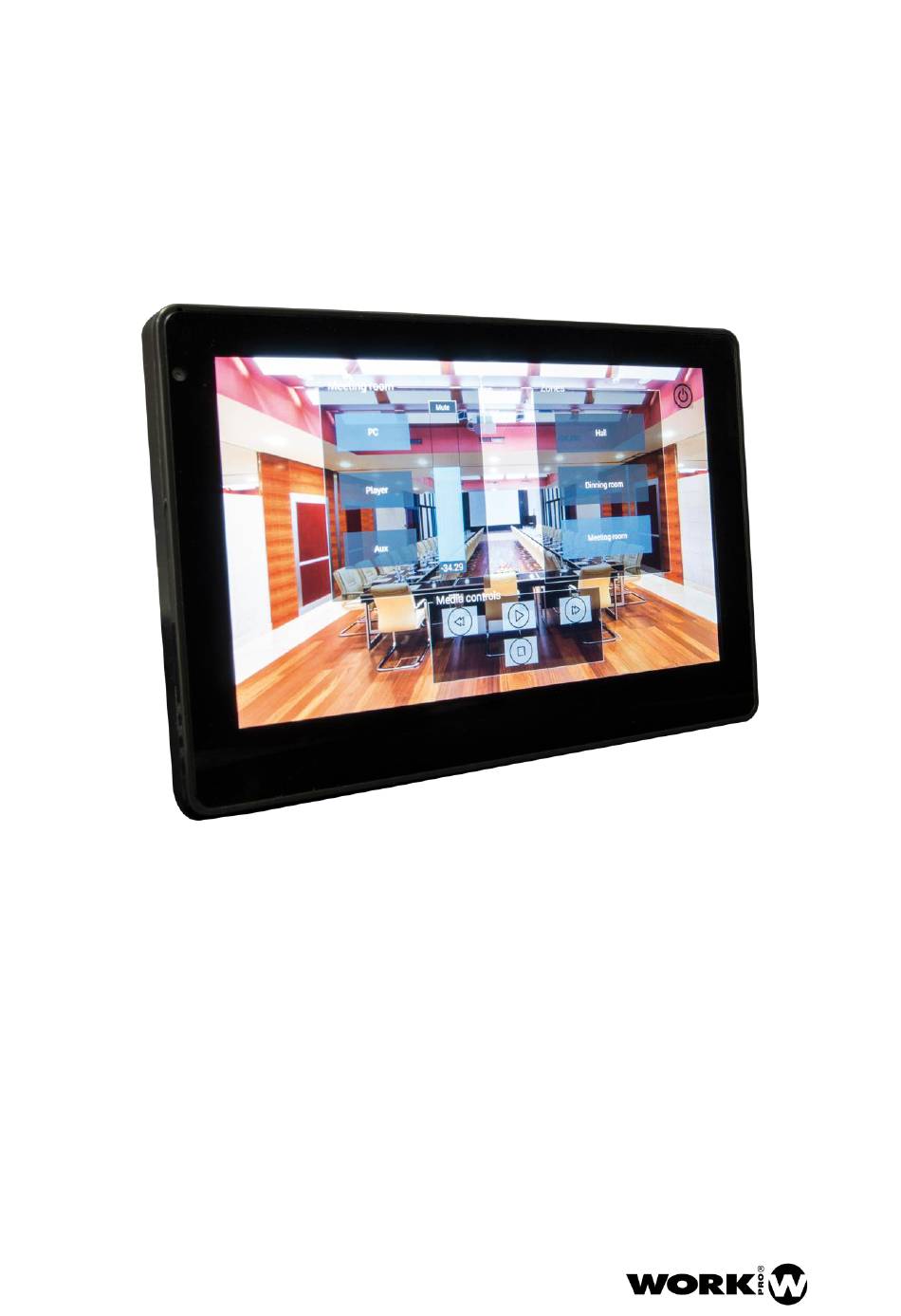

WAC 7 is a wall-mount touch controller, in which you can load layouts generated by WorkCAD3 Editor. Through these layouts, you can control all those WORK PRO devices that accept OSC control commands, such as the BlueLine digital MKII series devices and many of the devices in the LightMouse series. -
Page 5: Device Description
WAC 7 USER MANUAL VERSION 1.2 3. DEVICE DESCRIPTION Frontal view 1. Screen. Touch screen for the visualization and use of layouts. Rear view 2. Main supply input. 9/24 Vdc. (1A minimum). 3. LAN port. Connection port to the local network, RJ45. It allows PoE power (Class 0 802.3af). -
Page 6: Device Configuration
VERSION 1.2 Check the correct polarity before connecting the power. The external power supply is provided with the device. Remember to use ONLY WORK PRO ACCESSORIES. 4. DEVICE CONFIGURATION The configuration of the device must be done through WorkCAD3 Configurator. -
Page 7: Workcad3 Player
USER MANUAL VERSION 1.2 o Send Layout To Device. Button to send a layout saved in the PC to the WAC7. This layout will be auto executed. o Receive a Layout From Device. Button to receive, on the PC, a layout stored in the WAC 7. -
Page 8: Mounting
Add layout. Allows to send a file from workCAD3 Editir. o Open layout. Allows to open a layout saved in the own WAC7. o Open Recent Layout. Allows to open a recent layout saved in the own WAC7. o Exit. Exit from the File menu Edit Allows to edit several parameters. -
Page 9: Accessories
WAC 7 USER MANUAL VERSION 1.2 o Desktop. Using the included plates. 7. ACCESSORIES Use the included frame to fix the WAC 7 to a wall using the fixation points. WAC 7 includes 2 plates in order to fix it and to place the device in a desktop position. WAC 7 www.workpro.es... - Page 10 WAC 7 USER MANUAL VERSION 1.2 WAC 7 www.workpro.es...
