Work Pro LM 5 User Manual

Hide thumbs

Advertisement

Quick Links

LM 5
User Manual
Version1.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LM 5 and is the answer not in the manual?

Questions and answers

Related Manuals for Work Pro LM 5

Summary of Contents for Work Pro LM 5

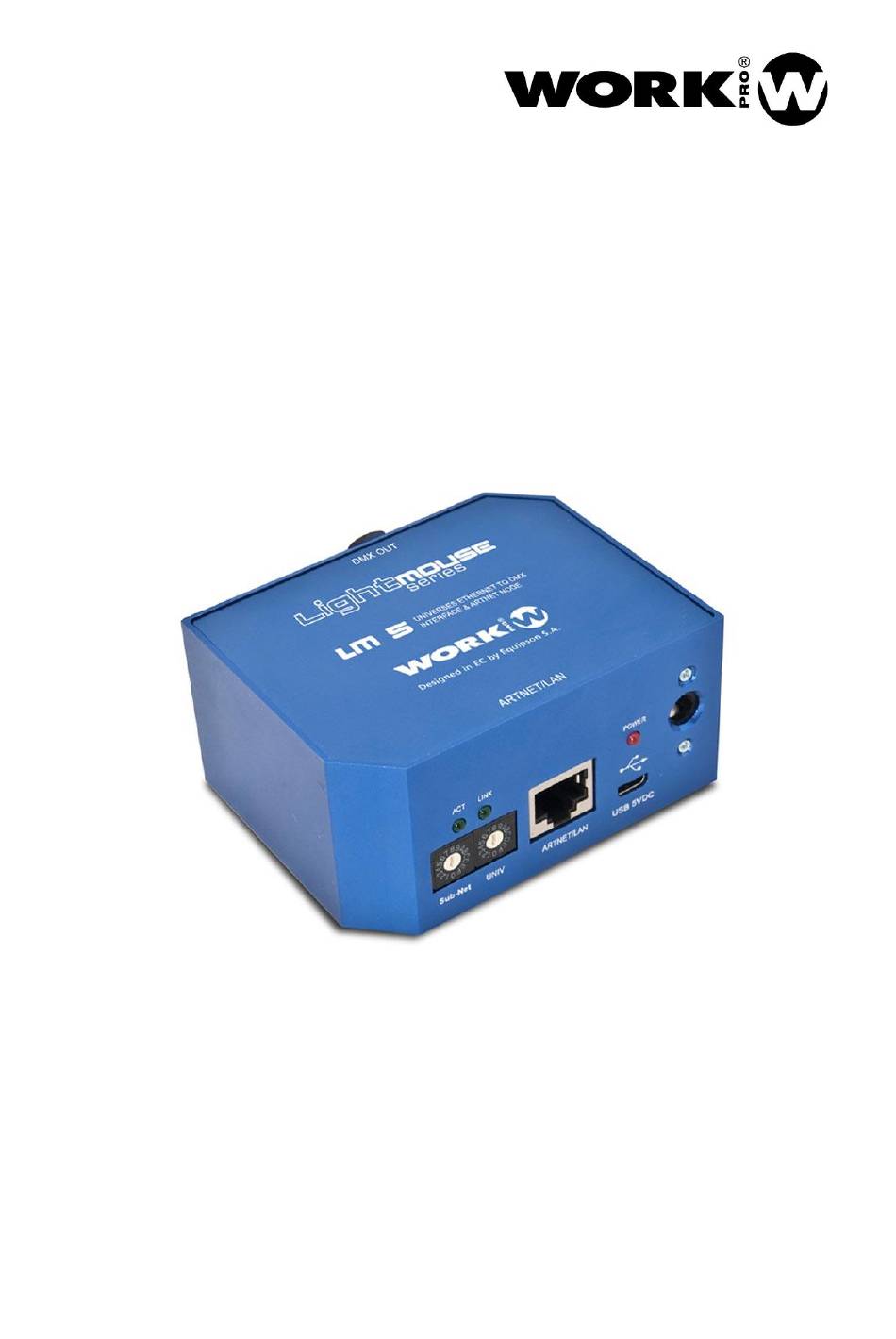

  • Page 1 LM 5 User Manual Version1.1...
  • Page 2 This document contains essential information on the use of the system. Read this document carefully to become familiar with the system. Please check the WORK PRO website regularly to download the latest version of the document and software updates: https://www.workpro.es/ LM 5 www.workpro.es...

  • Page 3: Table Of Contents

    LM 5 USER MANUAL VERSION 1.1 CONTENTS 1. Introduction ............................3 2. Features ............................4 Description of the device ......................4 Device configuration ........................5 2.2.1. Configuration through WorkCAD3 Configurator ............6 2.2.2. Configuration through web interface ................. 8 3. Creation of control layouts ....................... 9 4.

  • Page 4: Introduction

    The fact that the LM 5 accepts the OSC protocol makes it compatible with the different control applications existing in the market, being able to create a customized control interface which is capable of adapting to the needs of the end user.

  • Page 5: Features

    LM 5 USER MANUAL VERSION 1.1 2. Features Lighting features Number of universes 1 universe (512 DMX channels) DMX connector XLR-5 female Memory 99 cues Shows Network Connector RJ-45 Lighting and control protocols Art-Net, OSC Ethernet 100 base TX Main supply...

  • Page 6: Device Configuration

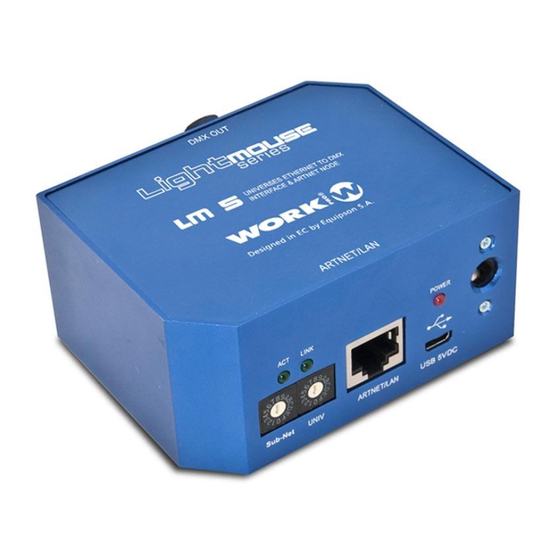

    LM 5 USER MANUAL VERSION 1.1 3. Sub-Net. Universe group selector: • Sub-Net 0. Universes 0-15 • Sub-Net 1. Universes 16-23 • Sub-Net 2. Universes 24-31 • 4. UNIV. Universe selector 5. LAN Port. Connection port to the local network, RJ45.

  • Page 7: Configuration Through Workcad3 Configurator

    LM 5 USER MANUAL VERSION 1.1 2.2.1. Configuration through WorkCAD3 Configurator After making the configuration at the IP level of the device and updating it if necessary (see WorkCAD3 Configurator user manual), proceed with its configuration. If you click with the left mouse button on the device, the configuration interface will open where the following parameters appear: SHOWS: Allows to select the show to be launched or edited.
  • Page 8 LM 5 USER MANUAL VERSION 1.1 • Play. Button to trigger the selected show. • Go. Button to trigger the first scene of the selected show. • Next . Button to trigger the next scene. • Prev. Button to trigger the previous scene.

  • Page 9: Configuration Through Web Interface

    LM 5 USER MANUAL VERSION 1.1 2.2.2. Configuration through web interface In addition to the configuration through WorkCAD3 Configurator, you can also use the web interface for its configuration. For this, the first thing you should do is include your PC in the same subnet as the device, which is 2.0.0.0.

  • Page 10: Creation Of Control Layouts

    LM 5 USER MANUAL VERSION 1.1 Miscellany Options Enable feedback. Enable feedback in order to the control interface shows the status of the device. On Start UP Settings Startup mode of the device. None. None. ▪ Last Show. Last show.
  • Page 11 LM 5 USER MANUAL VERSION 1.1 Individual selection Selection by groups, one by one [x,y,z,…] Selection by group from – until [x-y] Method OSC / ASCII Command Type Data data Register /osc/add,[x] = UDP port Register Listener communication //osc/add;i;[x]; Unregister...
  • Page 12 LM 5 USER MANUAL VERSION 1.1 //dmx/play/show/next;f;[x]; Prev Scene /dmx/play/show/prev,[x] = Cualquier Pasar a la escena número real anterior //dmx/play/show/prev;f;[x]; LM 5 www.workpro.es...

This manual is also suitable for:

Lightmouse series
