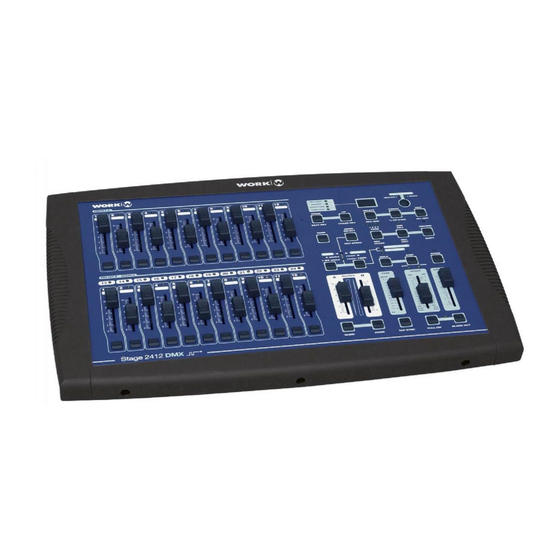

STAGE 2412 DMX
STAGE 4824 DMX
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stage 2412 DMX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Work Pro Stage 2412 DMX

Summary of Contents for Work Pro Stage 2412 DMX

  • Page 1 STAGE 2412 DMX STAGE 4824 DMX OPERATING INSTRUCTIONS...
  • Page 2 T h a n k s f o r y o u r r e l i a b i l i t y o n u s h a v i n g a c q u i r e d a p r o d u c t W O R K . We hope it provides you a long and reliable service.

  • Page 3: Begin Programming

    Begin Programming Record Enable RECORD 1 . Press and hold down the Record button. 2 . While holding down the Record button, tap the Flash button 1,6,6 and 8 in sequence. 3 . Release the Record button, the Record LED lights up, now you can begin programming your chase patterns.
  • Page 4 Program Scenes Create a desired scene using Channel Sliders 1-48 At % or DMX 0, these slider should be RECORD at 0 position, and at 100% or DMX 255, these sliders should be at 10 position. Once the scene is satisfactory, tap the Record button to program the scene as a step into the Repeat step 3 and step 4 until all desired steps memory.

  • Page 5: Edit Enable

    Edit Enable Record enable. MODE SELECT PAGE Use the Page button to selected the page the program you wish to edit is on. Tap the Mode Select button to select. CHNS SCENES CHNS SCENES PRESET A DOUBLE 1 - 24 SINGLE PRESET EDIT 4 .

  • Page 6: Erase All Programs

    Erase All Programs RECORD 1 . Press and hold the Record button. 2 . Tap the Flash button 1, 4, 2 and 3 in sequence while holding the Record button. All LEDs will flash, indicating all programs stored in memory have been erase. Clear a Scene or Scenes 1 .

  • Page 7: Insert A Step Or Steps

    Insert a Step or Steps RECORD MODE SELECT 1 . Record a scene or scenes you wish insert. 2 . Be sure you're in CHNS SCENE and Enter the Edit mode. 3 . Tap the Step button to scroll to the step which you wish to insert before.

  • Page 8: Running Chase Programs

    Running Chase Programs 1 . Tap the Mode Select button select MODE SELECT CHNS SCENES mode indicated by the red LED. PAGE 2 . Tap the Page button to select the correct page the program you wish to run is located. 3 .

  • Page 9: Running A Program With The Standard Beat

    Running a Program WitH the Standard Beat SINGLE CHASE Be sure the Audio is disengaged. Tap the Mode MIX CHASE Select button to select CHNS SCENES PARK mode. REC SPEED Tap the Park button to select Mix Chase mode, the LED lights indicating this selection. Select your program as described above.

  • Page 10: Setting Midi Out

    Setting MIDI OUT Tap the Flash button 2 three times while RECORD holding down the Record button, the Segment Display reads "CHO" indicating MIDI OUT channel setup is available. Tap the Flash button numbered from 1-16 FLAHS FLAHS 1 - 16 to assing MIDI OUT channel 1-16, the Tap this button relevant channel LED lights indicating MIDI...
  • Page 11 Implementation There are two types of file dump mode described as below : Open Loop Mode RECEIVER CONTROLLER MIDI IN MIDI IN MIDI OUT MIDI OUT Close Loop Mode RECEIVER C O N T R O L L E R MIDI IN MIDI IN MIDI OUT...

  • Page 12: Single Mode

    Single Mode All programs will run in sequential order starting in the order of program number. The Segment Display will read the running program number. All programs will be controlled by the same Speed Slider. Press the MODE SELECT BUTTON and select "CHNS < > SCENES". Press the PARK BUTTON to select MIX CHASE MODE.
  • Page 13 STAGE 4824 DMX 8 9 10 11 12 13 14 15 34 FRONT 27 28 29 30 711 mm. FRONT Preset A LEDs Show the current intensity of the relevant channel number from 1 to 24. These 24 sliders are used to control and / or program the intensities of Cannel Sliders 1 - 24 channels 1 - 24.
  • Page 14 S T A G E 4 8 2 4 D M X REAR REAR Power Switch This switch turming on or off of the power. DC Input DC 12-20V. 500 mA. mín. MIDI Thru / Out / In MIDI ports for connection to a sequencer or MIDI device. DMX Out This connector sends your DMX value to the DMX fixture or DMX pack.
  • Page 15 Hold Button This button is used to maintain curret scene. This button is used to go to next step when the Speed Slider is Step Button pushed to the button or in Edit mode. Audio Button Activates audio sync of chase and audio intensity effects. Master Slider A This slider controls overall output of all channels.
  • Page 16 EQUIPSON S.A. POLIG. IND. LA ERMITA. NAVE K 1 TELF. 34 961 795 915 FAX 34 961 795 886 46439 EL ROMANI - SOLLANA ( VALENCIA - ESPAÑA ) E-MAIL: equipson@equipson.com WEB: http://www.equipson.com...
