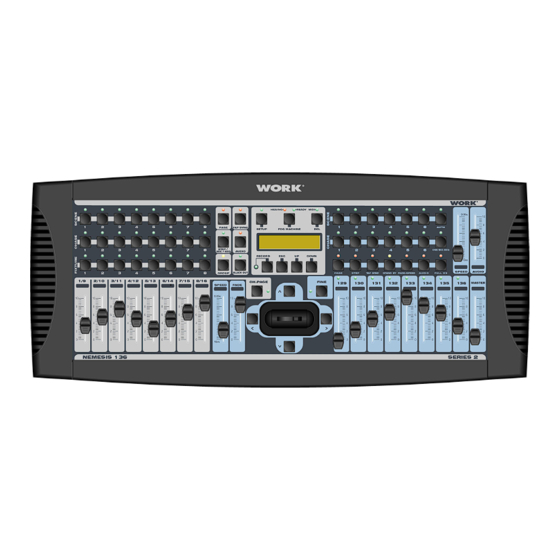

  • Page 1 NEMESIS 136 User Instructions Rev 1.0 No. 24-004-1217...

  • Page 2: Table Of Contents

    NEMESIS 136 Table of Contents General Introduction………………………………………………………………………...….. 3 Safety Rules……………………………………………………………………………………..3 3 Notice Information……………………..………………………………………………………... 3 4 Features and Specifications…………………………………………………………………..4 4.1 Features………………………………………………………………………….…………4 4.2 Specifications……………………………………………………………………………..4 Basic Control Parts…………………………………………………………………………….. 4 5.1 Front view………………………………………………………………………………….. 4 5.2 Rear view……………………………………………………………………………………6 Operation Guide………………………………………………………………………………….7 (operation upon Fixtures)………………………………………………………………….…7 6.1 Control Fixture channels by “joystick”…………………………………………………...

  • Page 3: General Introduction

    2 Safety Rules In order to use the NEMESIS 136 more availably and effectively, please take good care of this unit. The following rules give important information regarding safety during use and maintenance.

  • Page 4: Features And Specifications

    Power failure memory and Fog Machine trigger • MIDI control over scenes, chases and blackout • Audio input and built-in microphone for music sync. function 4.2 Specifications • Model NEMESIS 136 • Power Input DC 9~15V, 600 mA min. • 2×16 characters • Audio Trigger Built-in microphone or line in •...
  • Page 5 • STEP / MIX / SEQ button: To activate the “STEP” function or switch between the Mix mode and the Sequence mode. • TAP SYNC button: Repeatedly tap this button to establish different chase rate. • AUDIO button: Used to activate audio sync of chase rate or set a scene at audio effect. •...

  • Page 6: Rear View

    • FULL ON button: Press this button to output all the PARs at full intensity. • AUTO button: Used to activate AUTO mode. • ONE/MIX/SEQ button: To select One mode, Mix mode or Sequence mode. • SPEED slider: Used to set or adjust relevant speed as user’s desire. •...

  • Page 7: Operation Guide

    6 Operation guide Operation upon Fixtures 6.1 Control Fixture channels by “joystick” • This unit has 8 FIXTURE buttons to select 1—8 fixtures respectively. • Each fixture can be selected by pressing relevant Chase button. Its LED will be lit when being selected.

  • Page 8: Select Or Deselect A Fixture Scene / Chase

    Select and press a Chase button to be recorded, its LED will begin to blink quickly. LCD will show you as below: EDIT CHASE× / TL×× STEP×× Use UP or DOWN button to select the Chase Step to be programmed. Set a scene for Chase recording.

  • Page 9: Select / Deselect A Fixture Chase

    • Select Chase speed mode Press a programmed Chase button, its LED will be lit to indicate its Speed mode. Fast flashing means user can set the speed by SPEED Slider or the TAP SYNC button, while slow flashing means the Chase speed has already been programmed (Speed adjusting will be of no effect at this moment).

  • Page 10: Operation Upon Pars

    Operation upon PARs 6.5 Program or record a PAR Scene / Chase 6.5.1 Program / record a PAR Scene (1) Press and hold down the RECORD button for about 5 seconds to enter the CHASE/SCENE mode. Then choose the Scene page by UP or DOWN button. Select and press a Scene button to be recorded, its LED will begin to blink quickly.

  • Page 11: Select / Deselect A Par Chase

    6.6.2 select / deselect a PAR Chase (1) Choose chase mode: Press ONE/MIX/SEQ button to select the chase mode when no chase running. “off ” LED means “ONE” mode, “on” LED means “MIX” mode, and “flashing” LED means “SEQ” mode. It would be ineffective when chase running. (2) “ONE”...

  • Page 12: Settings

    7 Settings 7.1 Enter the setting mode • Press SETUP for 5 seconds while no program running, relevant LED will light up. LCD will show you: ↓ 1. CF CARD 2. ASSIGN ( 3.P/T FADE ONLY 4.DISPLAY MODE 5.MIDI CH. ) Use UP/DOWN”...

  • Page 13: Pan / Tilt Fade Only

    Power must be assured “on”, when reading or storing to CF card. • Turn off the power when connect or disconnect CF card with the unit. • CF card (32M) can be used only for NEMESIS 136, otherwise the data would probably be missing.

  • Page 14: Midi Implementation

    • Outputting of DMX would be stopped during the reading or storing to CF card. And so does to “ASSIGN CH.” mode. • CF card may become hot during use. Please observe due caution when removing memory cards from this device. •...
