Annovi Reverberi SJV2.5G24D-F7 Operating Instructions And Parts Manual

Operating Instructions and Parts Manual
Operating Instructions and Parts Manual
Plunger Pumps
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
Description
This plunger pump will pump up to 2.5 GPM
at 2500 PSI. It spins at 3400 RPM in a direct
drive system coupled with a gasoline engine.
The matching flange provides convenient
connection to most 3/4" shaft 3.5 - 6.5 HP
engines. The hollow shafted pump includes
a built-in pressure control valve, and
chemical injection system.
SJV 3400 rpm D Version
Model
SJV2.5G24D-F7
SJV2.5G25D-F7
SJV2.5G27D-F7
SJV3G27D-F7
SJV3G27D-EZ
SJW 3400 rpm D Version
Model
SJW3G25D-F27
XJV 3400 rpm E Version 5/8"
Model
XJV2G15E-F8
XJV3G20E-F8
XJW 3400 rpm D Version
Model
XJW2G25D-F27*
XJW2.5G25D-F27
XJW3G25D-F27
Special Note: Use only AR64545 for the XJ/SJ/BK Series pumps only: Do NOT change oil.
Use oil only to add if low. This oil is a specially formulated synthetic with special additives
for the demands of the XJ, SJ and BK pump series. No other oil is factory approved for these
pumps, and could result in pump failure.
Form SJ-XJ-OM 1006
Available from Allparts Equipment and Accessories - 1-877-475-5660 - www.allpartsinc.com
Max GPM Max PSI
2.5 2500
2.5 2500
2.5 2700
3.0 2700
3.0 2700
Max GPM Max PSI
3.0 2500
Max GPM Max PSI
2.0 1450
3.0 2000
Max GPM Max PSI
2.0 2500
2.5 2500
3.0 2500
SJ & XJ Series Pumps
SJ & XJ Series Pumps

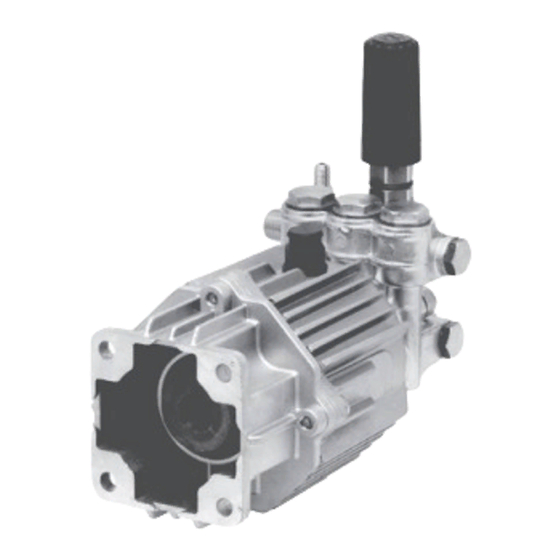

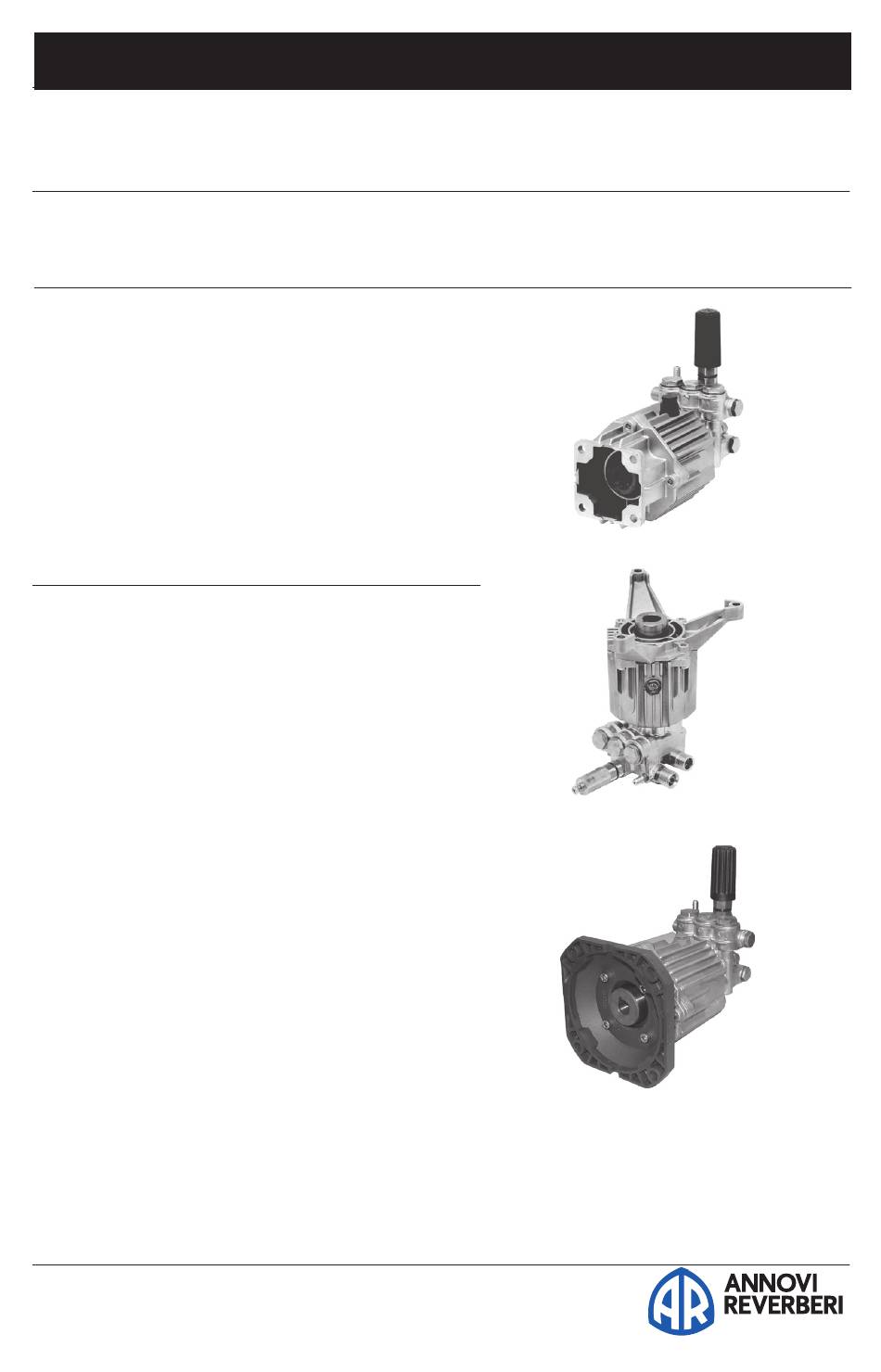

Figure 1 - SJV-F7
Figure 2- SJW-F27 & XJW-F27
Figure 3 - XJV-F8
