Page 1

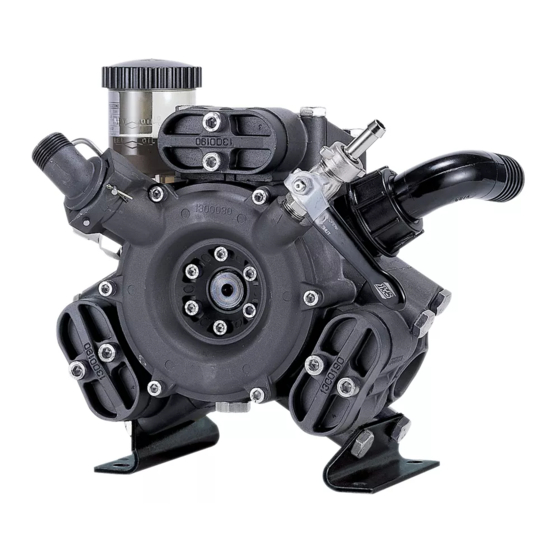

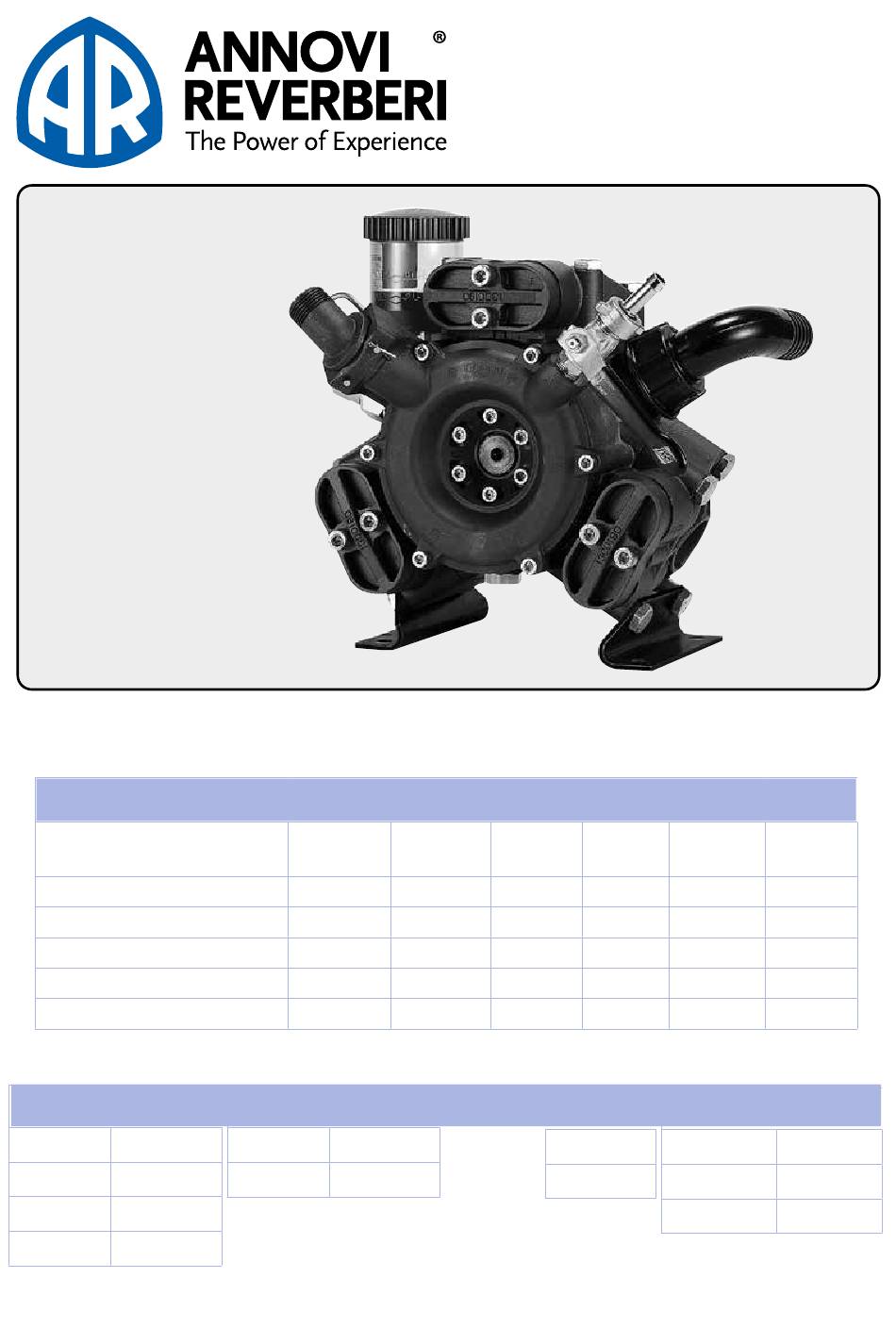

AR 503 140° F - Max Water Temp 1-1/4” - Suction 3/4” NPT - Outlet INSTRUCTION MANUAL AR503 - 550 ydRAuLic HRee iAPHRAgm eigHT HP P odeL oweR AR503-SP 14.3 54.1 25.4 AR503-GR3/4-GCI 14.3 54.1 41.0 AR503-GR1-GCI 14.3 54.1 41.0 AR503-GR3/4-GCI/A1 14.3...
Page 2
Application Kits Medium Pressure AR1639 $747.60 Gearbox Kit AR1639: 1” 8-18 HP Gas Engines AR1636 $680.00 Gearbox Kit AR1636: 3/4” for 5-6HP Gas Engine Gearbox for four stroke engines Gearbox for four stroke engines with SAE J609a flange with SAE J609a flange Ø...
IMPORTANT SAFETY INFORMATION Intended uses The pump is designed and constructed for incorporation in plants and machinery (spraying machines for the protective treatment of agricultural crops and garden plants). All other uses constitute misuse unless ap- proved by the manufacturer's technical service The pump must be used in a manner appropriate to its technical data (see “Technical Data”), and must not be modified or improperly used.
Installation • The crankshaft may turn in either direction. • The water connection with the pump must be made using hoses of suitable diameter, in all case no less than that of the pump fittings, securing them to the fittings using good quality clamps. The intake hose must be coil-reinforced to prevent restrictions.
INSTALLATION INSTRUCTIONS Installation diagram (guideline) The following is a simplified illustration of the typical installation layout and is purely guideline. Control Unit by-pass Tank Agitation plugged strainer or too small a strainer Control Unit Intake filter Pump long inlet hose or too small of hose Delivery line filter...
Page 6
INSTALLATION INSTRUCTIONS General guidelines on water supply connection To operate correctly, the diaphragm pump must draw in liquids from containers at atmospheric pressure. Do not supply the pump with pressurised liquids. For continuous duty, the pump should not draw in water by gravity from containers with liquid level at heights above 3 m.
Page 7
Safety recommendations for handling and lifting Before starting the operations, organise the intended working area so that the materials can be lifted and handled in safety. Unloading, loading, handling and lifting operations must be carried out by skilled, authorised, specifi cally trained staff.
Page 8
Safety recommendations for use Before start-up, the operator must perform the necessary safety checks. In the event of leaks from the pressurized pipes, stop the pump at once and fix the leak. Do not operate the pump above the limits set by the manufacturer to increase its performance. Preliminary checks If the pump has a pressure accumulator, check its level of inflation, see "Checking the inflation pressure".
Page 9
Safety recommendations for maintenance Before doing any maintenance work, depressurise the water system and isolate the pump from all en- ergy sources. When the jobs are done, before restarting the pump, check that no tools, rags or other materials have been left close to moving parts or in hazardous zones.
MAINTENANCE INSTRUCTIONS Table of lubricants The pump is delivered complete with high-performance 30 weight, non-detergent oil suitable for the intended ambient conditions (see "Environmental operating limits"). Inspecting the pump mounting Check that the pump's fixing screws have not become loose. If necessary, tighten them with the driving torque stated in the installation design.
Page 11
Pump Storage It is important to comply with the recommendations for storage in the operator's manual of the machine into which the pump is incorporated. For the pump itself, at the end of pumping operations it is essential to flush out the internal circuit by pump ing clean water.
TROUBLESHOOTING The information provided is intended to provide guidance how to deal with malfunctions which may occur during use. Some of these procedures may be carried out by skilled staff, while others have to be performed at specialised service centres since they require the use of specific equipment as well as detailed knowledge of repair opera tions.
Page 13
TROUBLESHOOTING Remedy Problem Cause Oil seal on pump Replace the worn oil seal. shaft worn. Oil on pump body or base. Oil pressure inside pump too high. Restore correct oil level in tank. Pump using too much oil (oil flowing from delivery port) or oil Stop the pump at once.
Page 14
A.R. NORTH AMERICA A.R. NORTH AMERICA AR 503 53 52 50 - 1 50 - 2 50 - 3 50 - 4 50 - 5 50 - 6 2021 AR North America...
Page 15
GR3/4-GCI GR3/4-GCI-A1 GR1-GCI GR1-GCI-A1 AR 503 AR503 31746 33084 31915 33083 31748 Code Description Code Description Note Note 620610 Bolt TCEI M8x30 T T 180* 580360 Hub pin T T 265* 1040326 Plug black 1040180 Retaining washer 650920 O-ring Ø 53.65x2.62 620080 Diaphragm 1040310 Oil sight glass 620081 Diaphragm...
Page 16
A.R. NORTH AMERICA A.R. NORTH AMERICA RM 40 AR 30-50 AR 503 - AR 713 AR 503 - AR 713 AR 813 AR 813 13 14 86 - 2 AR 503 - AR 713 AR 813 16 17 86 - 1 Cod.
Page 17
RM 40 RM40 Kit for RM 40 KIT 972 “I” KIT 983 “S” KIT 979 “S” KIT 977 “I” KIT 985 “S” KIT 984 “S” KIT 928 “S” Build-in control unit and remote control KIT 983 "S" KIT 972 "I" KIT 977 "I"...
Page 18
A.R. NORTH AMERICA A.R. NORTH AMERICA AR 1636 : Gear Reduction Per - For: AR 30 - AR 303 - AR 403 Use of engine : B&S Vanguard 6.5 Kohler SH265 - CH270 Honda GX120 - GX160 - GP160 - GP200 Subaru EX17 - EX21 Ø...
Page 19
A.R. NORTH AMERICA A.R. NORTH AMERICA AR 1666 : Gear Reduction Per - For: AR 30 - AR 303 - AR 403 Use of engine : B&S Vanguard 6.5 Kohler SH 265 Kohler SH 270 Honda GX 120 Honda GX 160 Honda GP 160 Honda GP 200 Axo AMG 120...
