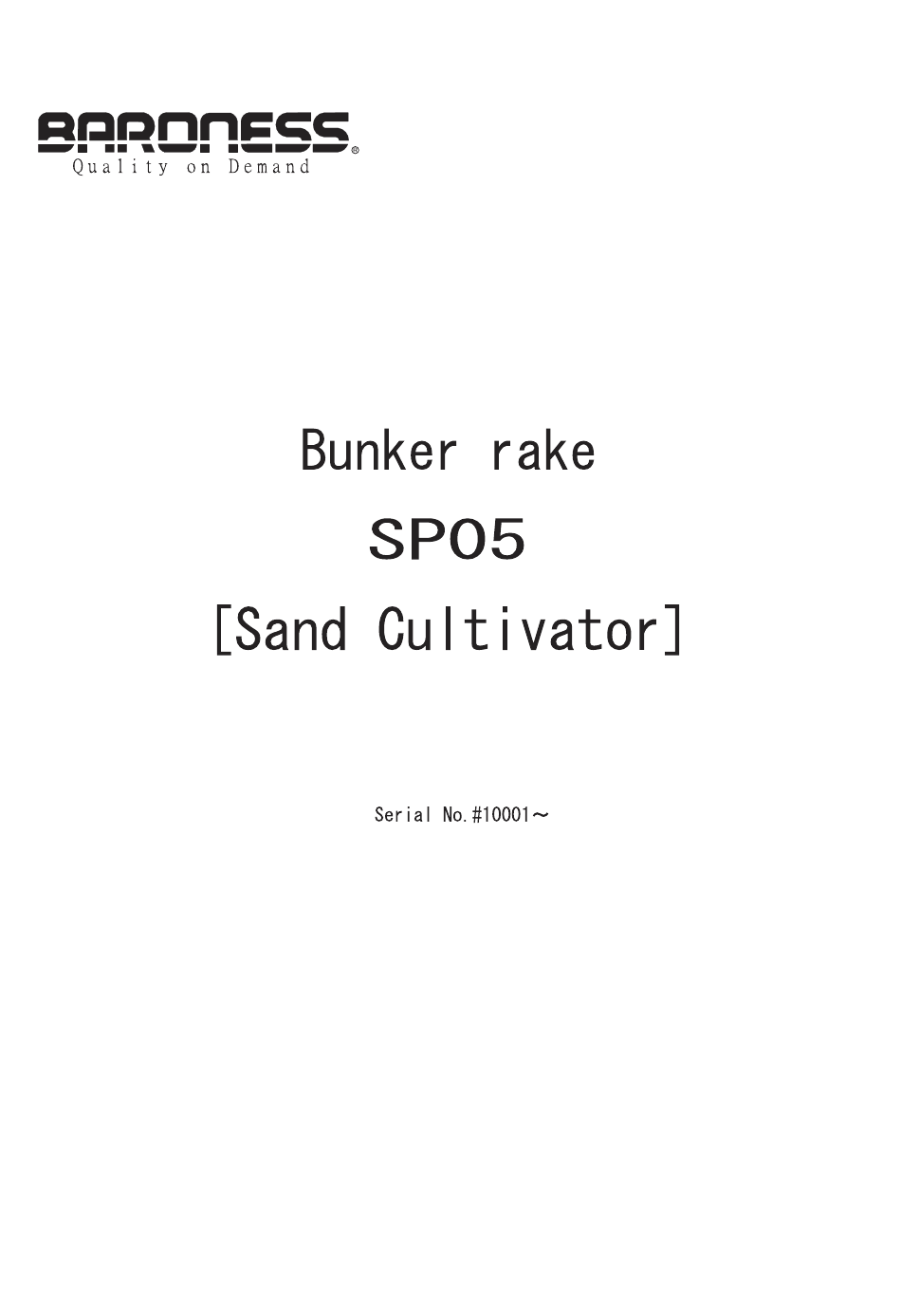

- Page 1 Assembly and installation manual Vol.4...
- Page 2 The information described in this manual is subject to change without prior notice for improvement. When replacing parts, be sure to use genuine Baroness parts or parts designated by Kyoeisha. Note that the Baroness product warranty may not apply to defects caused by the use of parts from other companies.
- Page 3 If necessary, use appropriate chain blocks, hoists, or a jack. If the machine is lifted up, ensure that it is supported by jack stands or appropriate blocks. When replacing parts or installing accessory parts, use genuine BARONESS parts. Never start the engine in a closed room. Doing so could cause carbon monoxide poisoning.
- Page 4 Installing Optional Equipment for the SP05 Sand Cultivator Intended use: The sand cultivator section is used to loosen the bunker surface and soften the sand. Operating width: 116 cm (46 in.) Check that all parts are included. The following parts are included in the package.
- Page 5 Nominal diameter torque kgf-cm lb-in 71.38~91.77 61.96~79.66 7–9 142.76~193.74 123.91~168.17 14–19 295.71~387.49 256.68~336.34 29–38 Caution When tightening bolts, refer to the above table. We will not be held responsible for any damage resulting from improper or excessive tightening, etc. SP05----AM02USC...
- Page 6 SP05 Installing the Sand Cultivator Section Steps Illustrations Descriptions lever portion packaged Cultivator Lever(1) is out of alignment. Align the center(B) of the lever with A line. Set Sand Cultivator(2) under the machine. Secure the right fulcrum(D) to the right...
- Page 7 SP05 Installing the Sand Cultivator Section Steps Illustrations Descriptions Secure Cultivator Lever(1) Sand Cultivator(2) with Washers(6), S Washers(4) and Bolts(7). Secure the gas spring(F) to the right fulcrum(G) with Pin(8), Washer(3), Cotter Pin(9) and cover the rod. In the case that the rod length of the gas...
- Page 8 Ensure that the cultivator moves smoothly and does not interfere with the other parts. SP05----AM02USC...
- Page 9 Removing Sand Cultivator Assy (See the illustrations for installing procedures) 1. Remove the Bolt(5), S Washers(4) and Washers(6) on the right and left frame mounting portions of the machine fitted with Sand Cultivator(2). 2. Remove Sand Cultivator Assy from under the machine. SP05----AM02USC...
- Page 10 MEMO...
- Page 11 MEMO...
- Page 12 Head Office 1-26, Miyuki-cho, Toyokawa, Tel : (0533) 84 - 1390 Fax : (0533) 89 - 3623 Aichi-Pref. 442-8530 Japan. SP05----AM02GBC/13J-00-KES...
