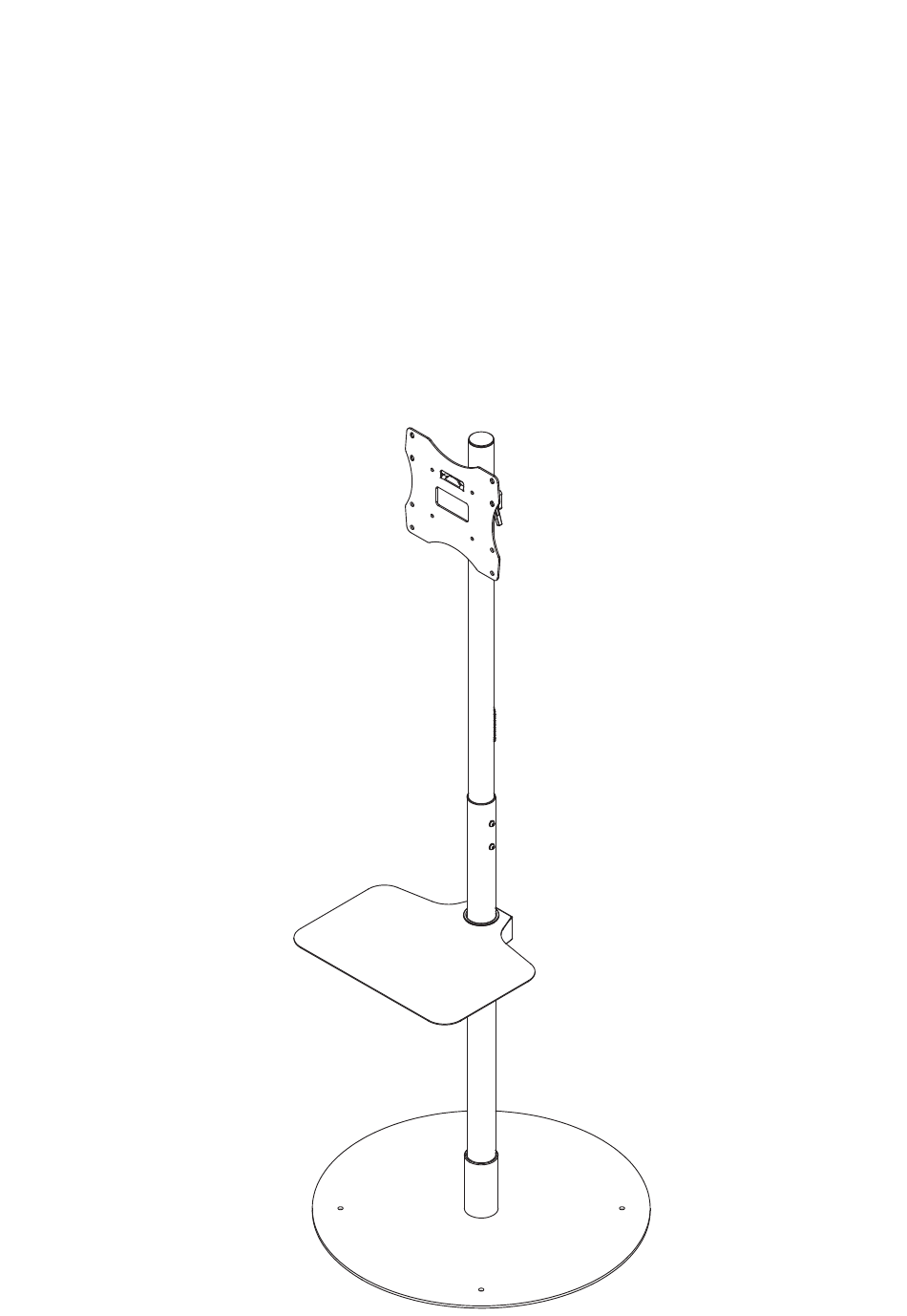

- Page 1 INSTALLATION GUIDE TV Stand Mount TVSDP2642B Support 26" to 42" Screens Max Load Capacity: 100 lbs (45 kg) VESA 100x100 / 200x100/200x200 compatible...
- Page 2 attempting to begin your installation. who has a basic knowledge of bui di l ng construction,installations and fully understands these instructions. omeone assist you to lift and position your equipment. bolts firmly, but do not over tighten. Over tightening can damage the items and greatly reduce their ability to hold.
- Page 3 B . Component checklist (Head Assembly) (Base Floor) (AV Tray) (First Pipe) (Second Pipe) Install the rubber pad onto base floor (CC) Rubber Pad Rubber Pad (x4) (x4) Install the first pipe (EE) onto base floor (CC) H (X2) 3 of 8...
- Page 4 n t o Mount the AV tray (BB) the first Pipe (EE) Allen key Allen key Mount the Second Pipe (DD) Allen key Mount the second pipe (DD) onto the first pipe (EE). (x4) (x4) nt the Head Assembly (AA) onto second pipe (DD) Allen key Screw off the nut first.
- Page 5 Mounting the assembly the adaptor plate to screen A+F/B+F/C 200×200 Note: Recessed Mounting Holes. If the mounting holes are recessed into the back of the displa y, use the supplied spacer to pack the recessed hole. Ensure that the brackets are securely fixed to the display.
-
Page 6: Adjust Angle
Adjust angle Second person will be required to assist ! 0°~12° Height adjustable Height adjustable 6 of 8... - Page 7 Using cable management wire cable wire cable 7 of 8...
- Page 8 Fix the stand to the floor(Optional) Lag Bolt 8X70mm Anchor 8 of 8...
