PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE! IF
YOU DO NOT UNDERSTAND THE INSTRUCTIONS, OR DO NOT FEEL THAT YOU CAN FOLLOW
THEM SAFELY, CONTACT A QUALIFIED CONTRACTOR. THE WARRANTY WILL BE HONOURED IF
ACCOMPANIED BY AN ORIGINAL SALES RECEIPT, AND ONLY IF THE INSTRUCTIONS HAVE
BEEN FOLLOWED EXACTLY.
・ The HVAWM4290L is designed to mount a panel onto a vertical wall. Hardware for mounting to
a wood stud is included. For mounting to any other surface, it is recommended you contact a
qualified contractor.
・ The wall or mounting surface must be capable of supporting the combined weight of the mount
and the display, otherwise the structure must be reinforced.
・ Safety gear and proper tools must be used. A minimum of two people are required for this installation.
Failure to use safety gear and/or attempting this installation alone can result in property damage,
serious injury, or death.
・ Follow all instructions and recommendations regarding adequate ventilation and suitable locations for
mounting your flat panel. Consult the owner ' s manual for your flat panel for more information.
・ This product will hold flat panels up to 90" and weighing up to 200 lbs.
・ VESA 800mm x 600mm
Tools Required
・ Stud finder ("edge to edge" stud finder is recommended)
・ Phillips screwdriver
・ Pencil
・ Hammer Drill (Concrete installation only)
・ 1/4" drill bit for wood studs, 3/8" drill bit for concrete
・ 7/16" socket wrench or bit driver for wood screws
・ Level
・ Tape measure
B
A
M5*15mm
M5*25mm
(x4)
(x4)
I
Metal Washer
φ8mm (x4)
1
HVAWM4290L
INSTRUCTIONS
Wall Plate (x1)
C
D
M6*25mm
M6*12mm
(x4)
(x8)
J
Spacers (x4)

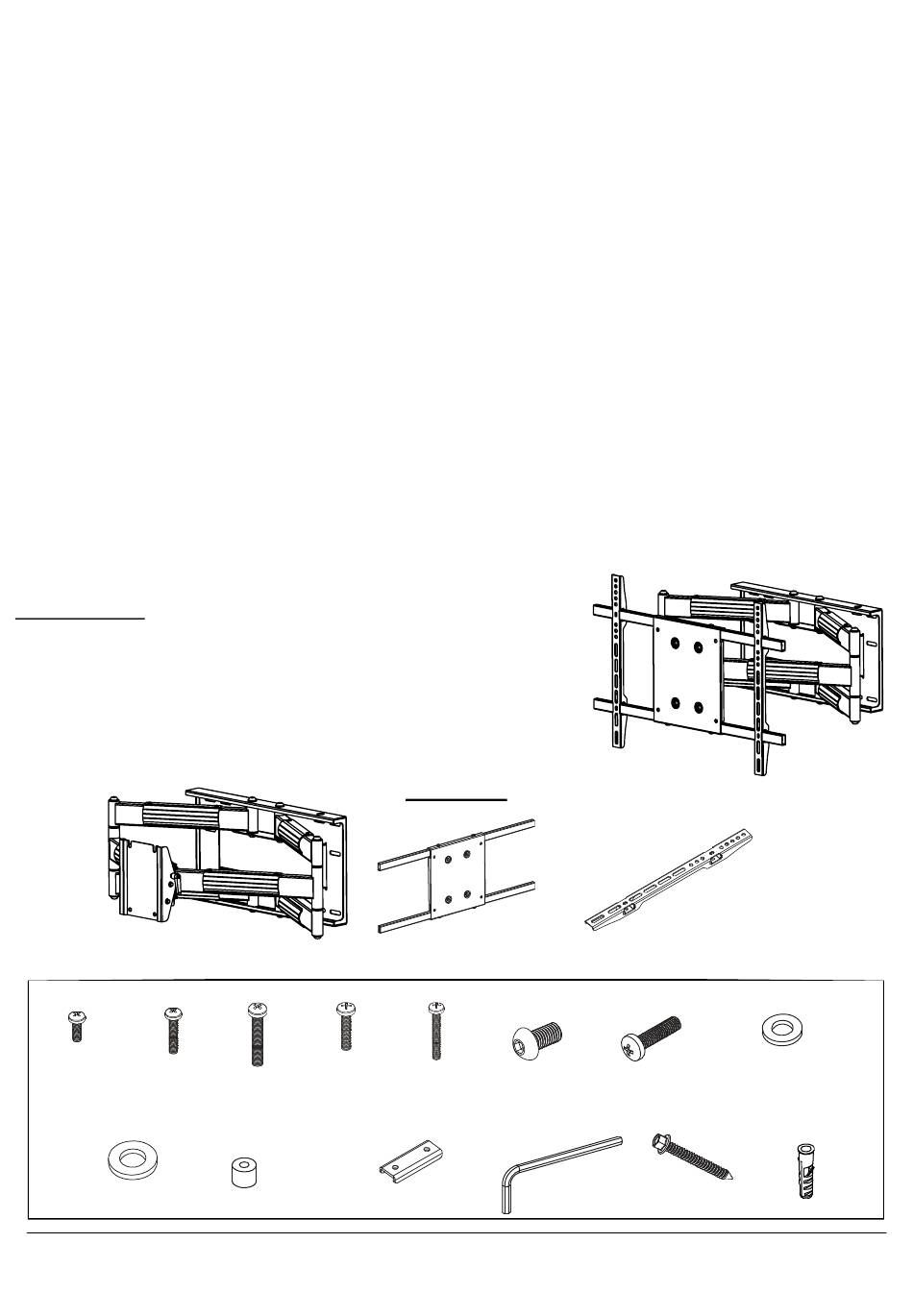

Parts List
Adaptor Plate (x1)
E
F
M8*15mm
M8*15mm
(x4)
(x4)
K
Slider Plates
Allen Key (x1)
(x4)
Adaptor Brackets (x2)
G
M8*30mm
(x4)
M
L
Lag Bolt
8*70mm (x4)
H
Metal Washer
φ6mm (x8)
N
Anchor (x4)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Displays2go HVAWM4290L
Summary of Contents for Displays2go HVAWM4290L
- Page 1 ACCOMPANIED BY AN ORIGINAL SALES RECEIPT, AND ONLY IF THE INSTRUCTIONS HAVE BEEN FOLLOWED EXACTLY. ・ The HVAWM4290L is designed to mount a panel onto a vertical wall. Hardware for mounting to a wood stud is included. For mounting to any other surface, it is recommended you contact a qualified contractor.
- Page 2 Step 1A - Mounting the wall plate to wooden studs (Fig. 1) The HVAWM4290L can be mounted onto two wooden studs, with center to center istances between 16" (406mm). Using an electronic stud finder, locate the center of the two wooden studs at the desired mounting location.
- Page 3 Fig. 3 Step 2 - Assembling the Adaptor Plate (Fig.3) Adaptor rail Insert slider plates (x4) into the adaptor rails, then Adaptor bracket insert the adaptor brackets into the adaptor rails. Slider plate Attach the adaptor bracket and slider plates with four M6*12mm screws and four 6mm metal washers φ...
- Page 4 Step 5 - Adjusting the flat panel Fig. 7.1 The HVAWM4290L provides a wide range of adjustment possibilities to suit your environment. Roll Control - Horizontal levelling of the flat panel display. Grasp the edge of the panel and roll it up or down into a level Fig.
- Page 5 Fig. 15 Maintaining the HVAWM4290L The arm assembly and wall plate may be cleaned with a soft sponge and mild solution of soap and water. Caution : Be sure not to get moisture on the electrical connections or the panel.
