Displays2go IPBYSATO10 Installation Instruction

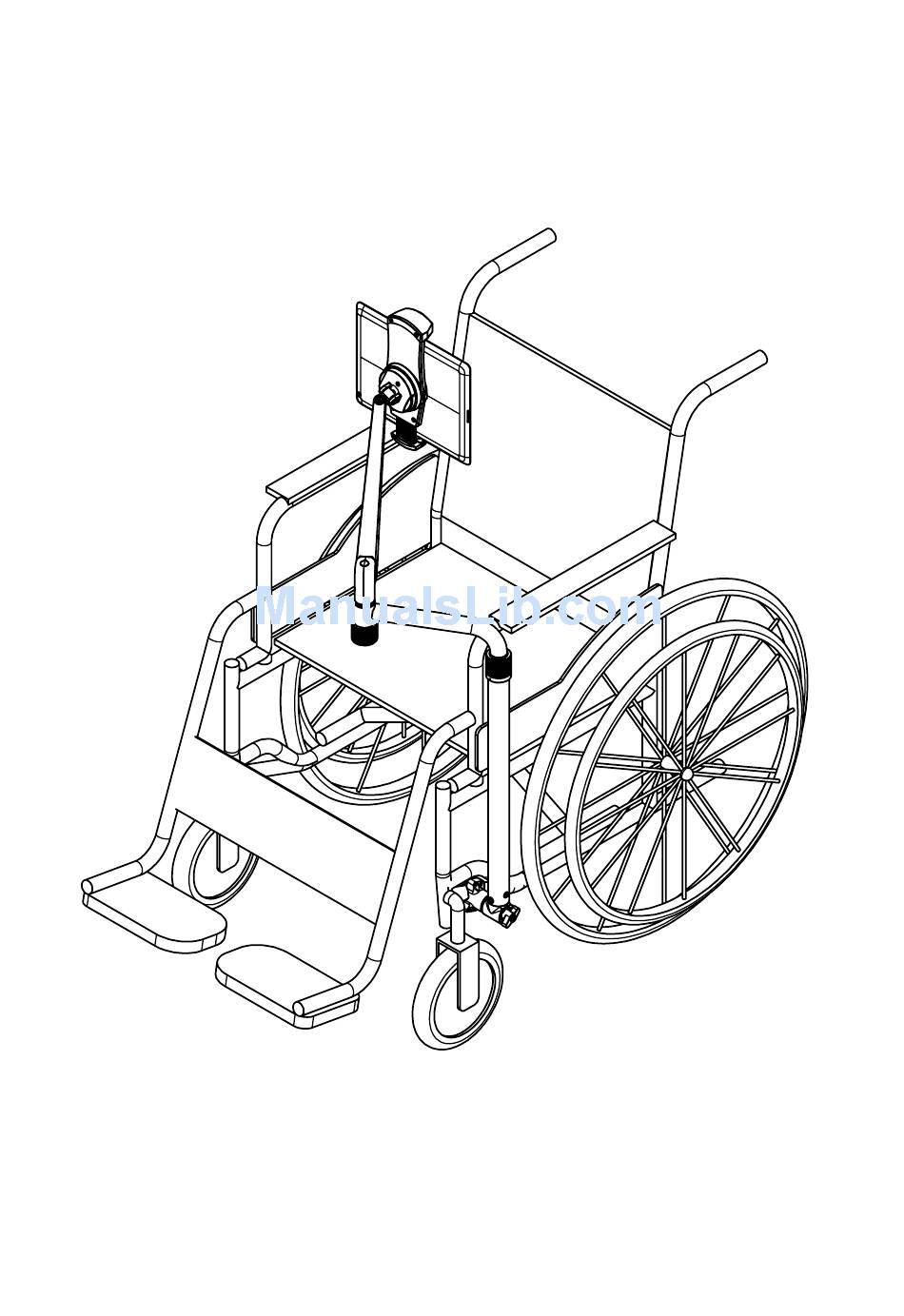

Ipad wheelchair mount, rotating and tilting, universal bracket
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
IPBYSATO10
Installation Instruction

Advertisement

loading
Need help?

Need help?

Do you have a question about the IPBYSATO10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Displays2go IPBYSATO10

Summary of Contents for Displays2go IPBYSATO10

  • Page 1 IPBYSATO10 Installation Instruction...
  • Page 3 Special Function Product Component Item Description Item Description Qty. Attachment Button Bushing Adjustable Tube Knob Bottom Tube Clip holder-1 V Shape Spring- Single Side Bead Clip holder-2 Rotatable Holder Knob Attachment Socket Universal Holder Button for Vertical Extension Hardware Kit Up Bracket M8 Knob Down Bracket...
  • Page 4 Installation steps： 1. Insert 2 into 3 . Adjust the desired height and then turn C until tight. ※ Before insert 2 into 3 , should press E first. After press E and insert 2 into 3 , it is unable to draw 2 out. 2.
  • Page 5 ※ Enlarged view after assembling ※ Please check if there is a nut installed before assembling. Installation steps： 3. Insert A-C through 4 till end . 4. Clip 4 & 5 onto the desired tube and then turn A-B until tight.
  • Page 6 Installation steps： 5. Enter F and combine with 5 . ※ Convex on 5 should match concave on F . 6. Adjust your desired view and then turn A-A until tight.

  • Page 7: Bottom View

    Use "B-B"+"B-C" tools to adjust the tightness of all screws on three knuckles. Loose Tight Bottom View ※ Use B-A to turn D for adjusting the tightness of 1 vertical movement.
  • Page 8 Attachment Description 1：Press and stretch till larger than the length of tablet. Then release Attachment Description 2：Put tablet onto and press . Push back to fasten tablet. Attachment Description 3：After tablet is fastened, release * Note： After attaching, please check if these two items are fastened well for preventing tablet sliding and damaged.
  • Page 9 Attachment Description 4：Press A to take off or attach G . * Note：After attaching, please check if these two items are fastened well for preventing tablet sliding and damaged. Attachment Finished Attachment Description 5：After attaching, turn tablet clockwise or anti-clockwise to get the best view.
