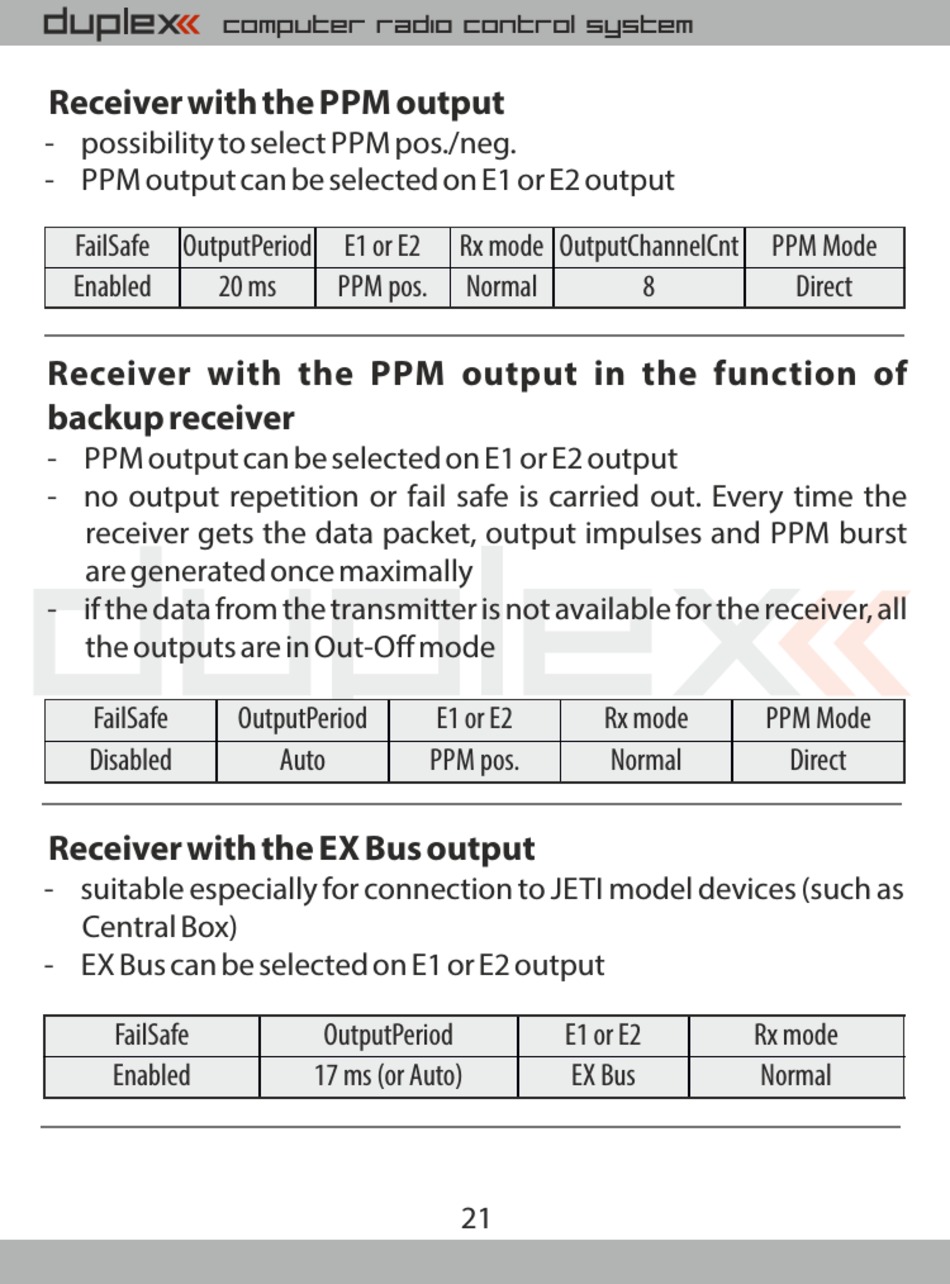

Receiver with the PPM output
- possibility to select PPM pos./neg.
- PPM output can be selected on E1 or E2 output
FailSafe OutputPeriod E1 or E2
Enabled 20 ms
Receiver with the PPM output in the function of
backup receiver
- PPM output can be selected on E1 or E2 output
- no output repetition or fail safe is carried out. Every time the
receiver gets the data packet, output impulses and PPM burst
are generated once maximally
- if the data from the transmitter is not available for the receiver, all
the outputs are in Out-Off mode
FailSafe
Disabled
Receiver with the EX Bus output
- suitable especially for connection to JETI model devices (such as
Central Box)
- EX Bus can be selected on E1 or E2 output
FailSafe
Enabled
PPM pos.
OutputPeriod
Auto
OutputPeriod
17 ms (or Auto)
Rx mode OutputChannelCnt PPM Mode
Normal
E1 or E2 Rx mode
PPM pos.
E1 or E2
EX Bus
21
8
PPM Mode
Normal Direct
Rx mode
Normal
Direct
