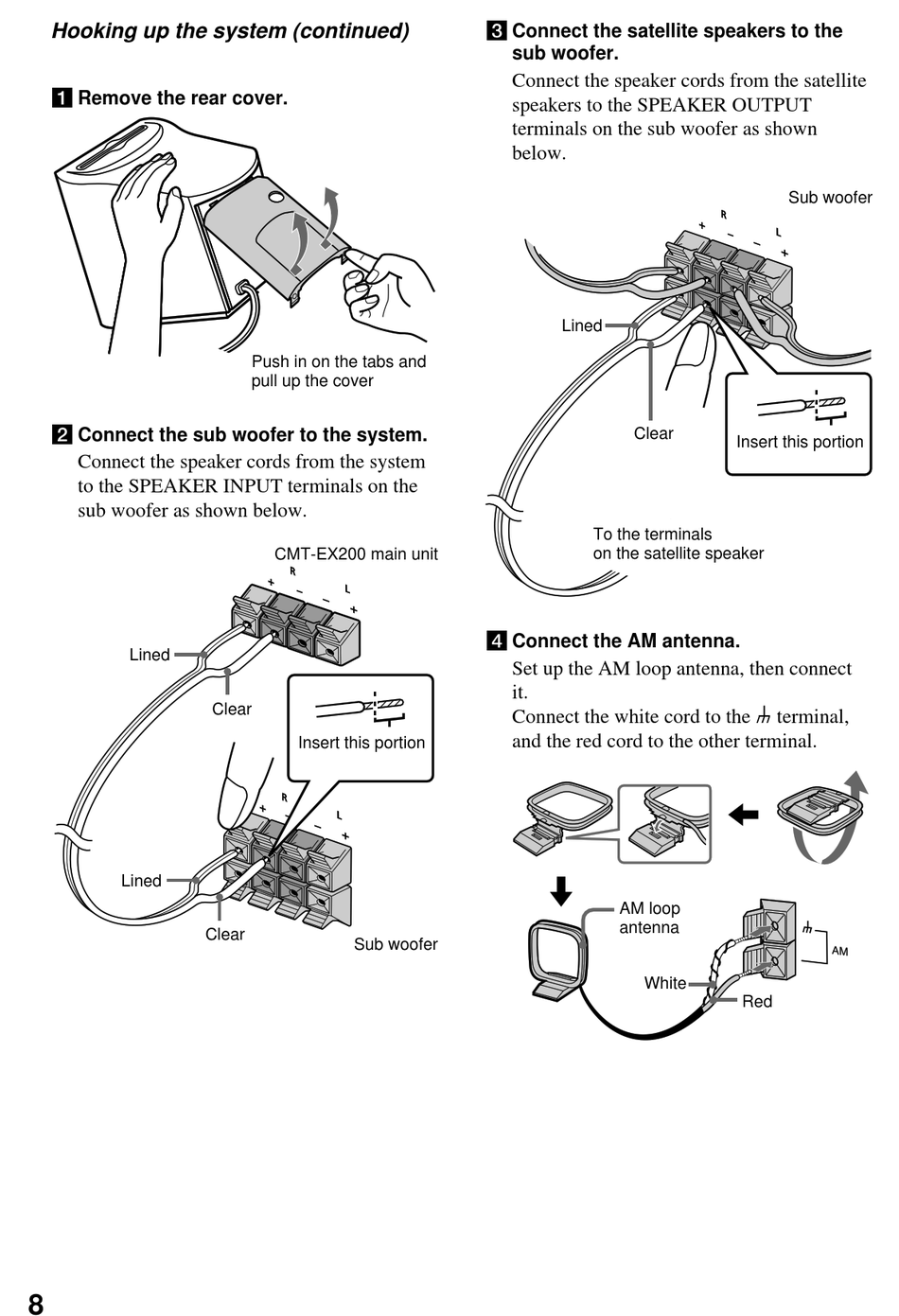

Hooking up the system (continued)
1 Remove the rear cover.
2 Connect the sub woofer to the system.
Connect the speaker cords from the system
to the SPEAKER INPUT terminals on the
sub woofer as shown below.
Lined
Lined
8
Push in on the tabs and
pull up the cover
CMT-EX200 main unit
Clear
Insert this portion
Clear
Sub woofer
3 Connect the satellite speakers to the
sub woofer.
Connect the speaker cords from the satellite
speakers to the SPEAKER OUTPUT
terminals on the sub woofer as shown
below.
Lined
Clear
To the terminals
on the satellite speaker
4 Connect the AM antenna.
Set up the AM loop antenna, then connect
it.
Connect the white cord to the U terminal,
and the red cord to the other terminal.
AM loop
antenna
White
Sub woofer
Insert this portion
Red
