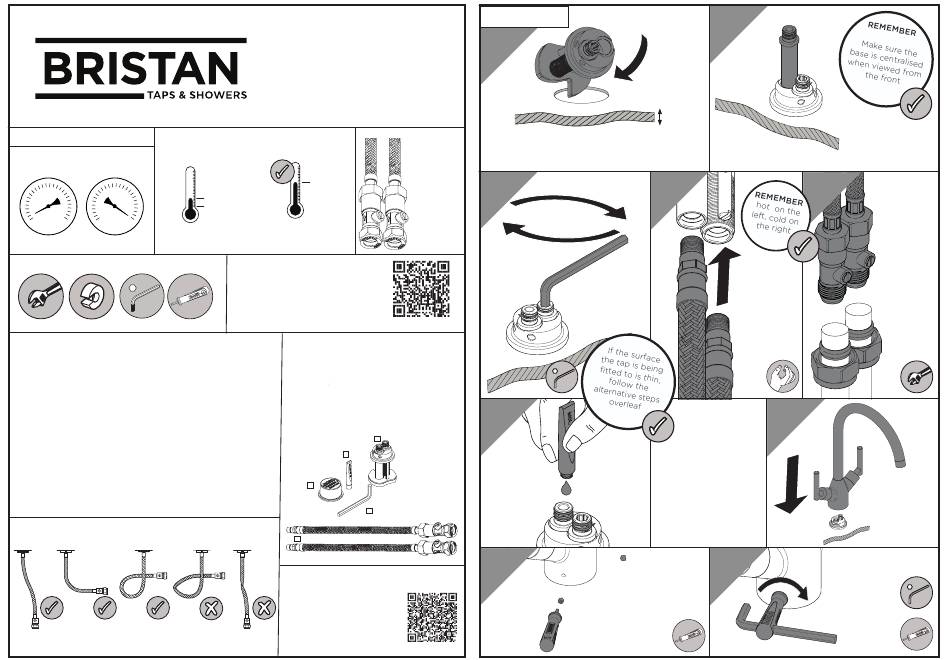

Bristan EF KIT PK Installation Instructions & User Manual

Specifications
Cold Water Supply
Dynamic Water Pressure
Please refer to your Tap Instructions
3.0 3.0
2.0 2.0
4.0 4.0
1.0 1.0
0. 5.0 0. 5.0
Pressure Pressure
BAR BAR
Min: 5°C Max: 25°C
Maximum Static Pressure: 10.0 bar
Tools You'll Need
Adjustable Spanner Pipe Cutter Hexagonal Key EasyFit Tool
Prior to Installation
All products manufactured and supplied by Bristan are safe provided
they are installed, used correctly and recieve regular maintenance in
accordance with these instructions.
This product has been tested to the Water Regulations Advisory
Scheme (WRAS) and satisfies the requirements of the Water Supply
(Water Fittings) Regulations 1999 and current bylaws.
For full Installation Requirements & Notes (IRN) please visit
wras.co.uk/directory.
Isolation valves must be fitted to the inlet water supplies to ensure ease
of future maintenance.
Before installing these taps the water supply must be thoroughly
flushed in order to remove any swarf, solder etc.
This product must not be modified in any way as this will invalidate the
guarantee.
Flexible Connecting Pipes
Curved
Slight 90°
round
bend angle

Installation Instructions

& User Guide
Please leave these instructions
with the end user
Product Code: EF KIT PK (D1)
Inlet Water Temperature Inlet Connections
Hot Water Supply
65°C
25°C
5°C
65°C
Recommended
Watch these Taps
being Fitted
Scan the QR code to visit our YouTube
channel and see a video guide of how
these taps are fitted.
Alternatively visit www.youtube.com/BristanTV

Pack Contents

x1
x1
x1
x1
x2
Kinks
Twists

Spare Parts

To replace any spare parts
for your tap, why not
scan the QR Code or
visit www.bristan.com
and search for your product.
Installation
1
If the surface the tap is being fitted to is over the
stated tolerance; or you feel the tap needs extra
stability, follow the alternative steps overleaf.
1/2" BSP
3
Flexible
Tails with
Isolation
Valves
Turn the hexagonal
key clockwise until
the base is secured.
6.0
mm
6
Grease the
O-Rings using the
Molykote Grease
provided.
8
Secure in place with
the grub screws using
2
Feed the base
through the
sink hole from
the top.
8mm
4
Screw the
flexible tails
into the base.
DO NOT
OVERTIGHTEN
7
You will now need
your EasyFit Tap.
Please refer to
those instructions
to check the Pack
Contents and
Tap Maintenance.
9
the tool provided.
Drop the Plain Inlet
Connector into
the base.
5
Connect
the hot and
cold water
connections.
Olive
Compression
Nut
Place your
desired tap
onto the base.
Thread the
hexagonal key
through the
EasyFit tool and
6.0
tighten the grub
mm
screws with an
extra 1/2 turn.
