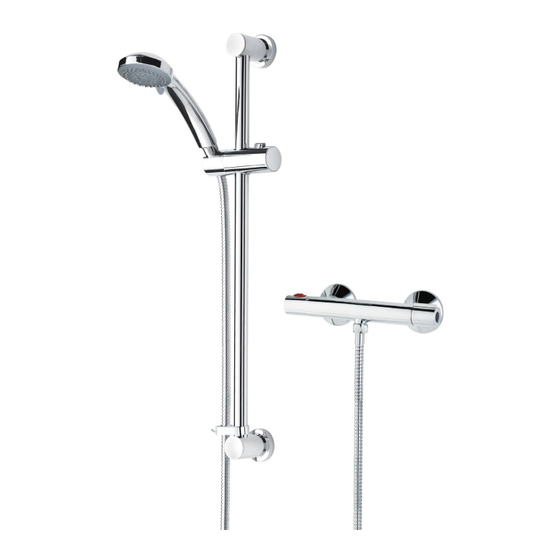

- Page 1 Zing Safe Touch Bar Mixer Multi Mode Kit Installation Instructions & User Guide Please keep these instructions for future reference and request of replacement parts...
-
Page 2: Table Of Contents
Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed these products with your enjoymentin mind. T o ensure that they work to their full potential, they need to be fitted correctly. These fitting instructions have been created to give you all of the Information youneed and, if youneed anyfurther help, please do not hesitate to give us a call on 0330 026 6273. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufacturedand supplied byBristan are safe providedtheyareinstalled correctly, used correctly and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to install this shower valve safely you must employ the services of an experienced qualified plumber. -
Page 4: General Information
General Information This product complies with the BS EN 1111:1999(HP) thermostatic mixing valvestandards and satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and current bylaws. Designed to be used within systems designed to BS 6700. BS 6700 recommends the temperature of stored water should never exceed 65ºC. A stored water temperature of 60ºC is considered sufficient to meet all normal requirements and will minimise the build up of lime scale in hard water areas (see Map of Hard Water Regions in the UK on page 24). -
Page 5: Specifications
Specifications Inlet Connections: G ½" male thread with 135-165mm centres Operating Pressure Range: Minimum. 0.2bar, Maximum5.0bar. Maximum Static Pressure:10.0bar. Note: Nominally equal (balanced) inlet supply pressures are required for optimum performance. If pressures are unequal, then a pressure reducing valve should be used. Maximum recommended imbalance between hot and cold supply should not exceed a ratio of 5:1 Maximum Outlet T emperature: Factory pre-set to 38ºC with push button override to46ºC (can be re-set to suit site conditions or personal preference). -
Page 6: Dimensions
Dimensions All dimensions are in mm’s and are approximate. -
Page 7: Features
Product Features 1. Water Flow Control Controls the amountor flow of water from the multi mode handset. 2. TemperatureControl Adjustable temperature control. The temperature control incorporates a safety stop facility limiting the water temperature to38ºC. T oobtain a higher watertemperature, press / slide the button on handle (2) and continue to turn the controlto the desired temperature. -
Page 8: Installation Requirements
Installation Requirements This shower valve must be installed in Important: If you install this shower compliance with currentwaterregulations. valve with a gravity fed system, there must If you have any doubts about the water be a minimum head (vertical distance) regulation requirements contact yourlocal from the underside of the cold water water services provider or usethe services... - Page 9 Installation Requirements Instantaneous Water Heater Unvented System Cold mainssupply Cold mainssupply Pumped System Pumped System (with Essex flange) 2mmin 2mmin If less than 1m seenote. 50mm Cold mainssupply Cold mainssupply Key: Isolating Reducin Shower Pump Essex Valve g Valve Valve Flang...
- Page 10 Installation Requirements These fittings need to be installed in Size of tap or Vertical distance accordance with the followingInstallation combination fitting. of outlet above Requirements and Notes (IRN) to ensure spill-over level. they meet the requirements of the Water Supply (Water Fittings) Regulations 1999 1.
- Page 11 Conditions of Use for ThermostaticMixer Valves Installation Requirements High Pressure Maximum Static Pressure (Bar) This valve has been approved for use in the Flow Pressure, Hot & Cold (Bar) 0.5 to 5 following designations: Hot Supply Temperature (ºC) Code Operating Pressure Application 55 to 65 HP-S...
- Page 12 Installation – Zing Shower Valve with Multi Mode Kit This Thermostatic Mixer Valveshould be installed in compliance with Water Regulations (referto General Information section). For further details contact your Local WaterAuthority. This TMV is suitable for use with the following systems: •...
- Page 13 3.Drill suitable holes in the wall surface atthe marked positions to accommodate the supply pipework. 4.Terminate the pipework in thewallensuring that the pipework is sunk in thewall. IMPORTANT: The water supply pipes to the Fig. 1 thermostatic Mixer Valve must be withthe Hot on the left and the Cold on the right when viewed from thefront.
- Page 14 Installing the Thermostatic Mixer Valve 1.Place the filter washers (3)into the connectors (1) 2. Position the shower valve (4) againstthe connectors (1) and carefullytighten the shower valve fixing nuts onto the connectors (1). Do not overtighten. Note: T ake care not to damage the finish of the shower valve fixing nuts.
- Page 15 Installing the Multi Mode kit...
-
Page 16: Commissioning
Commissioning Commissioning notes for Thermostatic MixingValves If there is no significant change to the set The first step in commissioning a outlet temperature (+/-2ºC or less change thermostatic mixing valve is to checkthe from the original setting) and the fail –safe following: shut off is functioning, then the valve is working correctly and no further service work... -
Page 17: In Service Testing
In-Service Testing Purpose The purpose of in service tests is to regularly monitor and record the performance of the thermostatic mixing valve. Deterioration in performance can indicate the need for service work on the valveand /or water supplies. Servicing Intervals T o reduce the buildup of lime scale and to ensure this shower works to its maximum performance, we recommend this shower isserviced every 6 –12 months depending on the hardness of your water. -
Page 18: Annex F
Annex F of D 08 (informative) Frequency of In-service tests General In the absence of any other instruction or guidance on the means of determining the appropriate frequency of in-service testing, the following proceduremay be used: a) 6 to 8 weeks after commissioning carry out the tests in ‘In-Service Tests’. b)12 to 15 weeks after commissioning carry out the tests detailed in ‘In-ServiceTests’. -
Page 19: Maintenance
Maintenance General Cleaning 4. Push the handle back onto the valvespindle and replace the handle, screw and handle Yourfitting has a high quality finish and should covercap. be treated with care to preserve the visible surfaces. All surfaces will wear if not cleaned Cartridge Maintenance correctly, the only safe way to clean yourmixer valve is to wipe with a soft damp cloth. -
Page 20: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or low flow rate Partially closed stop or service Open stop or service valve. and / or varying valve in water supply pipeworkto temperatures. the mixer valve. Instantaneous water heater Increase water flow rateor cycles on and off as the flow rate pressure through system or pressure is toolow. - Page 21 Troubleshooting Symptom Cause Remedy Maximum water Maximum water temperature set Reset maximum water temperature too hotor incorrectly. temperature. Refer to cold. ‘Setting/Commissioni ng’ sections. Outlet water Inlet filter is partiallyblocked. Check insert filters forany temperature too hot/ blockages and clean as cold.
-
Page 22: Guarantee
Telephone: 0330 026 6273 Email: enquire@bristan.com At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
