YARWAY SERIES 515/516* INTEGRAL STRAINER STEAM TRAPS
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
Before installation these instructions must be fully read and understood
RATINGS
Operating pressure ranges

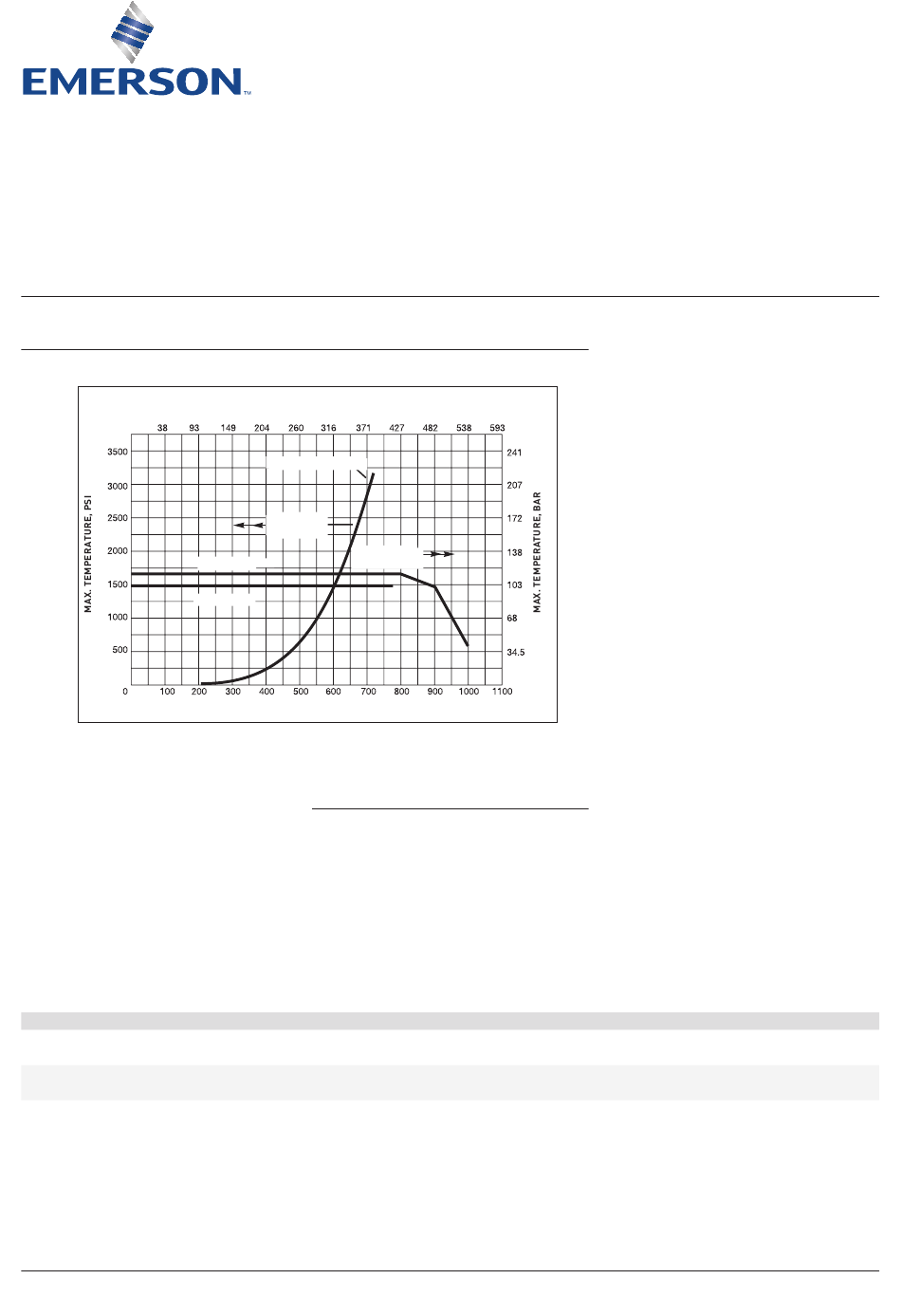

SHELL PRESSURE/TEMPERATURE RATINGS
Back Pressure Limits
Piston valve traps rated to 1500 psig (100 bar)
(incl.) are factory set to operate from 150 psig
(10 bar) to maximum rated pressure. Maximum
allowable back pressure at trap outlet equals
25% of pressure at trap inlet, based on absolute
pressures.
End Conn.
1/2", 3/4", 1"
Note: Series 515 socketweld end traps are chrome moly steel construction.
*Series 516 socketweld end traps are constructed from carbon steel.
Emerson.com/FinalControl
MAX. TEMPERATURE (C)
SATURATION CURVE
ALL LIQUID
PHASE
SERIES 515
SUPERHEAT
SERIES 516
MAX. TEMPERATURE (F)
SERIES NUMBERS
To determine the size, series number, and
pressure/temperature rating, refer to the
nameplate on the trap body.
Suffix Letter Identification
SW
Socketweld ends
A, B
Internal Part Size
R*
Commercial (flanges per ANSI Standard)
E*
Navy (flanges per MIL-T-960E)
Figure No.
Internal Parts Piston
515
A or B
516*
© 2018 Emerson. All Rights Reserved.
ALL
End Conn.
SW
SW
Rating
1500 psig (100 bar) - 875F (468C)
1500 psig (100 bar) - 775F (413C)
VCIOM-09537-EN 18/09
