Instruction Manual
D103365X012
Baumann™ 51000 Low Flow Control Valve
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction

The Baumann 51000 control valve (figure 1) is optimally designed for demanding low flow control and is a perfect fit
where space is at a premium. This compact package provides the connection integrity of flanged body globe valves,
while being significantly lighter and easier to install.

Scope of Manual

This instruction manual includes installation, maintenance, and parts information for the 51000 control valve and
Do not install, operate, or maintain Baumann 51000 control valves without being fully trained and qualified in valve,
actuator, and accessory installation, operation, and maintenance. To avoid personal injury or property damage, it is
important to carefully read, understand, and follow all the contents of this manual, including all safety cautions and
warnings. If you have any questions about these instructions, contact your Emerson Process Management sales office
before proceeding.
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .

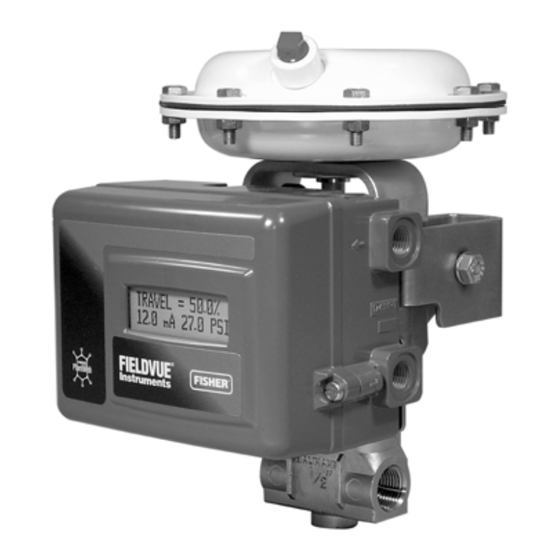

Figure 1. 51000 NPS 1/2 Control Valve with
Baumann 16 Actuator, and FIELDVUE™ DVC2000
1
Digital Valve Controller
1
2
2
3
3
4
4
5
6
9
W9066
51000 Valve
May 2012

Advertisement

Table of Contents
loading

Summary of Contents for Emerson Baumann 51000

  • Page 1: Table Of Contents

    W9066 Introduction The Baumann 51000 control valve (figure 1) is optimally designed for demanding low flow control and is a perfect fit where space is at a premium. This compact package provides the connection integrity of flanged body globe valves, while being significantly lighter and easier to install.
  • Page 2: Safety Precautions

    Do not expose this product to service conditions or variables other than those for which the product was intended. If you are not sure what these conditions are you should contact your Emerson Process Management sales office for more complete specifications.
  • Page 3: Installation

    Instruction Manual 51000 Valve D103365X012 May 2012 D The valve packing box may contain process fluids that are pressurized, even when the valve has been removed from the pipeline. Process fluids may spray out under pressure when removing the packing hardware or packing rings, or when loosening the packing box pipe plug.
  • Page 4: Plug And Packing Replacement

    Instruction Manual 51000 Valve May 2012 D103365X012 Plug and Packing Replacement Refer to figures 2 and 3. CAUTION When adjusting the valve stem, do not grip the stem directly with pliers or a wrench. This will damage the surface of the stem, and cause damage to the packing in the valve.
  • Page 5: Valve Reassembly

    Instruction Manual 51000 Valve D103365X012 May 2012 Figure 2. Baumann 51000 Valve Body Subassembly, Figure 3. Baumann 51000 Valve Body Subassembly, NPS 1/4 Soft Seat NPS 1/2 Alloy Valve Body Integral Seat FLOW FLOW E1230 E1232 Valve Reassembly 1. Place the cage gasket (key 2) and cage subassembly (key 3) in the valve body (key 1).
  • Page 6: Parts Ordering

    WARNING Use only genuine Fisherr replacement parts. Components that are not supplied by Emerson Process Management should not, under any circumstances, be used in any Fisher valve, because they may void your warranty, might adversely affect the...
  • Page 7 Instruction Manual 51000 Valve D103365X012 May 2012 Figure 5. Baumann 16 Actuator E1300 Table 2. Baumann 16 Actuator Part Numbers Key No. Description Part Number Yoke - Machined 81811 Spring 1/2" Stroke 4-15 psi 81860 Spring 1/2' Stroke 3-12 psi 81860 Actuator Stem 81840...
  • Page 8 51304 Stem Adapter Hex Jam Nut Baumann 16 Actuator Mounting Kit Part Number MTG51T16 Stem Adapter Jam Nut Travel Indicator Disc Table 4. Baumann 51000 Plug Selection Part Number Part Number Valve Size Plug Cv Marking Code ASTM A479 S21800 Annealed...
  • Page 9: Dimensions And Weights

    Instruction Manual 51000 Valve D103365X012 May 2012 Figure 6. Dimensions R185 R235 (R7.30) (R9.24) (4.86) (4.95) (5.01) 212 (8.35) (4.93) 166 (6.52) (8.05) 292 (11.48) (46.25) (5.75) DVC2000 DIGITAL VALVE CONTROLLER (2.38) 3660/3661 POSITIONER BAUMANN 16 1/2 NPT ACTUATOR WITH DVC6010 FIELDVUE DVC2000 (0.91)
  • Page 10: Baumann 16 Actuator

    Instruction Manual 51000 Valve May 2012 D103365X012 Figure 7. Baumann 16 Actuator (Front View) (6.98) (46.25) (5.75) (2.38) TA6000 TRANSDUCER 1/2 NPT (0.91) (inch) E1235 Figure 8. Baumann 16 Actuator with TA6000 (Top View) (inch) 98 (3.86) E1236...
  • Page 11 Instruction Manual 51000 Valve D103365X012 May 2012 Table 6. Actuator/Instrument Weights APPROXIMATE WEIGHT ACTUATOR INSTRUMENT Actuator without instrument Fisher 3660/3661 Positioner FIELDVUE DVC2000 FIELDVUE DVC6010 (Aluminum) 12.7 FIELDVUE DVC6010 (SST) 10.0 22.0 FIELDVUE DVC6010f 11.0 TA6000 Electropneumatic Transducer...
  • Page 12: Www.fisher.com

    Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user. Baumann, Fisher, and FIELDVUE are marks owned by one of the companies in the Emerson Process Management business unit of Emerson Electric Co.
