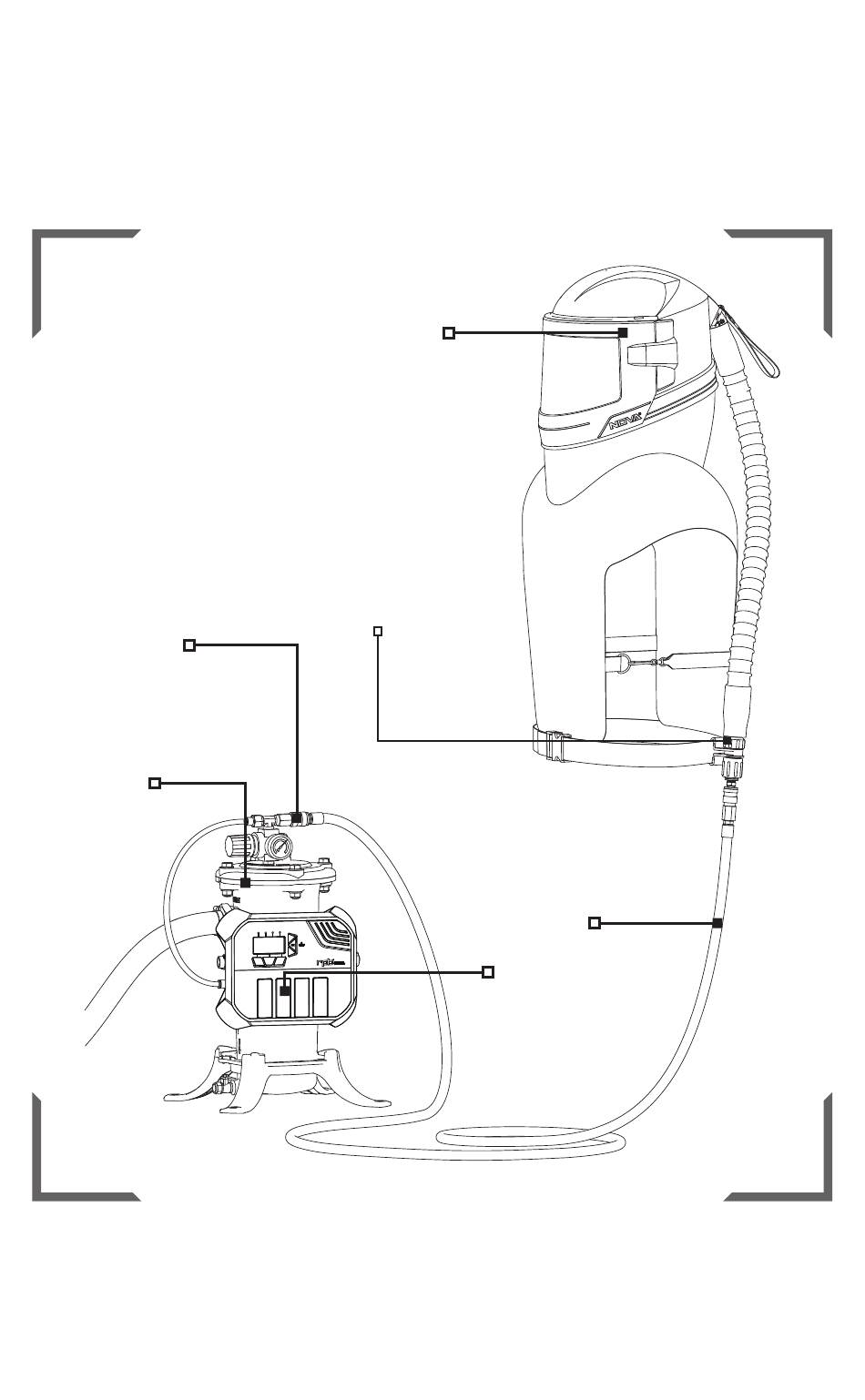

TYPICAL SUPPLIED AIR SETUP

POINT OF
ATTACHMENT
4. RADEX
®
AIRLINE
FILTRATION
SYSTEM
FIGURE 1.1
(Continued from page 4)
Compressed Gas Association Commodity Specification for Air, G-7.1-1989 Grade D or better
air, EN 12021, or AS/NZS 1715 requirements. See Employer Responsibilities section for the
other components that need to be sampled.
The RPB GX4 when used with the Carbon Monoxide Sensor Cartridge 08-420-01 satisfies
® ®
the requirements of OSHA rule 29 CFR 1910.134 for carbon monoxide monitoring.
1. RESPIRATOR
HEADTOP
ASSEMBLY
(NOVA 3 ® SHOWN)
2. BREATHING
TUBE
ASSEMBLY
AND FLOW
CONTROL
DEVICE
3. BREATHING
AIR LINE
5. GX4 GAS
®
MONITOR
5
