MAINTENANCE

MANIFOLD CHECK AND REPLACE

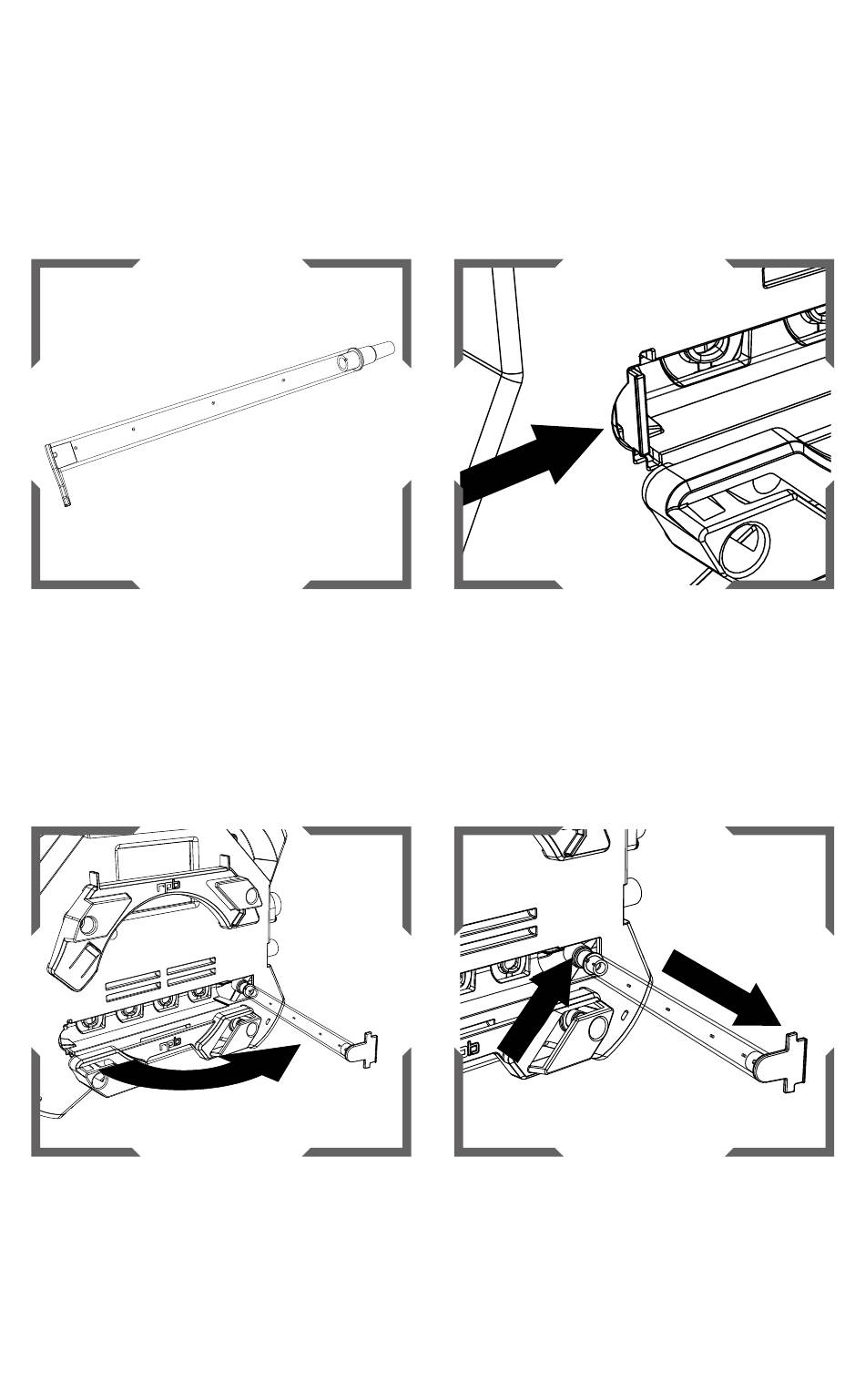

FIGURE 12.1
In the back of the GX4
(to distribute the air to the sensors)
comprised of a clear tube with end caps.
This needs to be checked weekly to ensure
it is clear of oil and debris. Note: Evidence of
oil indicates an air supply issue that needs
to be resolved.
FIGURE 12.3
Rotate the manifold so it is sticking straight
out from the back of the monitor.
, there is a manifold
®
FIGURE 12.2
To remove the manifold for inspection,
press in the green clip so it can be pulled
out through the notches of the monitor case.
FIGURE 12.4
At the base of the manifold is a push-lock
fitting with a green ring. Pull out the
manifold while pushing on the ring.
