at the opposite end. Position the spring head assembly torsion
arms on the hex extension rods at an angle away from the unit
so that the roll tube will not be touching the slide room.
6. Replace the mushroom-head end caps (Fig.2A).
7. Secure both hex extension rods to the spring head
assembly torsion arms using the #3 Phillips head screw
(Fig.1).
8. To relieve tension in the roll tube, grasp the roll tube and
remove the cotter pins.
RELEASE THE ROLL TUBE SLOWLY TO AVOID
DAMAGE TO THE ASSEMBLY AND SERIOUS INJURY.

Securing the Fabric

1. Extend and retract the room several times to ensure that
the fabric is square on the roll tube and unit.

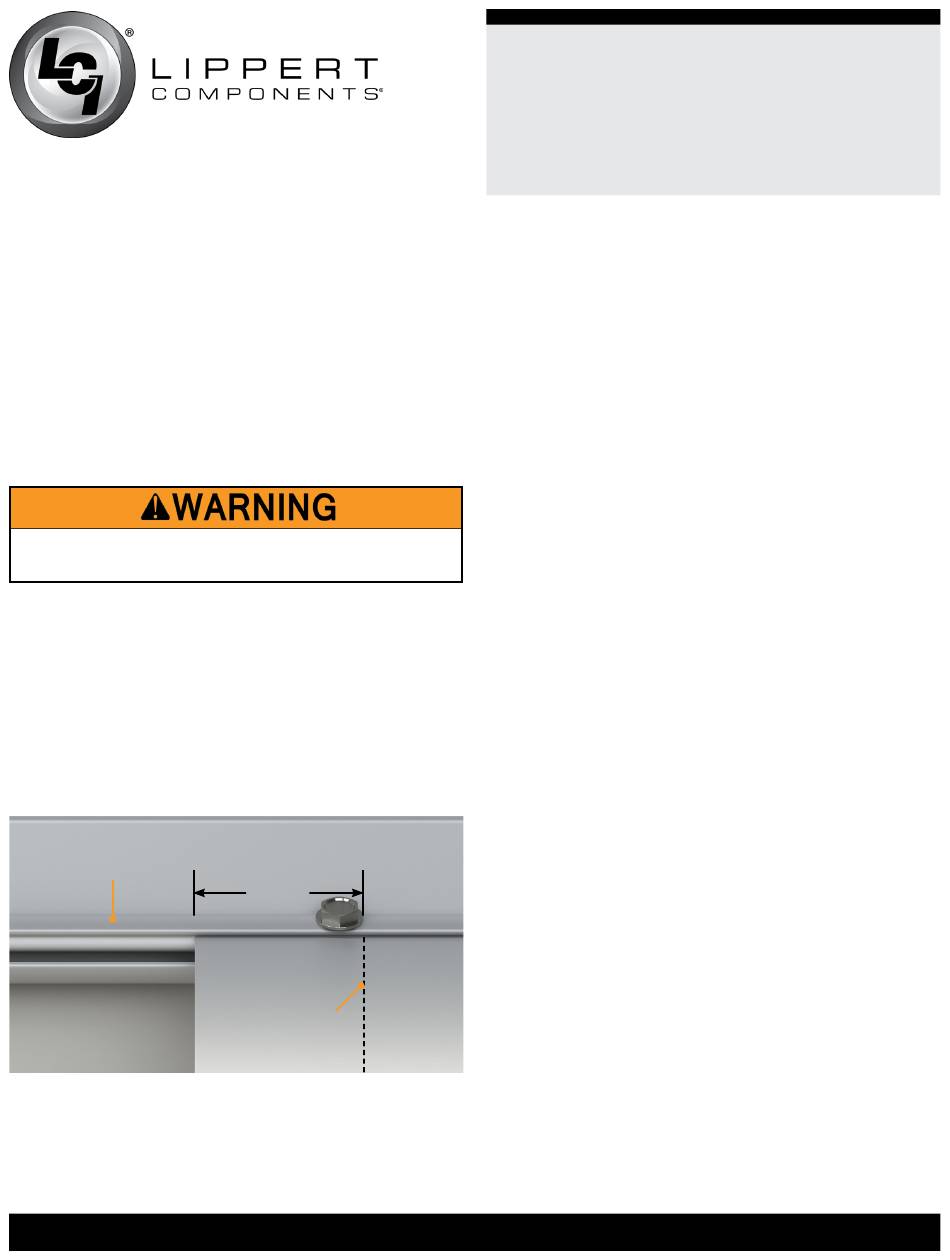

2. Secure the fabric in the awning rail no more than 1"
inside the edge of the fabric on both ends using a #6 x
hex head screw. Install the screw down through the awning
rail into the fabric and the polycord (Fig.7).
awning rail
Fig.7
lci1.com
1"
fabric stitching
574-537-8900
Solera
Fabric Replacement
Installation and Owner's Manual
(For Aftermarket Applications)

Maintenance

Fabric Care

If the awning is retracted while wet, extend the slide out
and let it dry as soon as conditions allow before retracting.
This will help prevent the formation of mildew and add
greatly to the life of the awning. Mildew does not form
on the fabric itself, but on the accumulated dust, dirt and
grime.
NOTE: Periodically clean vinyl or woven acrylic fabric
using a mixture of
warm water. Liberally apply the mixture on the top of the
fabric and retract the awning for 5 minutes. This will apply
the mixture to the bottom of the fabric as well. Extend the
awning and hose off with fresh water. Repeat if necessary.
Allow to dry before retracting.
1/2
"
5
CCD-0001265
Slider Awning
®
1/4
cup of dish soap and 5 gallons of
