Awning Fabric Replacement

FAILURE TO SUPPORT THE ROLL TUBE, FABRIC
AND AWNING ASSEMBLY DURING INSTALLATION
MAY RESULT IN PERSONAL INJURY OR PROPERTY
DAMAGE.

Fabric Installation

Installing Fabric Into Roll Tube

1. Measure the old fabric from end to end. Use that
measurement for your new fabric. Then cut to fit using
scissors and a straight edge. You can also use the old
fabric as a template.
2. To protect the fabric from damage during installation, file
any edges or burrs from the roll tube. To avoid damaging
the new fabric, it is recommended to apply masking tape
along the leading edge corners.
3. Thread the gray polycord into slot of roll tube, then
slowly slide fabric along the length of the roll tube.
4. Center the fabric on the roll tube and secure it with
previously removed screws.
5. With one person at each end of the roll tube, roll the
fabric so that it rolls over the top of the roll tube toward the
bead edge of the fabric.
6. Replace end cap on the roll tube, making sure to line-up
marks made on the end cap and roll tube (Fig.4C)
7. With one person firmly holding the roll tube, the other
person will turn the torsion arm clockwise 14 turns (if on
the left end of roll tube or counterclockwise if on the right
end of roll tube) in order to increase the tension.
8. Replace the cotter pin into the end cap and shaft of the
torsion arm assembly.
9. Repeat step 7 and step 8 on the opposite end of the roll
tube, making sure that both torsion arm brackets are facing
the same direction.

Installing Fabric Into Awning Rail

NOTE: During install, the slide room should be open a
minimum of 6 inches.
lci1.com 574-537-8900
Solera Slider Awning
®
Fabric Replacement
Installation and Owner's Manual
(For Aftermarket Applications)
B

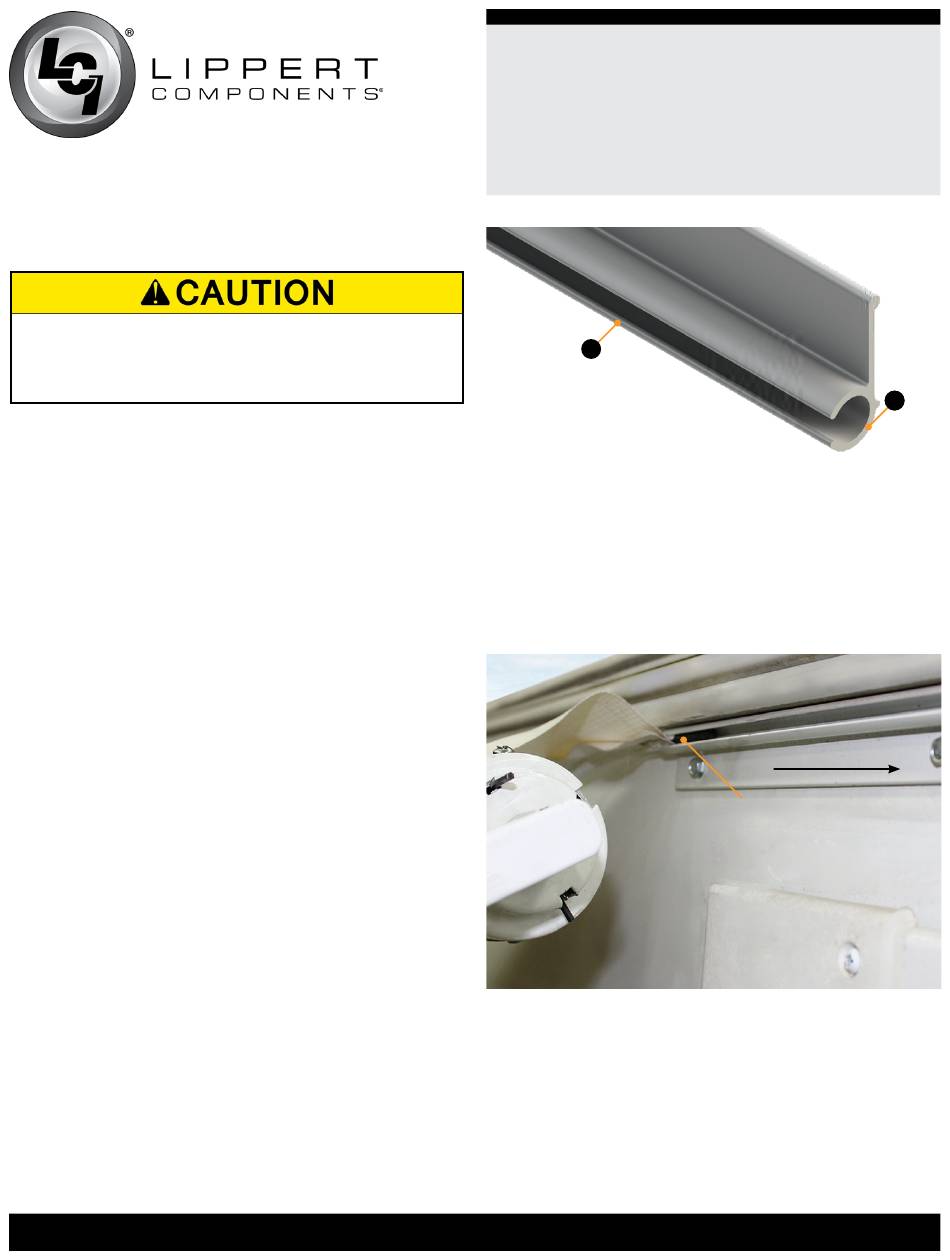

Fig.5
NOTE: Do not unroll the fabric more than one full turn,
otherwise tension may be lost in the roll tube spring.
1. To protect the fabric from damage during installation, file
any sharp edges or burrs from the awning rail.
2. To prepare for fabric installation, use a screwdriver
to spread open the awning rail on the installation end
(Fig.5A).
Fig.6
3. Spray the inside of the awning rail channel with silicone
lubricant (Fig.5B).
4. Using at least two people, feed the black polycord through the
awning rail channel (Fig.6).
5. Slide one of the spring head assembly torsion arms onto the
hex extension rod. By sliding the hex extension rod all the way
into the spring head assembly torsion arm, the other spring
head assembly torsion arm will slide onto the hex extension rod
4
CCD-0001265
slide fabric
polycord in channel
Rev: 02.08.19
A
