Summary of Contents for DOD FS300

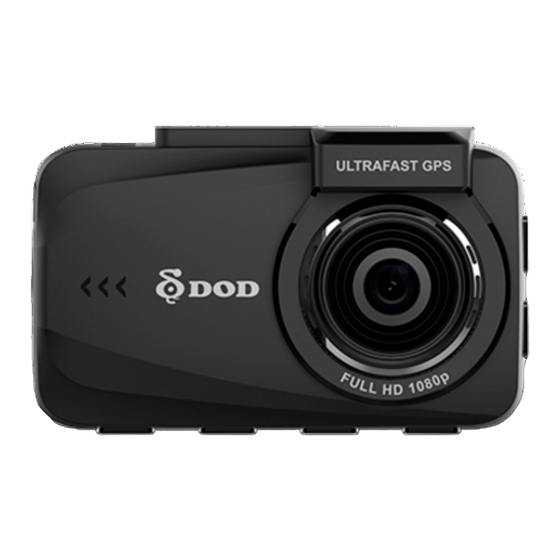

- Page 1 User Manual...
-
Page 2: Safety Precautions
Fluids may cause fire, electric shocks, or malfunctions. Avoid installing camera where it may obstruct the driver’s view or airbag deployment. Car Power Adaptor Use ONLY the DOD power adapter supplied with your unit. Other power adapters may create a safety hazard or damage the unit. - Page 3 The battery in the device self-discharges naturally over time whether the battery is used or not. Charge the dash camera for 5 minutes with the supplied DOD power cord if you are unable to turn on the camera.
- Page 4 Others Firmware Update See the support section on DOD Tech’s website for any available firmware updates and instructions. Note: Please ensure stable power during firmware update, otherwise may result in update failure or malfunction. When update completes, system will show option to format SD card.
- Page 5 Formatting the memory card will clear all files, including RO files. DOD is NOT responsible for any malfunctions caused from the use of disingenuous, modified, or unauthorized parts and accessories.
- Page 6 DOD is NOT responsible for the loss of any recorded video during operation due to unexpected factors or force majeure when driving. The video recordings filmed by this Dash Cam are intended for personal use ONLY.
-
Page 7: Function Keys
Flashing red: Unit is powered Connecting rear camera on and recording. Steady pink: Unit is powered cable on and charging but not DS5V Power Port【 】 recording. For use with the supplied DOD Steady green: Not charging Car Power Adaptor. -
Page 8: Arrow Keys
SOS Emergency File Arrow Keys【/】 Menu【 Press Arrow Keys to select 】 desired option in Menu Mode. Press to access menu. Press Arrow Keys to forward or Press this button to exit Menu backward video in Playback Mode. Mode. Press long on this button to Press ... - Page 9 To use with SD card, please format the microSD card in the camera menu to ensure correct format before initial use. To save recorded videos stably, DOD Tech recommends formatting your SD card every two weeks from in the camera...
- Page 10 Installing and Wiring 1080p+1080p Dual Camera Installation and wiring for front camera, please refer to blue part in the chart. Clean inside & outside of the windshield...
- Page 11 It is recommended to place the camera behind the rearview mirror without blocking either lenses or camera functions. DOD Tech recommends to place the rear cam at the top center of your rear glass for best images and shortest hanging wires after installation.
- Page 12 The wiring can be hidden in the headliner, seams and rubber strips around the perimeter of the windshield. Note: Always use the supplied DOD car power adaptor to avoid the unexpected damage. If grease, fingerprints, or blots are found on the external/internal windshield of the car, please wipe it clean or replace the windshield.
- Page 13 Continuously powered electrical outlet allows the camera to capture videos while you are away but it will result in vehicle battery drainage and may eventually prevent your car from starting. DOD Tech recommend to use hard-wire power kit for parking surveillance.
- Page 14 Video Directory: Normal driving videos are in the root directory and the protected files will be saved in the “EVENT” file. File-naming for front camera: FILE190320-142547F.MOV File-naming for front camera: FILE190320-142547F.NMEA File-naming for rear camera: FILE190320-142547R.MOV File-naming for rear camera: FILE190320-142547R.NMEA Blue number sequence in example above indicates year/month/day Green number sequence indicates time in 24H format including...
- Page 15 Functions ※ Functions varies by models, please see patch notes provided within update file for changes through firmware update. Function Describtion Resolution 1920x1080p 30fps Loop Recording Video will be saved as 30 seconds/1 minute/3 minutes length. Adjust brightness of video. Audio Recording Default: On Time Stamp...
- Page 16 Timezone Default: GMT+08:00 Customized Speed alert. Default: Off Speed unit km/h / mph Fatigue alert Default: Off Lane departure alert Default: Off Front distance alect Default: Off Speedcam alert Default: On Customized speedcam Add/delect speddcam location location Parking Mode Collision/Motion detection Delete file Normal Recording/Rear cam Recording /Urgent Recording /Rear...
- Page 17 File playback Normal Recording/Rear cam Recording /Urgent Recording /Rear event Recording/Picture/Rear Picture Date/Time Setting time and date Audio volume Adjust audio volume. Language Traditional Chinese Audio Default: On Display Setting sleep model of LCD Power frequency Default: 60Hz Format Format memory card and delete all files.
- Page 18 The limited warranty is valid for 12 months for the camera unit unless specially specified. The original warranty card or proof of purchase must be presented at DOD’s request. The serial number on the camera unit shall be clearly identified.
-
Page 19: Guarantee Certificate
Guarantee Certificate Product Model No. Serial No. Date of Purchase ／ ／ DOD authorized distributor... - Page 20 Copyright ©2019 DOD Tech Co., Ltd. All Rights Reserved Under the copyright laws, this manual may not be copied, in any way, shape, or form, without the written consent of DOD Tech Co., Ltd.
