Merlin GDP2

2.4

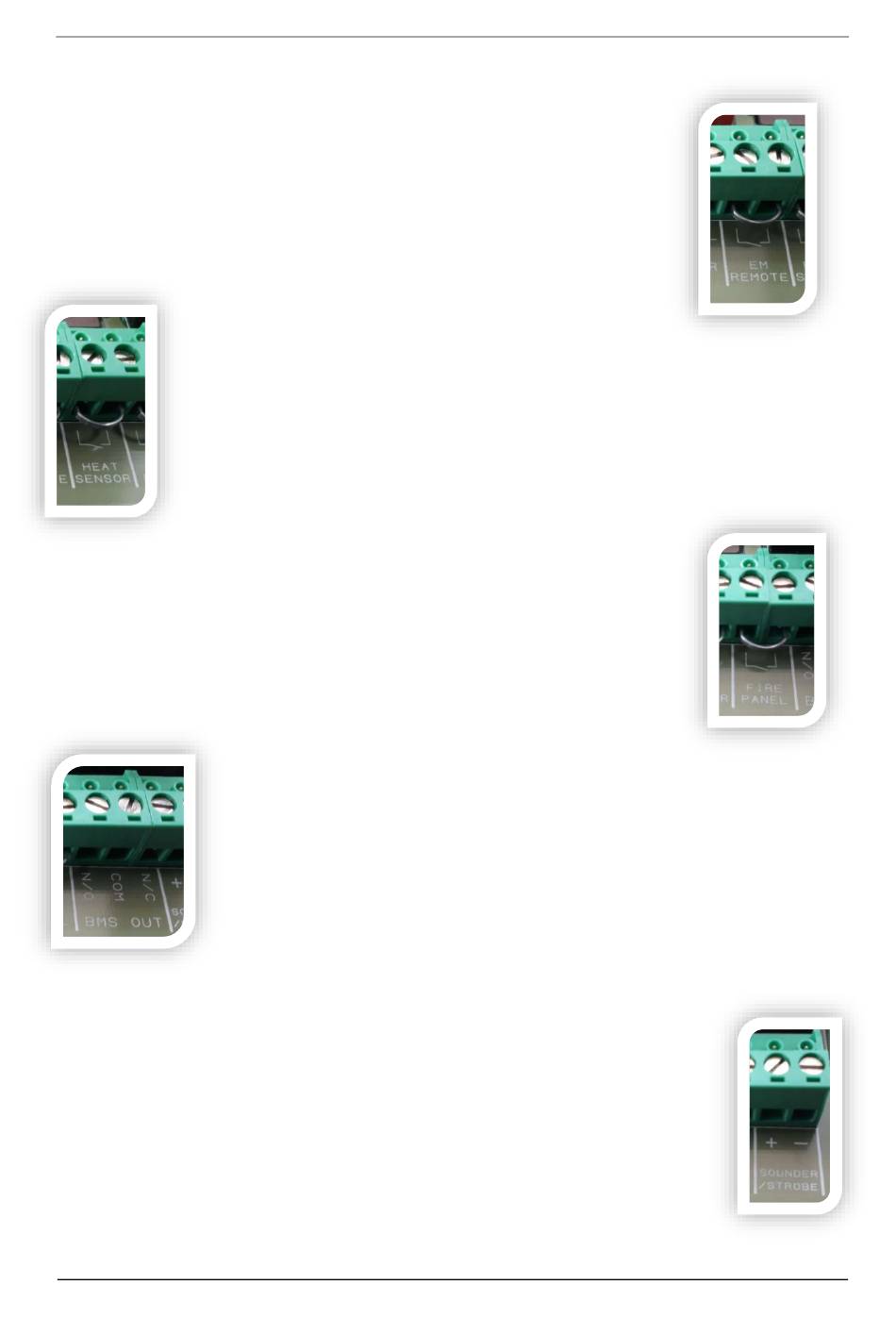

EM REMOTE (Remote emergency shut off buttons)

The terminal for remote emergency shut-off buttons is detailed on the

circuit board as [EM REMOTE].

These connections are linked out as a factory setting. Remote

emergency shut-off buttons should be volt free and wired to the Merlin

GDP2 using two-core cable.

The terminal for heat detectors is detailed as [HEAT SENSOR].

These connections are linked out as a factory setting.

Heat detectors should be volt free and wired to the Merlin GDP2 using two-

core cable.

2.6

The terminal for fire alarms is detailed as [FIRE PANEL].

These connections are linked out as a factory setting.

Fire alarms should be volt free and wired to the Merlin GDP2 using two-

core cable.

2.8

The terminal for audible/visual alarms is detailed on the circuit board as

[SOUNDER/STROBE].

Sounder alarms should be wired using low voltage cable and wired to the

Merlin GDP2 using two-core cable.

This terminal has a 24VDC output.

Rev: 05 05-19

2.7

Terminal connections are available on the circuit board for connections

to Building Management Systems etc.

Marked on the circuit board as [BMS OUT - N/O - COM - N/C] these are

volt free connections.
