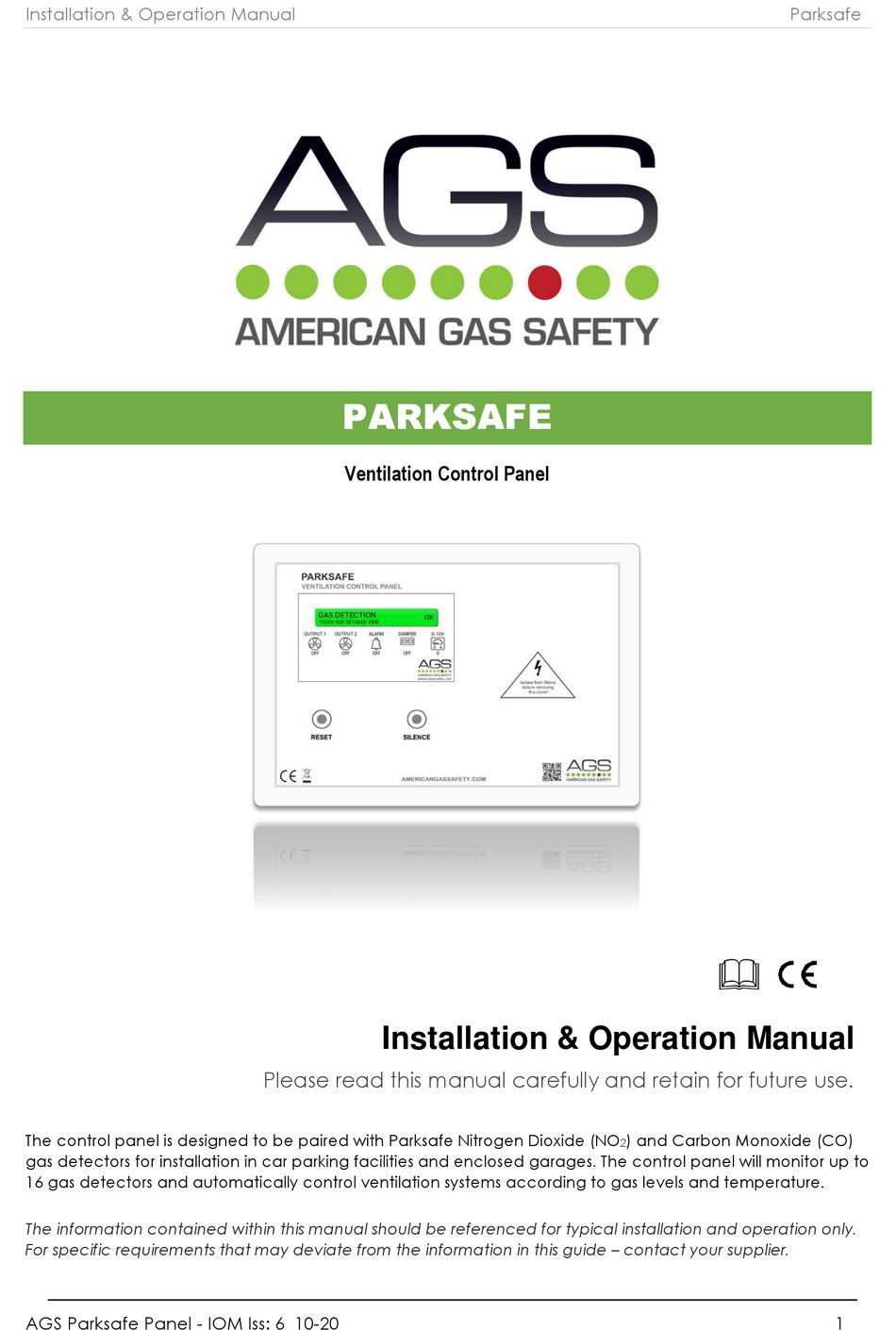

Installation & Operation Manual
Parksafe
PARKSAFE

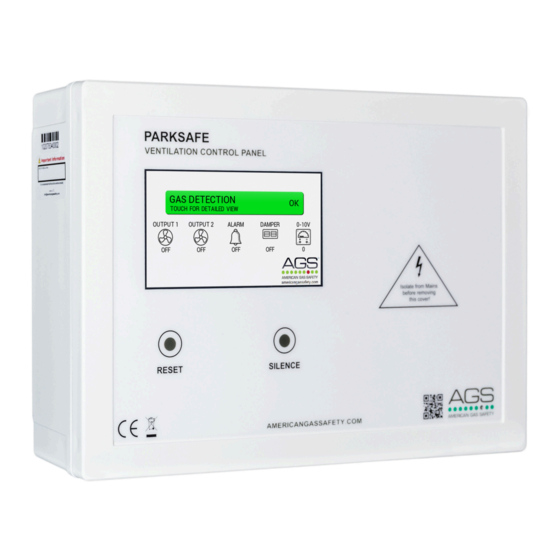

Ventilation Control Panel
Installation & Operation Manual
Please read this manual carefully and retain for future use.
The control panel is designed to be paired with Parksafe Nitrogen Dioxide (NO
) and Carbon Monoxide (CO)
2
gas detectors for installation in car parking facilities and enclosed garages. The control panel will monitor up to
16 gas detectors and automatically control ventilation systems according to gas levels and temperature.
The information contained within this manual should be referenced for typical installation and operation only.
For specific requirements that may deviate from the information in this guide – contact your supplier.
AGS Parksafe Panel - IOM Iss: 6 10-20
1
Advertisement
Table of Contents
Related Manuals for AGS PARKSAFE
Summary of Contents for AGS PARKSAFE
- Page 1 Installation & Operation Manual Please read this manual carefully and retain for future use. The control panel is designed to be paired with Parksafe Nitrogen Dioxide (NO ) and Carbon Monoxide (CO) gas detectors for installation in car parking facilities and enclosed garages. The control panel will monitor up to 16 gas detectors and automatically control ventilation systems according to gas levels and temperature.
-
Page 2: Table Of Contents
Accessing Detector Status Information ..................12 Detector Status ............................ 12 Gas Alarm Levels ..........................12 General Maintenance ........................13 EOL or Service Indication ........................13 Bump Testing ............................14 Service Record ............................. 15 INSTALLATION DETAILS ....................16 AGS Parksafe Panel - IOM Iss: 6 10-20... -
Page 3: Important Warning Statements
Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. Please contact your supplier or local authority for details of recycling schemes in your area. AGS Parksafe Panel - IOM Iss: 6 10-20... -
Page 4: Installation
OUTPUT 2. This is to have a live feed to the ventilation system wired through the contact so that the Parksafe can activate ventilation/ fans, this can either be via a direct live feed or via a run signal. There is another output relay that will activate after OUTPUT 2 has been activated for an optional extended period of time. -
Page 5: Mounting
Wiring of different circuits shall be separated by means of routing, clamping or barrier! All Class 2 wiring is to be installed within flexible tubing to maintain segregation between circuits! For MODBUS communications, a shielded and twisted pair cable is used! AGS Parksafe Panel - IOM Iss: 6 10-20... -
Page 6: Board Connections Overview
DAMPER RELAY This relay output can switch together with either OUTPUT 1, OUTPUT 2 or ALARM relays - selectable in the settings menu. 3. DETECTOR CHAIN 12-24Vdc power and Modbus communication data is wired to Parksafe gas detectors [DETECTOR CHAIN] - [+ / - / D+ / D-]. -
Page 7: Wiring Your Detector
ID Switches must be configured for each and every detector connected to a system to receive and display accurate data! We recommend a plan, map and/or marking the detector enclosures detailing ID and location! AGS Parksafe Panel - IOM Iss: 6 10-20... -
Page 8: Creating A Detector Chain
Parksafe Creating a Detector Chain Up to 16 Parksafe Detectors can be connected, chained in a parallel ‘daisy chain’ method up to approx. 500 yards from the panel depending on chain configuration, wire type for power and condition. Any other way may cause issues or damage to the overall system. -
Page 9: Settings Menu
Installation & Operation Manual Parksafe Settings Menu The Parksafe panel has a touch screen which allows the engineer/user to configure the system. Adjust the screen brightness. Change/select option. (Press or slide the cursor up and down) (Press the blue option box or press and hold) -
Page 10: Quick Tips
± 500 Yards Wire ratings: 18AWG min Housing Material Polylac PA-765 Flame Rating UL 94 Approvals CE, RoHS O/All Dimensions (H x W x D) mm / inch 7.08 x 10 x 3.03” AGS Parksafe Panel - IOM Iss: 6 10-20... -
Page 11: Operation
OPERATION First Power Up Upon connecting mains power, the Parksafe control panel will load for approximately 60 seconds. During this time the screen will display an ‘initialising’ screen. The panel will then begin establishing signals with any Parksafe gas detectors. -
Page 12: Silence & Reset
Detector signal lost, not installed or not configured correctly. Gas Alarm Levels GOOD PRE-ALARM ALARM Carbon Monoxide (CO) > 25 ppm 25 -100 ppm > 100 ppm Nitrogen Dioxide (NO < 0.7 ppm 0.7 - 2 ppm > 2 ppm AGS Parksafe Panel - IOM Iss: 6 10-20... -
Page 13: General Maintenance
When the detector displays the ‘SERVICE’ message contact your supplier immediately. Parksafe gas detectors will still operate but its sensitivity can be inhibited by external factors such as, dust; humidity; temperature fluctuations; cleaning products;... -
Page 14: Bump Testing
Remember, bump testing does not remove the need to have gas detectors inspected, calibrated and serviced periodically by a trained engineer. You should not attempt this yourself and should employ the services of a specialist company. For more information on this, contact us. AGS Parksafe Panel - IOM Iss: 6 10-20... -
Page 15: Service Record
Installation & Operation Manual Parksafe Service Record Date Device ID Pass Sign AGS Parksafe Panel - IOM Iss: 6 10-20... -
Page 16: Installation Details
4500 140th Ave North Suite 101 Clearwater FL 33762 Tel: (727) 608-4375 Fax: (727) 538-4237 info@americangassafety.com American Gas Safety LLC is the owner of this document and reserves all rights of modification without prior notice. AGS Parksafe Panel - IOM Iss: 6 10-20...
