Merlin GDP2
2

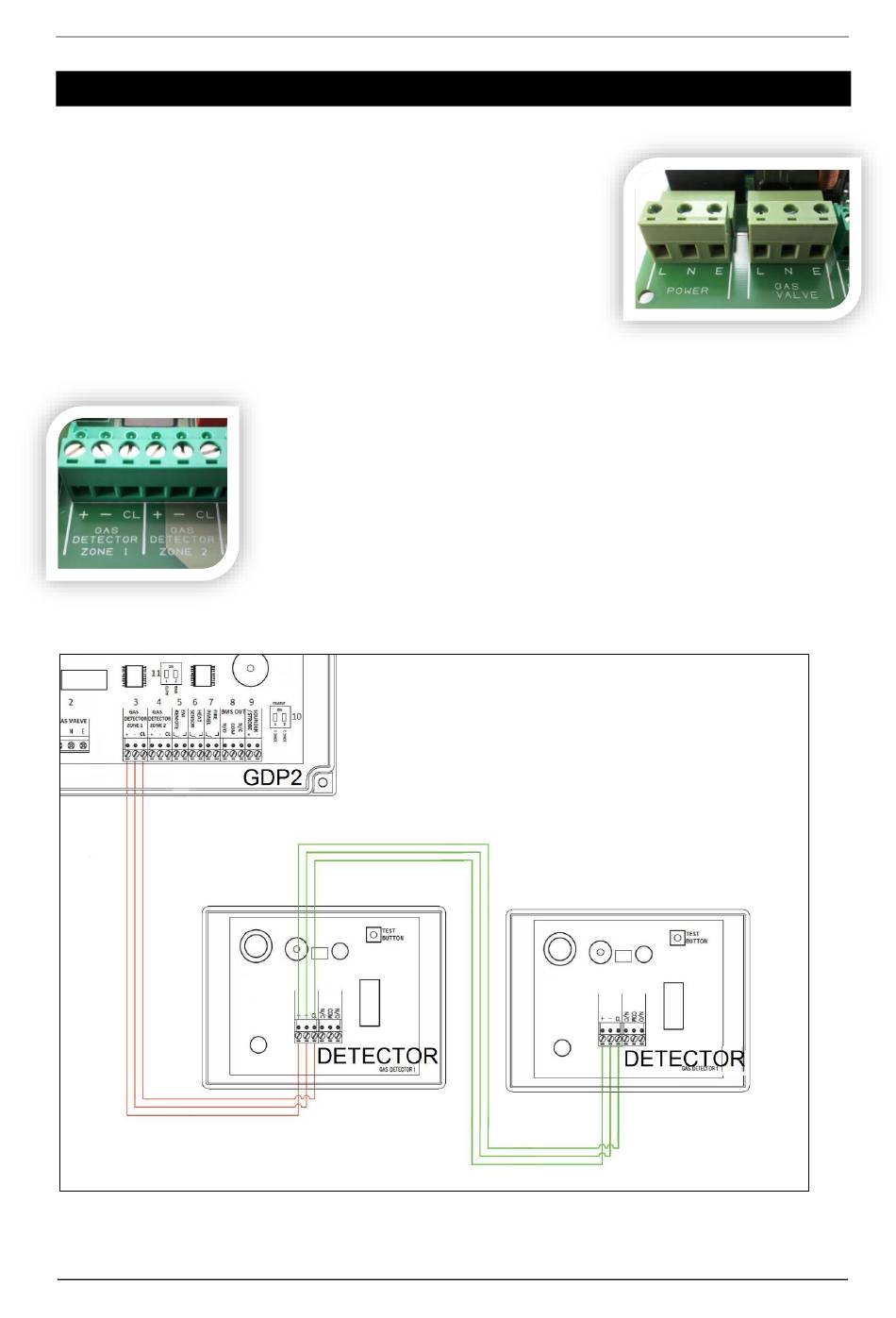

Circuit Board Terminals

2.1

POWER

A 110-120VAC electrical supply should be externally fused at 3
Amps and connected to the terminals marked [POWER L N E].
2.2

GAS VALVE

The gas solenoid valve should be powered using the terminals
on the Merlin GDP2 marked [GAS VALVE LNE].
Rev: 05 05-19
2.3 GAS DETECTOR ZONE 1 & 2
These connections are [+,-] and [CL] and can be wired to a Merlin
gas detector. Natural gas, Carbon monoxide or LPG.
See below diagram for multiple zone wiring. For more information,
refer to your detector manual.
User Guide
4
