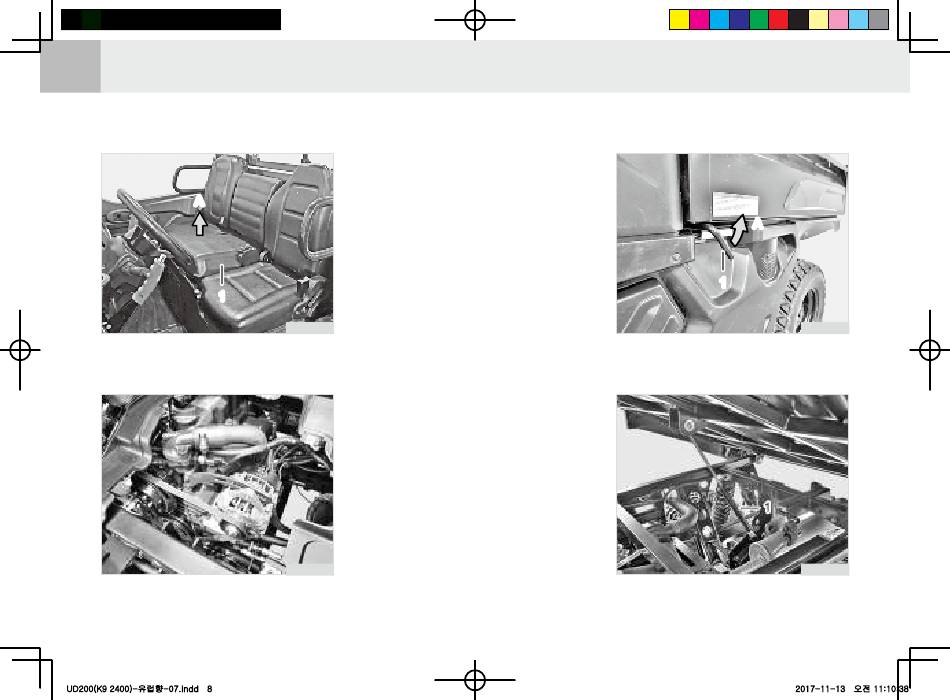

OPeNINg SeAT CUShION (B)

A A
1 1 1
(1) Passenger's Seat (2) Remove
UD200(K9 2400)-유럽향-07.indd 8
When disassembling the seat, dis-
connect the passenger's seat, re-
move the seat bottom plate, and then
inspect the engine compartment.
Most of the engine services, includ-
ing engine oil change and head
cover repair, can be performed by
opening the seat cushion.
U24O703a
U24O457b

RAISINg CARgO BeD (C)

A A
1 1 1
(1) Dumping lever
(a) Pull Up
(1) Gas Spring kit
U24O450a
U24O450a
