Jarvis SEC 180 Manual

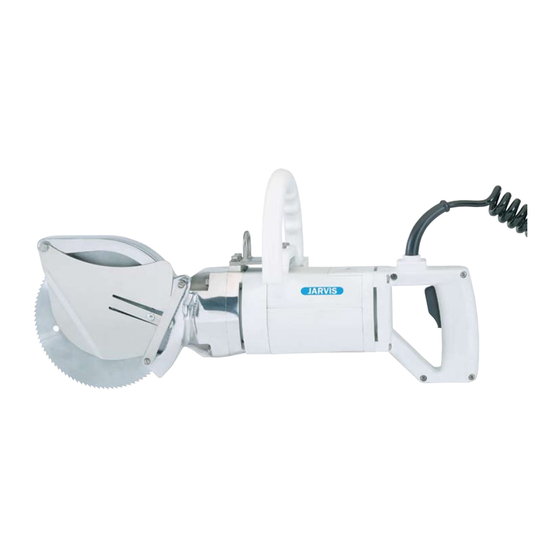

Circular breaking saw
Hide thumbs

Advertisement

Quick Links

EQUIPMENT
. . . . . . . . . .
SELECTION
Model SEC 180 Non-Indexing Depth Gage
Internal Brake
220 V
. . . . . . . . . . . . . . . . . . . . .
115 V
. . . . . . . . . . . . . . . . . . . . .
External Brake
42 V
. . . . . . . . . . . . . . . . . . . . . .
Model SEC 180 Indexing Depth Gage
Internal Brake
220 V
. . . . . . . . . . . . . . . . . . . . .
115 V
. . . . . . . . . . . . . . . . . . . . .
External Brake
220 V
. . . . . . . . . . . . . . . . . . . . .
115 V
. . . . . . . . . . . . . . . . . . . . .
42 V
. . . . . . . . . . . . . . . . . . . . . .
Model SEC 180 Dual Trigger & External Brake
220 V
. . . . . . . . . . . . . . . . . . . . .
115 V
. . . . . . . . . . . . . . . . . . . . .
42 V
. . . . . . . . . . . . . . . . . . . . . .
Balancer
. . . . . . . . . . . . . . . . . . . . . . . . .
JARVIS
6204012::.
Model SEC 180
Circular Breaking Saw
TABLE OF
Ordering No.
CONTENTS
4004049
4004048
4004047
4004085
4004104
4004134
4004133
4004122
4004094
4004093
4004092
4042002
PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457-4926
UNITED STATES OF AMERICA
TEL. 860-347-7271 FAX. 860-347-6978
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Page
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
2
3
4
10
11
11
12
13

Advertisement

loading
Need help?

Need help?

Do you have a question about the SEC 180 and is the answer not in the manual?

Questions and answers

Related Manuals for Jarvis SEC 180

Summary of Contents for Jarvis SEC 180

  • Page 1: Table Of Contents

    Installation Instructions ....Model SEC 180 Dual Trigger & External Brake 220 V .....

  • Page 2: Notice To Employer And Safety Director

    9. Avoid injury. Do not permit the tool to be misused. 10. If you resell or distribute a Jarvis product, you must provide the purchaser with the appropriate safety sheets and tool brochure. Additional copies of safety sheets and tool brochures will be provided upon request.

  • Page 3: Notice To Operators, Maintenance And Cleanup Personnel

    Model SEC 180 page 3 of 16 Keep hands clear. NOTICE TO OPERATORS, MAINTENANCE AND CLEANUP PERSONNEL REMOVE ANY MALFUNCTIONING TOOL FROM SERVICE REPORT ANY PROBLEMS TO YOUR SUPERVISOR 1. Disconnect the power supply in accordance with OSHA’s lockout/tagout procedures (29 CFR 1910.147) before making any blade changes.
  • Page 4 Model SEC 180 page 4 of 16 Figure A * Not used in current tools For indexing models only ** Wrench 8039146 is provided d For non–indexing models only ITEM PART NO. PART NAME ITEM PART NO.

  • Page 5: Parts Diagram And List

    Model SEC 180 page 5 of 16 Figure B Used on internal brake models only Used on external brake models only Used on models with single cord connections only Used on models with dual cord connections only ITEM PART NO.
  • Page 6 Model SEC 180 page 6 of 16 Figure C Anti–tie Down Handle Assembly Used on internal brake models only Used on external brake models only Used on models with single cord connections only Used on models with dual cord connections only ITEM PART NO.
  • Page 7 Model SEC 180 page 7 of 16 Figure D Remote Electronic Brake Single Trigger 3063121 (220V) 3063130 (115V) ITEM PART NO. PART NAME ITEM PART NO. PART NAME 1016445 Electrical Enclosure 1061545 Ferrule 1063393 Terminal Rail...
  • Page 8 Model SEC 180 page 8 of 16 Figure E Remote Electronic Brake Single Trigger 3063210 (42V) ITEM PART NO. PART NAME ITEM PART NO. PART NAME 1011262 Cord Connector 1063494 Gray Terminal Block 1007266 Locking Nut...
  • Page 9 Model SEC 180 page 9 of 16 Figure F Dual Trigger Remote Electronic Brake 3063141 (220V) ITEM PART NO. PART NAME 1016408 Electrical Enclosure ITEM PART NO. PART NAME 1032447 Mounting Plate 1063560 Grommet 1029302 Spacer...

  • Page 10: Special Tools

    Model SEC 180 page 10 of 16 Figure G Special Tools THE FOLLOWING TOOLS ARE RECOMMENDED FOR PROPER AND EFFECTIVE ASSEMBLY AND DISASSEMBLY OF THE JARVIS SEC180 CIRCULAR BREAKING SAW. BEARING EXTRACTION BEARING EXTRACTION TOOL 8039111 TOOL 8039171...

  • Page 11: Specifications

    2.6 in 65 mm for control box numbers for SEC 180 external brake Blade Diameter 7.1 in 180 mm models. For all other SEC 180 models, refer to Figure Weight 13.2 lb 6 kg 1 below. Vibration less (<) 120 dB <...

  • Page 12: Operating Instructions

    Model SEC 180 page 12 of 16 5 Plug the SEC 180 into the appropriate control box or OPERATION INSTRUCTIONS power supply outlet. See Figure 2 below as a guide. 1 Plug in the SEC 180.

  • Page 13: Maintenance Instructions

    3.3.4 Inspect all parts for wear and replace if nec- if necessary. essary. 1.4 Add Jarvis 1315 White Grease to grease fittings 3.3.4.1 Inspect blade for wear and sharpen or (item 21) on the gear housing (item 20). replace as necessary.
  • Page 14 (items 15–19) slides out of the gear 4.1.4 Tighten blade retaining screws with Jarvis housing. wrench 8039146. Prevent blade from turn- 5.6 Place crown gear (item 17) in an arbor press and ing by inserting blade locking pin (item 50) remove ball bearing (item 15).
  • Page 15 5.14 Remove needle bearing (item 42) from gear 7.10 Remove the needle bearing (item 42) and thrust housing. Jarvis tool 8039171 is available. See washer (item 41) from motor cover. Jarvis tool Figure G on page 10. 8039140 is available. See Figure G on page 10.
  • Page 16 9.3.2 Remove pan head screw (item 85). holder. 9.3.3 Remove switch activating lever (item 82) 8.1.2 Jarvis tool 8039140 is available for instal- and switches (item 86) from switch holder lation of needle bearing (item 42) and thrust (item 84).
