Jarvis 404 Wellsaw User Manual

Air powered reciprocating saw
Hide thumbs Also See for 404 Wellsaw:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
EQUIPMENT
SELECTION
. . . . . . . . . . . . .
Model 404
115V
End Cutting, 4TPI, 8 in Blade
Heavy Duty, 4TPI, 8 in Blade
End Cutting, 4TPI, 16 in Blade
Heavy Duty, 4TPI, 16 in Blade
Model 404
230V
End Cutting, 4TPI, 8 in Blade
Heavy Duty, 4TPI, 8 in Blade
End Cutting, 4TPI, 16 in Blade
Heavy Duty, 4TPI, 16 in Blade
Blades
4 TPI, 8 inch, End Cutting
4 TPI, 8 inch, Heavy Duty
4 TPI, 16 inch, End Cutting
4 TPI, 16 inch, Heavy Duty
Supports
8 inch blade, End Cutting
8 inch blade, Heavy Duty
16 inch blade, End Cutting
16 inch blade, Heavy Duty
Accessories
Jarvis Wellsaw Blade Lubricant
Balancer
. . . . . . . . . . . . . . . . . . . . . . .
JARVIS
6205006;:.
Air Powered Reciprocating
Ordering No.
. . . . .
4005220
. . . . .
4005221
. . . .
4005224
. . . .
4005225
. . . . .
4005222
. . . . .
4005223
. . . .
4005226
. . . .
4005227
. . . . . . . .
1023122
. . . . . . . .
1023123
. . . . . . .
1023121
. . . . . . .
1023124
. . . . . . . .
1058071
. . . . . . . .
1058075
. . . . . . .
1058070
. . . . . . .
1058074
. . .
1062023
4042028
Model 404 Wellsaw
NOT FOR HOME USE
TABLE OF
CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . .
• Safety Messages to Employer and
Safety Director
• Safety Messages to Operators,
Maintenance and Cleanup Personnel 3
• Parts Diagram and List
• Specifications
• Installation Instructions
• Operation Instructions
• Maintenance Instructions
Cutlerymania.com is an authorized online parts distributor supplying
®
Original Jarvis Products.
FAX: 973-751-7701 Telf: 973-751-7775
Saw
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . .
E-mail: info@cutlerymania.com
www.cutlerymania.com
Page
2
4
6
6
6
7
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 404 Wellsaw and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jarvis 404 Wellsaw

Summary of Contents for Jarvis 404 Wellsaw

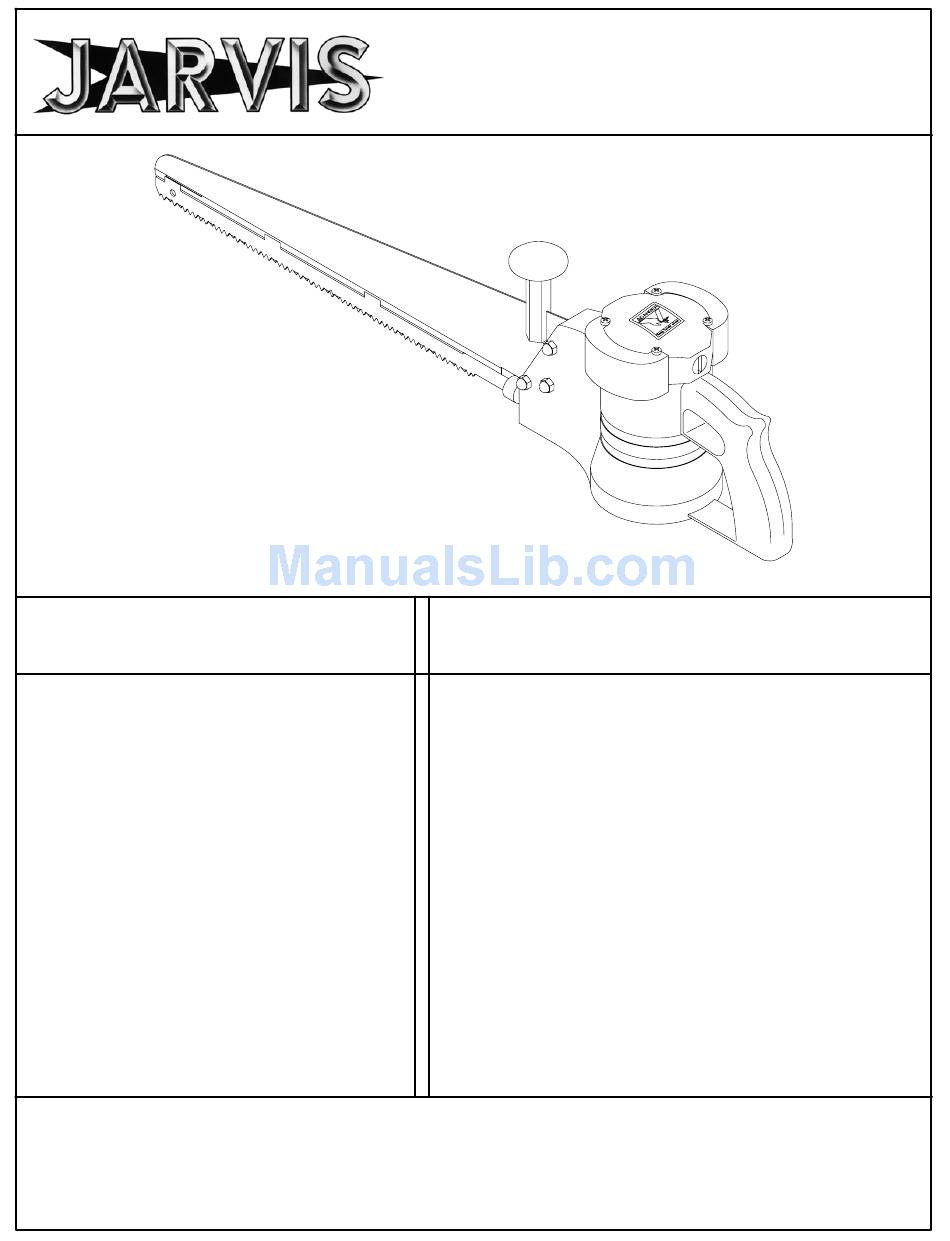

  • Page 1 Model 404 Wellsaw Air Powered Reciprocating NOT FOR HOME USE EQUIPMENT TABLE OF SELECTION ... . . Ordering No. CONTENTS ......

  • Page 2: Safety Messages To Employer And Safety Director

    10. Avoid injury. Do not permit the tool to be misused. 11. If you resell or distribute a Jarvis product, you must provide the purchaser with the appropriate safe- ty sheets and tool brochure. Additional copies of safety sheets and tool brochures will be provided upon request.

  • Page 3: Safety Messages To Operators, Maintenance And Cleanup Personnel

    12. Never depress the trigger unless you are going to use or test the tool. 13. Never make any alterations to the tool. Report or replace any missing or illegible labels. JARVIS Cutlerymania.com is an authorized online parts distributor supplying ® Original Jarvis Products. E-mail: info@cutlerymania.com FAX: 973-751-7701 Telf: 973-751-7775 www.cutlerymania.com 6205006;:.
  • Page 4 MODEL 404 pg 4 of 8 JARVIS Cutlerymania.com is an authorized online parts distributor supplying ® Original Jarvis Products. E-mail: info@cutlerymania.com FAX: 973-751-7701 Telf: 973-751-7775 www.cutlerymania.com 6205006;:.

  • Page 5: Parts List

    Cord w/o Strain Relief 3061152 Service Kit (items 11, 13, 1063125 501294 Strain Relief 27, 33, 38 and 42) JARVIS Cutlerymania.com is an authorized online parts distributor supplying ® Original Jarvis Products. E-mail: info@cutlerymania.com FAX: 973-751-7701 Telf: 973-751-7775 www.cutlerymania.com 6205006;:.

  • Page 6: Specifications

    Never connect the green A. AVERAGE CUTTING AND RIPPING: wire to a live terminal. If your Jarvis Wellsaw is the 115 1. Place your work piece on a solid support at a volt model, it has a plug that looks like figure ”A”. If convenient working height.

  • Page 7: Maintenance Instructions

    1 inch. heating. 6. The saw should be pushed firmly into the mate- 2. New blades can be purchased from Jarvis. rial while cutting. MAINTENANCE INSTRUCTIONS 7. Do not allow the saw blade or the blade support to leave the work piece while cutting.

  • Page 8: Blade Installation

    2. Remove handle cover (item 27). C. BLADE REMOVAL: 3. Remove switch (item 28). Remove the two NOTE: Your Jarvis Wellsaw is equipped with a wires from the stator (item 9) and the two wires hex key (item 22) for removing the blade. This from the cord (item 51).
