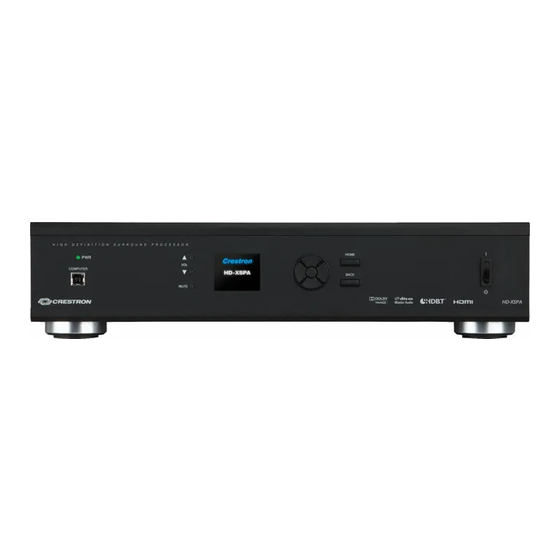

Crestron HDI-XSPA Supplemental Manual
4k ultra high-definition 7.1 surround sound av receiver
Hide thumbs
Also See for HDI-XSPA:
- Operations & installation manual (60 pages) ,
- Do manual (2 pages) ,
- Quick start manual (10 pages)
Subscribe to Our Youtube Channel
Related Manuals for Crestron HDI-XSPA
Summary of Contents for Crestron HDI-XSPA
- Page 1 HD(I)-XSPA 4K Ultra High-Definition 7.1 Surround Sound AV Receiver Supplemental Guide Crestron Electronics, Inc.
- Page 2 HDMI Licensing, LLC in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others.
-
Page 3: Table Of Contents
Contents Introduction Internal Block Diagrams Fuse Replacement Configuration Using the Installer Menu ..................4 Configure the Inputs ....................5 Configure the Outputs ..................... 7 Configure the Network ..................10 Configure the Front Panel..................15 Operation Source ........................17 Theater ......................... 17 Downmix ....................... -
Page 5: Introduction
The HD-XSPA and HDI-XSPA are functionally identical. For simplicity within this guide, the term “HD-XSPA” is used except where noted. For more information, refer to the HD(I)-XSPA DO Guide (Doc. 7730) at www.crestron.com/manuals... -
Page 6: Internal Block Diagrams
Internal Block Diagrams The following diagrams represent the switching and DSP capabilities of the HD-XSPA. Internal Block Diagram of the HD-XSPA 5 x 1 HDMI ® HDMI 3 Switcher HDMI 4 SPEAKERS HDMI 5 Back/Downmix Left Back/Downmix Right S/PDIF Surround Left Optical Surround Right Audio... -
Page 7: Fuse Replacement
HD-XSPA DSP Detail 2-Channel Decoding Downmix (7.1 and Downmix) Volume/Tone/ Loudness Bass Management 2-Channel Downmix Volume Trim Back/Downmix L/R 4 x 2 Switch Delay (Up To 100 ms Per Channel) Back L/R Front L/R, Center, Surround L/R Fuse Replacement If the HD-XSPA does not power up when it is plugged into an ac outlet, the fuse may need to be replaced. -
Page 8: Configuration
7. Plug in the HD-XSPA. Configuration The HD-XSPA can be configured with the front panel controls or with Crestron Toolbox ™ For details on using Crestron Toolbox, please refer to the Crestron Toolbox help file. -
Page 9: Configure The Inputs
Password Screen Password [0]000 3. Use the Nav Pad to enter the password. To select a number, press up or down on the Nav Pad. To move the cursor left or right, press left or right on the Nav Pad. When the password is displayed, move the cursor to the rightmost digit, and then press the center button of the Nav Pad. - Page 10 Inputs Menu Inputs HDMI 1 HDMI 2 HDMI 3 3. Press up or down on the Nav Pad to highlight the input to be configured, and then press the center button of the Nav Pad. The selected input’s menu is displayed. Input Menu (DM Shown) Name Compensation...
-
Page 11: Configure The Outputs
Compensation Screen Compensation -10dB +10dB 0.0dB 2. Press right or left on the Nav Pad to select the amount of compensation to be applied, and then press the center button of the Nav Pad. The display returns to the previous menu. To cancel and return to the previous menu, press BACK. - Page 12 2. Press up or down on the Nav Pad to highlight Balance, and then press the center button of the Nav Pad. The Balance screen is displayed. Balance Screen Balance 3. Press right or left on the Nav Pad to adjust the balance, and then press the center button of the Nav Pad.
- Page 13 Maximum Volume (Theater and Downmix Output) The maximum volume setting is the highest volume setting to which an output can be set. Perform the following to adjust the maximum volume: 1. Select the output to be configured as described in “Configure the Outputs” on page 2.
-
Page 14: Configure The Network
® switch, the DM switch can be used to configure the network settings. Refer to the DigitalMedia™ Design Guide (Doc. 4546) at www.crestron.com/manuals for details. Perform the following to configure the Ethernet settings: 1. Open the Installer menu as described in “Open the Installer Menu” on page 4. - Page 15 Network Status Menu Network Status Basic Advanced 3. Press up or down on the Nav Pad to highlight the desired level of detail to be displayed (Basic or Advanced), and then press the center button of the Nav Pad. Basic shows the status of the Ethernet link, the HD-XSPA’s IP address, and the hostname of the master control system.
- Page 16 IP Address Screen IP Address [10].0.0. 1 11 3. Press up or down on the Nav Pad to set the first octet of the IP address. 4. Press left or right on the Nav Pad to move the cursor between octets (or press the center button of the Nav Pad to move to the next octet) and select one for editing.
- Page 17 6. To save the subnet mask and return to the Network menu, move the cursor to the rightmost octet, and then press the center button of the Nav Pad. To cancel the operation and return to the previous screen, press BACK. If any changes were made, the HD-XSPA reboots upon exiting the Installer menu.
- Page 18 Control System IP ID IP Address 3. Set the IP ID that identifies the HD-XSPA in the Crestron Studio™ (or SIMPL Windows) program: a. Press up or down on the Nav Pad to highlight IP ID, and then press the center button of the Nav Pad.
-
Page 19: Configure The Front Panel
d. Set each octet until the correct IP address is displayed. e. To save the IP address and return to the Control System menu, move the cursor to the rightmost octet, and then press the center button of the Nav Pad. - Page 20 NOTE: When locked, only the BACK button can be used to access the Installer menu. Password The password for opening the Installer menu can be changed. Perform the following to change the password: 1. Open the Control menu as described in “Configure the Front Panel” on page 15. 2.
-
Page 21: Operation
To cancel at any point, press up or down on the Nav Pad to highlight No, and then press the center button of the Nav Pad. Operation Controls for the theater output, downmix output, and display are available from the HD-XSPA menu. - Page 22 2. Press up or down on the Nav Pad to highlight Bass, and then press the center button of the Nav Pad. The Bass screen is displayed. Bass Screen Bass -12dB +12dB 0.0dB 3. Press left or right to adjust the bass level, and then press the center button of the Nav Pad.
- Page 23 DRC Menu Selection Level 3. Perform the following to customize the DRC: Selection sets the DRC type. a. Press up or down on the Nav Pad to highlight Selection, and then press the center button of the Nav Pad. The DRC Selection menu is displayed.
-
Page 24: Downmix
Nav Pad. The setting toggles between On and Off. Equalizer The HD-XSPA can use a custom equalization setting that is created in Crestron Toolbox. Perform the following to set the equalization: 1. Open the Theater menu as described in “Theater” on page 17. - Page 25 Downmix Menu Downmix Mute: Off Bass Treble Loudness: Off Mute The mute function for the downmix output is set from the Downmix menu. NOTE: While the theater output can be muted with the MUTE button, the downmix output can only be muted with this method or a control system program. Perform the following to mute or unmute the downmix output: 1.
-
Page 26: Display
2. Press up or down on the Nav Pad to highlight Treble, and then press the center button of the Nav Pad. The Treble screen is displayed. Treble Screen Treble -12dB +12dB 0.0dB 3. Press left or right on the Nav Pad to adjust the treble level, and then press the center button of the Nav Pad. - Page 27 This page is intentionally left blank. HD(I)-XSPA: 4K UHD Surround Sound AV Receiver • 23 Supplemental Guide – DOC. 7448E...
- Page 28 Crestron Electronics, Inc. Supplemental Guide – DOC. 7448E 15 Volvo Drive Rockleigh, NJ 07647 (2035045) Tel: 888.CRESTRON 02.15 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
