Mutable Instruments Kinks Installation page 2

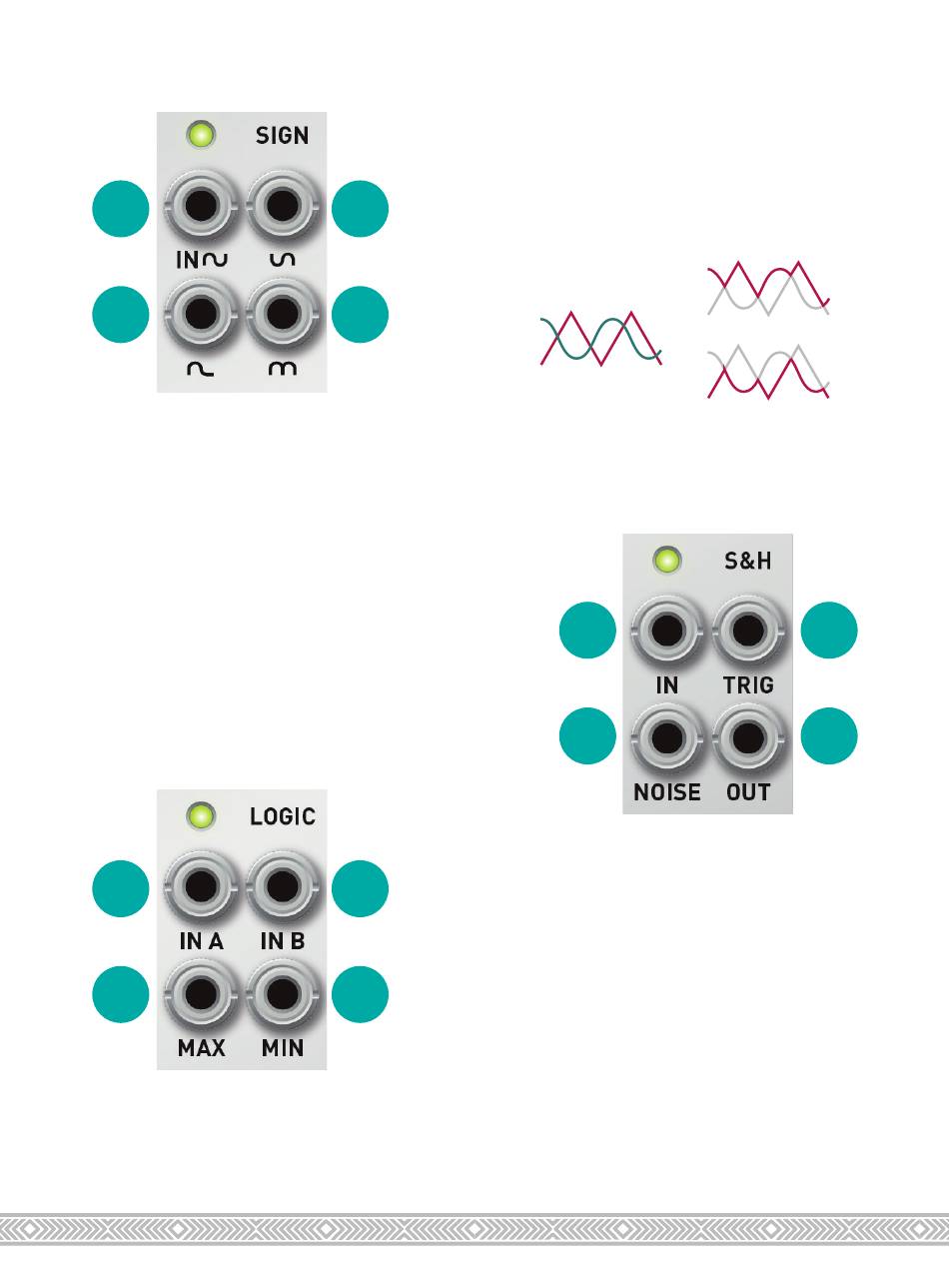

Rectifier and inverter
1
3
1. Signal input.
2. Inverted output.
3. Half-wave rectified output.
The negative half of the signal
is clipped to 0V.
4. Full-wave rectified output.
The negative half of the signal
is inverted.
Analog logic
1
3
1, 2. Signal inputs.
3. Analog OR (maximum,
peaks) output.
4.
troughs) output.
Try this with envelopes or
LFOs, or to create new wave-
2
shapes from VCO outputs.
4
Sample&hold and
white noise
1.
the white noise generator.
2
2.
signal with sharp rising edges
(clock/gate/trigger generator,
4
square LFO or VCO).
3.
4.
Analog AND (minimum,
MAX
Input signals
MIN
1
3
Signal input, normalized to
Trigger input. Requires a
Noise generator output.
Sample and hold output.
2
4
