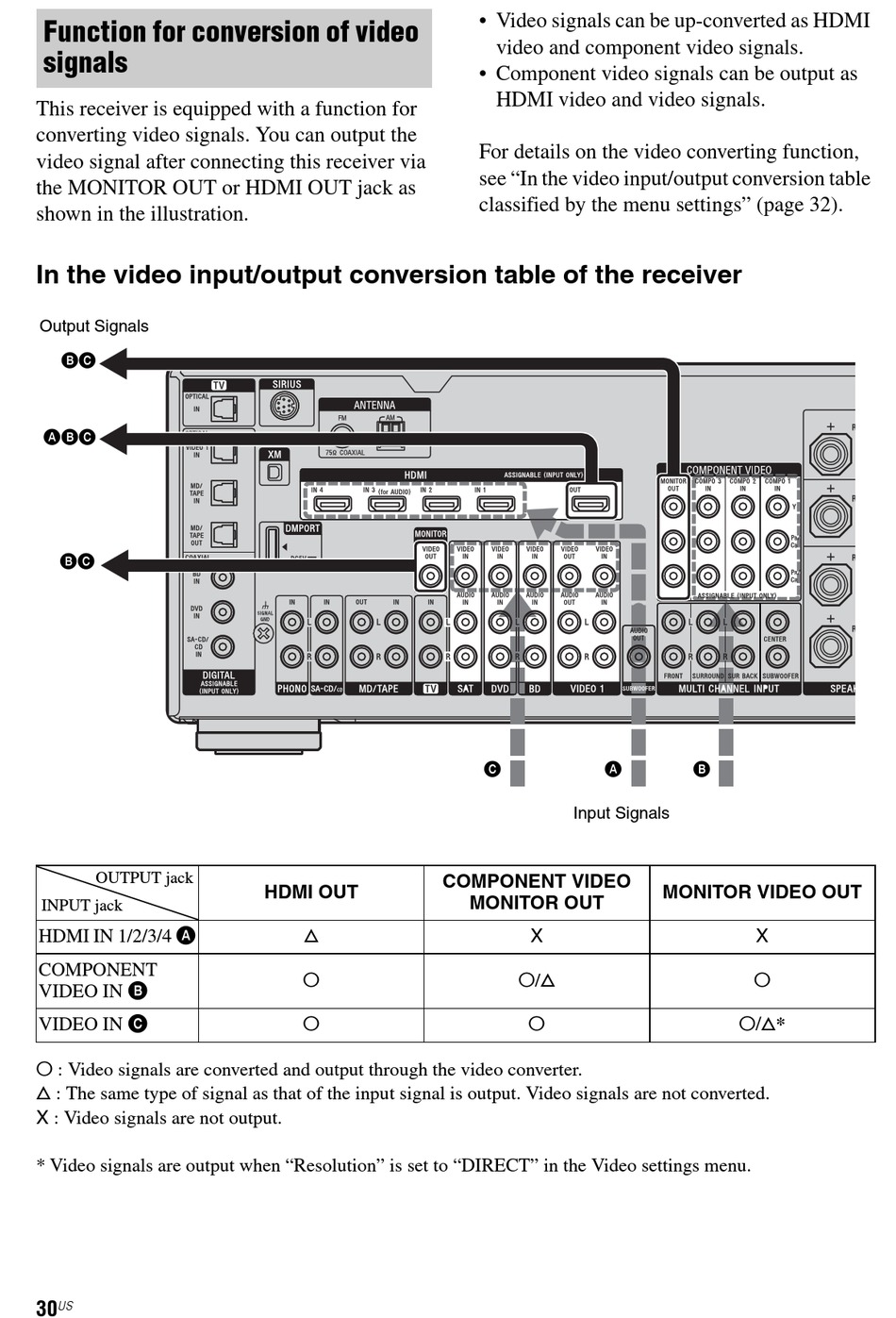

Function for conversion of video
signals
This receiver is equipped with a function for
converting video signals. You can output the
video signal after connecting this receiver via
the MONITOR OUT or HDMI OUT jack as
shown in the illustration.
In the video input/output conversion table of the receiver
Output Signals
BC
ABC
BC
OUTPUT jack
INPUT jack
HDMI IN 1/2/3/4 A
COMPONENT
VIDEO IN B
VIDEO IN C
a : Video signals are converted and output through the video converter.
f : The same type of signal as that of the input signal is output. Video signals are not converted.
X : Video signals are not output.
* Video signals are output when "Resolution" is set to "DIRECT" in the Video settings menu.
US
30
HDMI OUT
f
a
a
• Video signals can be up-converted as HDMI
video and component video signals.
• Component video signals can be output as
HDMI video and video signals.
For details on the video converting function,
see "In the video input/output conversion table
classified by the menu settings" (page 32).
C A
Input Signals
COMPONENT VIDEO
MONITOR OUT
X
a/f
a
B
MONITOR VIDEO OUT
X
a
a/f*
