Summary of Contents for Trinity BAMBOO KITCHEN ISLAND W/ DRAWERS

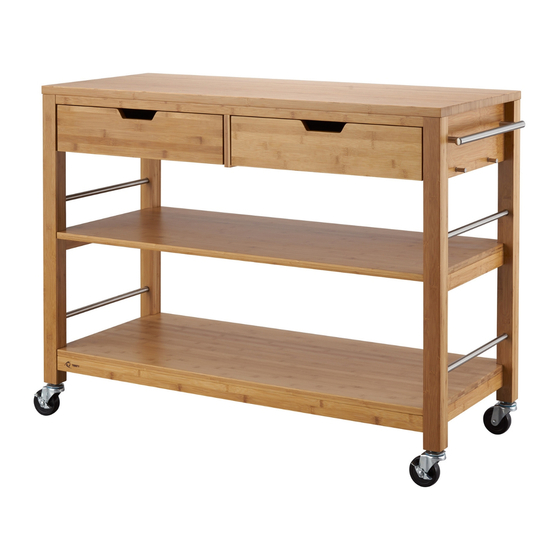

- Page 1 OWNER’S MANUAL 48” BAMBOO KITCHEN ISLAND W/ DRAWERS...
- Page 2 PARTS LIST Your 48” Bamboo Kitchen Island with Drawers should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact our Customer Service.
- Page 3 PARTS LIST DRAWER BOTTOM SCREW LONG DRAWER DOWEL PANEL (2) (34) + (2) extra SCREW (16) (22) + (2) extra black HANGER STUD (7) NON-LOCKING LOCKING WASHER (4) CASTER (2) CASTER (2) HANDLE (2) HANDLE SCREW (4) WRENCH (1) SCREWDRIVER (1) silver CONNECTOR CAM LOCK (4)
- Page 4 ASSEMBLY INSTRUCTIONS STEP 1 Lay LOWER SHELF (E) on a clean surface with E (1) G (2) AA (6) CC (4) II (1) holes facing up. Insert (4) DOWELS (CC) in the inner holes as pictured. Orient LOWER SHELF FRAME (G) with our logo facing out.
- Page 5 ASSEMBLY INSTRUCTIONS STEP 3 Screw (2) CONNECTOR SCREWS (LL) to RIGHT II (1) F (1) LL (2) MM (2) SIDE FRAME (C) as shown with SCREWDRIVER (II). Insert (2) CAM LOCKS (MM) to BACK FRAME (F) with pointer arrow pointing away from the edge.
- Page 6 ASSEMBLY INSTRUCTIONS STEP 5 Take a NON-LOCKING CASTER (EE) and insert threaded stem through WASHER (GG) and screw into one of the rear legs. Tighten with EE (2) FF (2) GG (4) HH (1) WRENCH (HH). Repeat with the other NON- LOCKING CASTER (EE).
- Page 7 ASSEMBLY INSTRUCTIONS STEP 7 Lay TOP (A) on a clean surface with holes A (1) H (1) AA (4) CC (3) II (1) facing up. Insert (3) DOWELS (CC) into holes in the middle of TOP (A) as shown. Take DRAWER DIVIDER (H) and orient the notch toward the long strip of wood on TOP (A).
- Page 8 ASSEMBLY INSTRUCTIONS STEP 9 Align and press dowels on DRAWER FRONT I (2) L (2) M (2) BB (8) II (1) J (2) PANEL (I) and DRAWER BACK PANEL (J) into blind holes on DRAWER RIGHT PANEL (L). Insert (4) DRAWER SCREWS (BB) through the DRAWER RIGHT PANEL (L) and fasten them tightly to DRAWER FRONT PANEL (I) and DRAWER BACK PANEL (J) with SCREWDRIVER...
-
Page 9: Usage Instructions
USAGE INSTRUCTIONS Install Drawers Align rails on Drawer with rails on the Kitchen Island. Push Drawer all the way into Kitchen Island. Remove Drawers Pull one Drawer out so that it is almost fully extended. On the LEFT-hand side, pull the black release lever UP. - Page 10 SERVICE PARTS LIST – NATURAL Customer Service provides the following replacement parts: (see page 11 for exploded parts view) Part Number Description Part Number Description Drawer Right Panel Wrench Drawer Bottom Washer Drawer Front Non-locking Caster Top Front Frame Left Side Frame Connector Screw Hanger Stud Cam Lock...
- Page 11 SERVICE PARTS LIST - WHITE Customer Service provides the following replacement parts: (see page 11 for exploded parts view) Part Number Description Part Number Description Drawer Right Panel Wrench Drawer Bottom Washer Drawer Front Non-locking Caster Top Front Frame Left Side Frame Connector Screw Hanger Stud Cam Lock...
-
Page 12: Service Parts List
SERVICE PARTS LIST Customer Service provides the following replacement parts:... -
Page 13: Care And Maintenance
WARNINGS 1. Read and understand all instructions. Failure to follow all instructions may result in injury and/or damage. 2. The warnings, cautions, and instructions discussed in this manual cannot cover all possible conditions or situations that may occur. The user must always be aware of their environment and ensure that they use the product in a safe and responsible manner. -
Page 14: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a 48” Bamboo Kitchen Island with Drawers. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form. Include a copy of your original receipt with your submission. First Name: Last Name: Address:... -
Page 15: Limited Warranty
LIMITED WARRANTY 48” Kitchen Island with Drawers LIMITATION OF REMEDIES AND LIABILITY... - Page 16 CONTACT US QUESTIONS? NEED PARTS? WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service.
