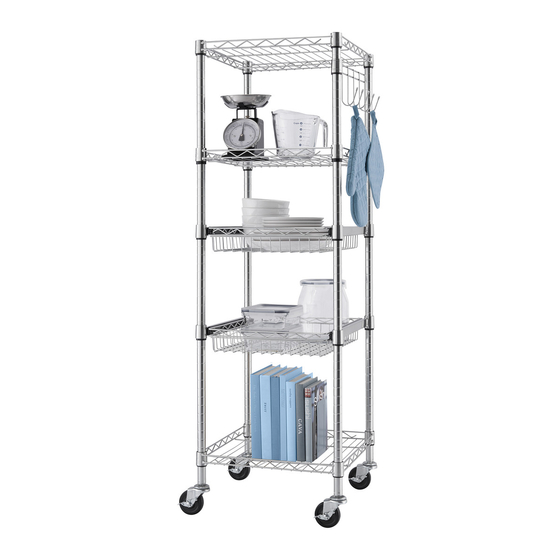

Thank you for purchasing a TRINITY EcoStorage™ 6-Tier NSF Wire Shelving Rack
w/Wheels. In order to register your product to receive streamlined customer service,
please fill out the following Product Registration Form and (1) fax the form to
310.347.4134 or (2) complete the Product Registration Form at www.TRINITYii.com or
(3) scan and email the form to customerservice@TRINITYii.com. Include a copy of
your original receipt with your submission.
First Name:
Address:
City:
Email A ddress:
Product Model #:
Location of Purchase:
Please rate the importance of each feature (1 -­ least important, 10 -­ most important)
Quality Price Size/Capacity A ppearance Other
Comments/Suggestions:
Last Name:
State: Zip Code:
Phone:
Purchase Date: / /
ECOSTORAGE™ 6-­TIER NSF
WIRE SHELVING RACK w/WHEELS
USER'S MANUAL
Please inspect box contents to ensure you have received all components.
Note: The black circular plastic tops in between the shelves are used only for packaging
purposes. They are NOT NEEDED. Please discard.
A
Top Pole -­ x4
End Cap (Inside the Pole)
Pole Connector (Inside the Pole)
C Shelf -­ x6
D Slip Sleeves -­ x48
Casters -­ x4
(w/wrench)
F
(2 locking, 2 non-­locking)
For mobile option
H End cap -­ x4
Used if making (2) 3-­Tier shelves
CAUTION: Failure to follow these guidelines may result in property damage or personal injury.
Each shelf holds up to 600 lbs. with equal weight distribution on leveling feet (without casters).
Each shelf holds up to 100 lbs. with equal weight distribution on locked casters.
TRINITY
B
Bottom Pole -­ x4
Threaded Insert (Inside the Pole)
E Backstand -­ x6
Feet Levelers -­ x4
G
For stationary option
I Threaded Insert -­ x4
Used if making (2) 3-­Tier shelves
