DC input breaker slot

and Breaker Guard

mounting holes

Unthreaded standoffs

½" conduit knockouts

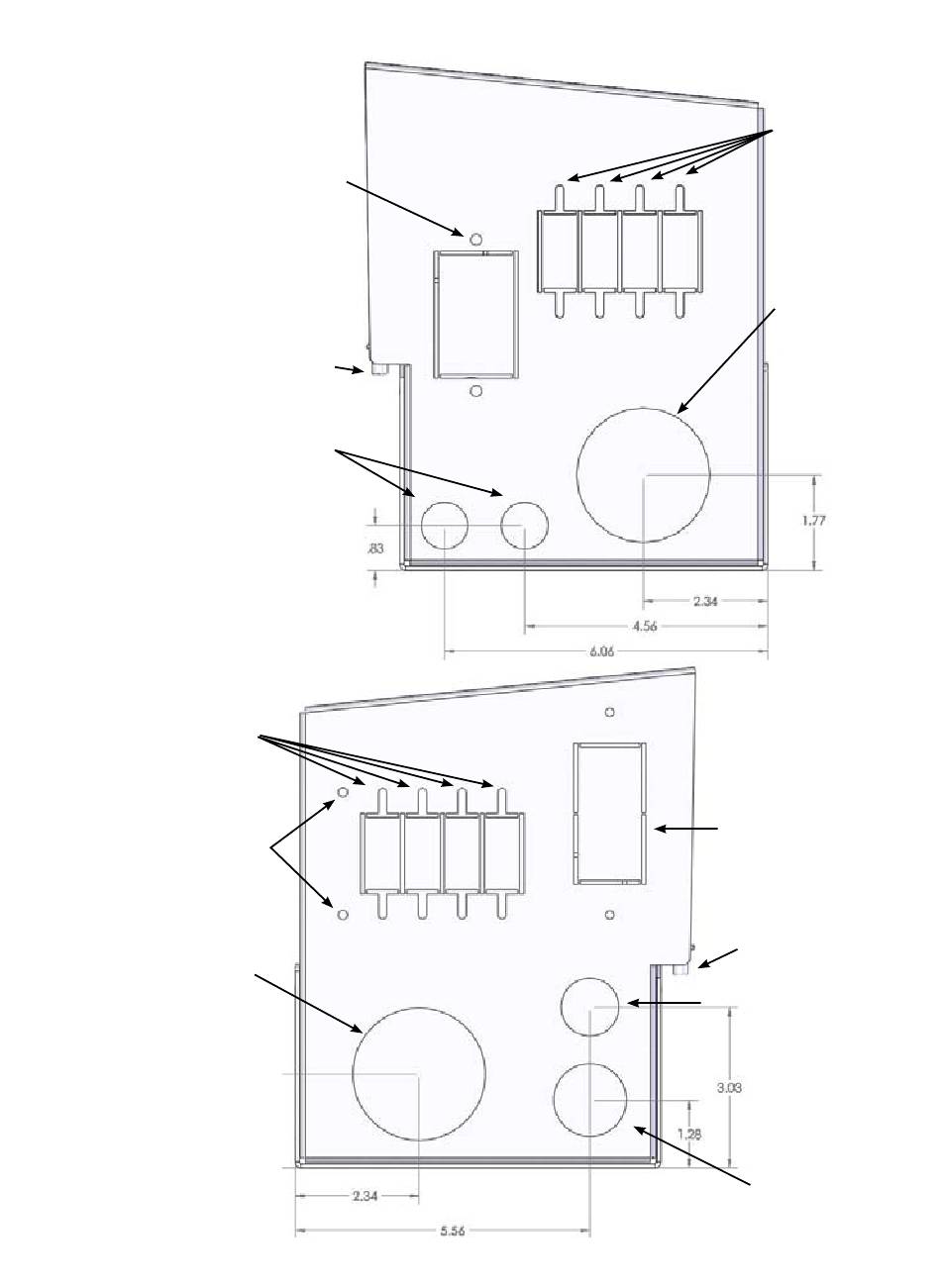

Figure 4: FLEXware 250 DC side

AC breaker slots

Bypass Slide Plate

mounting holes

2" conduit knockout

Figure 5: FLEXware 250

AC side

DC breaker

slots

2" conduit

knockout

AC receptacle

knockoff

(off-grid

systems only)

Unthreaded

standoffs

3/4" counduit

knockout

1" conduit

knockout
