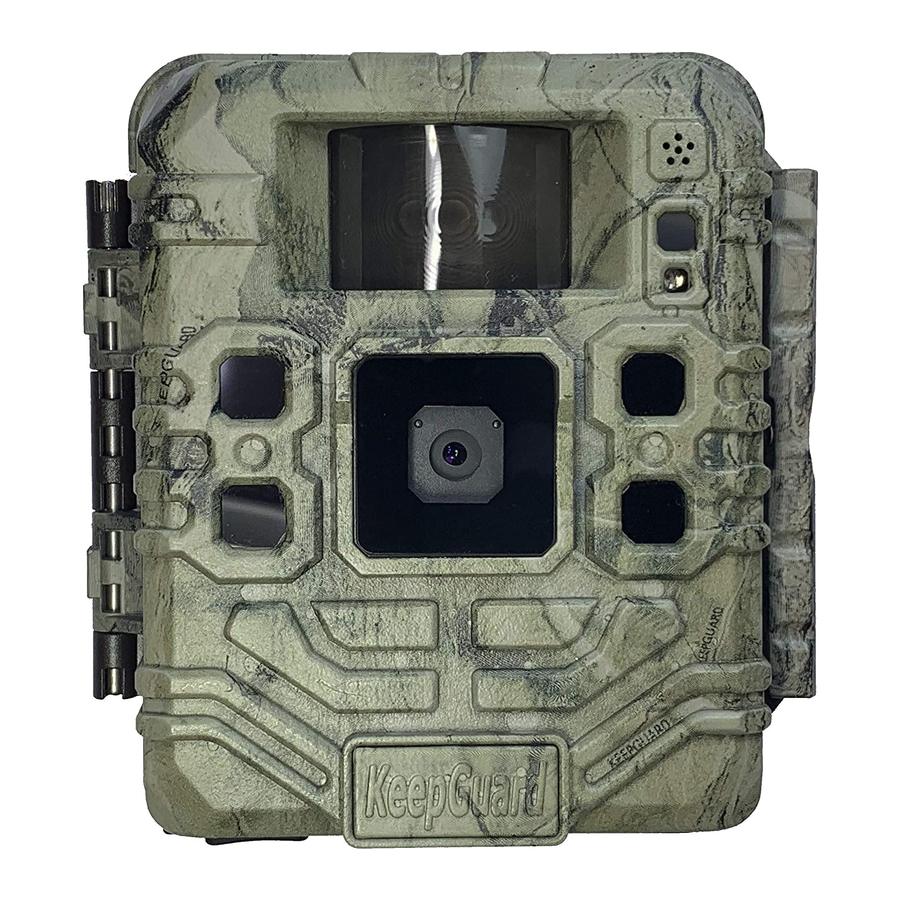

Highly Recommended by Outdoor Explorers - KeepGuard Wildlife Scouting Cam
This KeepGuard cam is the best-selling scouting camera which is designed for activity and is resistant against water and snow. It is
equipped with built-in infrared LEDs, so that it can be triggered by any movement in a location, then take high quality pictures or
video clips. Please refer to the notes below and instructions in this manual to ensure that you are completely satisfied with this
product.
Applicable models：KG375
Contents
KEEPTIME
KG Cams Instruction Book
2
3
4
5
6
7
7
8
9~11
12
13
14
1
Advertisement
Table of Contents
Related Manuals for KeepGuard KG375
Summary of Contents for KeepGuard KG375
-
Page 1: Table Of Contents
KG Cams Instruction Book This KeepGuard cam is the best-selling scouting camera which is designed for activity and is resistant against water and snow. It is equipped with built-in infrared LEDs, so that it can be triggered by any movement in a location, then take high quality pictures or video clips. -
Page 2: Quick Start
Load 4 lithium AA or alkaline AA batteries Insert the SD card Switch to the“On” Connect your Keepguard camera to the “KEEP GUARD”App with Bluetooth to do setting. Put it good position Switch to the ON Mode and it have started working How to use App , you can reference Keep Guard App “quick start”... -
Page 3: Notes Before Use
Notes Before Use 1. When setting camera parameters, please put camera in ON mode , open Keep Guard App and connect your camera. 2. When you connect camera and app,your can change settings. 3. To replace the battery, SD card,firstly turn camera to OFF mode. 4. -
Page 4: View Drawings
View Drawings KEEPTIME... -
Page 5: Camera Overview
Camera Overview KEEPTIME... -
Page 6: Standard Accessories
Standard Accessories 1×Belt 1×USB 1×Case 1×Manual Other Accessories (not included) 1× Security Case 1×Solar panel Micro-Lens / Wide-angel Lens 1×Cradle Head KEEPTIME... -
Page 7: Power Supply
Power Supply After opening the latch on the right side of the camera, you will see that it has 4 battery slots. For maximum battery life, we recommend using 4 lithium AA or alkaline AA batteries. Please be sure to insert each battery with correct polarity (negative or“flat”end against the long spring of each battery slot). -
Page 8: Operational Modes
Operational Modes The cam has three basic operational modes: 「OFF」, 「ON」and 「APP SETUP」 ●「OFF 」Mode When cam in OFF mode, you can do the following: • replacing the SD card or batteries • connecting cam with other device by USB port It will occur a little of power consumption under OFF mode. -
Page 9: Settings
Keep Guard App quick start In the ON mode and you connect the camera by APP. You can check and change the settings of the cam with APP. When you connect the camera by APP , you will see the current settings information . Connecting Camera(s): 1. -
Page 10: Settings 9~11
Settings Camera Name： Allows the user to set a custom name for the camera. Useful for ID purposes when multiple cameras are setup, since each camera will imprint its name on all photos (but not videos) it captures. Mode: Selects whether still photos or video clips are captured when the camera is triggered. - Page 11 Settings Field Scan： Default “Off” - Allows camera to take Picture every so many minutes between two different times Select Scan Interval - Amount of time in between each picture Time Stamp: Default ‘On’. This is the information bar that appears on the bottom of every video. Sync Coordinate：...
-
Page 12: Mounting And Positioning
MOUNTING and POSITIONING Mounting We recommend mounting cam on a sturdy tree with a diameter of about 6 in. (15cm). To get the optimal picture quality, the tree should be about 16-17 ft(5 meters) away from the place to be monitored, with the camera placed at a height of 5-6.5 ft. -
Page 13: Specification
Specification Model Number KG375 Effective Pixels Lens lens: f=7.36mm F/NO:2.8 FOV=50°,HOV=38; IR-Flash Range High Power LED : 4*850nm LEDS : 25m; 4*940nm LEDS :20m Display Screen No Display(APP set) Image Size 16M(4608x3456);3M (2048*1536); Video Size 1920*1080;1280*720 ; 640*480 PIR Sensitivity... -
Page 14: Warranty Card
Warranty Card Warranty Warranty State Model During warranty, hardware failure occurring, which Serial No caused by product itself, we will provide free Date of Purchase maintenance service for the customer. Free warranty is for the first year. If there is a need for repair, you Your Name should offer this warranty card, please take care of this card.
