INSTALL QUICK CONNECT BRACKETS AND SUN SHADE

IMPORTANT: The screws included in your
hardware kit are for use with wood only. Call
Customer Service (1-800-560-4667) for
mounting recommendations when attaching your
shade to any other material.

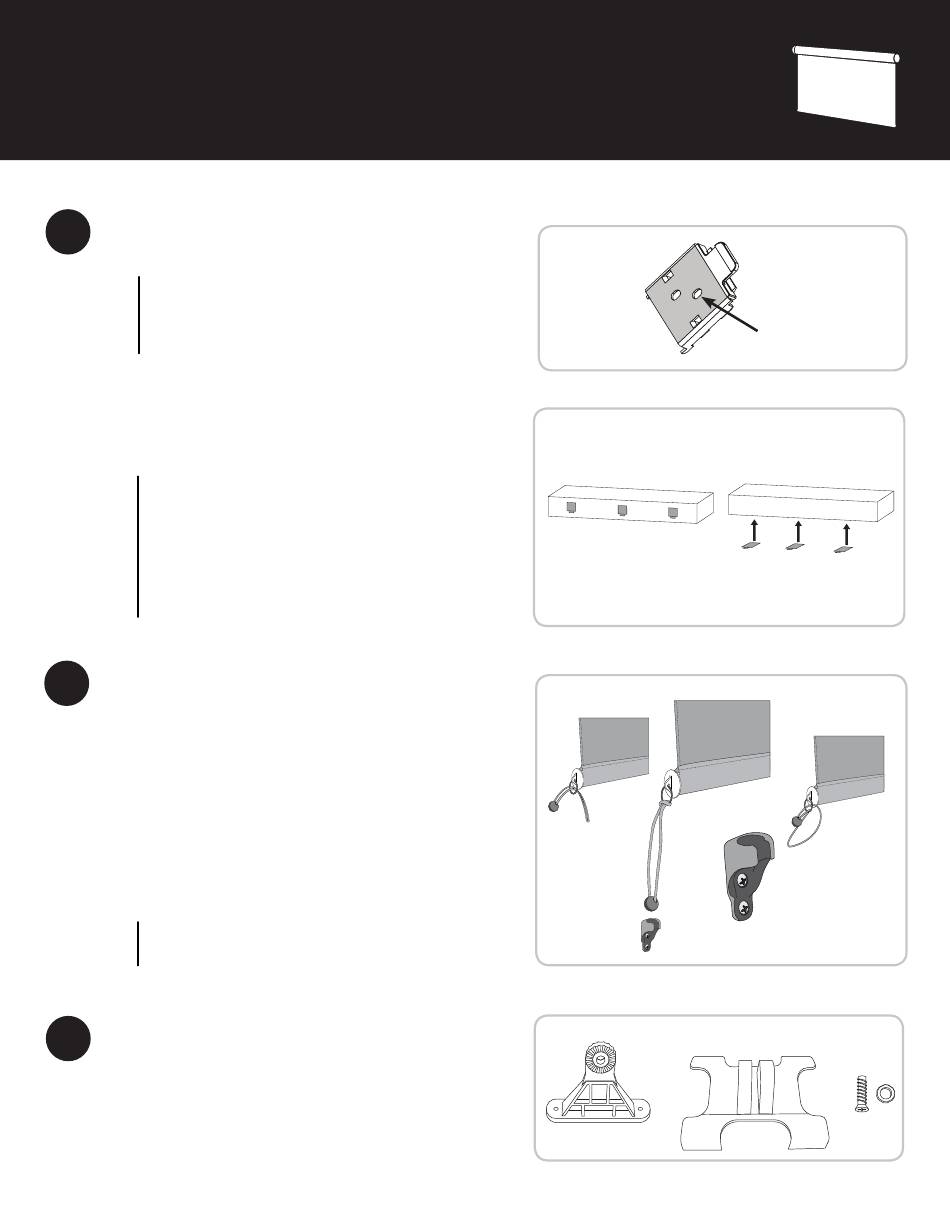

A. In the desired locations, attach Quick Connect Brackets (Fig. 3)
with screws, into wooden stud.
B. Install the Shade by snapping the unit securely into place.
NOTE: If installing to a ceiling (Fig. 4) ensure the
tab on the bracket facing towards you. If installing
to a wall (Fig. 5) ensure that the tab on the bracket
is facing downward. Allow at least 5.08 cm (2 in) of
clearance between the bracket and wall or ceiling to
allow space to snap shade onto bracket.
If brackets are installed upside down or backwards,
the blind WILL NOT FIT.
3
INSTALL BUNGEE TIE DOWNS (optional)
Bungee tie downs have been provided to secure your sun shade in
mild to moderate wind conditions.
A. Thread the bungee through the end cap ring and back
through itself making a lark's head knot. (Fig. 6)
B. Install the receiver (Fig. 7) approximately 13 cm (5 in) below
where the shade will stop, to allow for proper tension of
bungee cord.
C. Attach bungee to receiver to secure shade.
NOTE: Wood screws have been provided. If
installing into any material other than wood,
additional screws may be needed.
4

INSTALL SOLAR PANEL

A. Remove the solar panel and installation mount from the
packaging. Using the solar panel mounting bracket and the
solar panel clip, slide the bracket between the slot behind the
clip. (Fig. 8)
INSTALLATION
INSTRUCTIONS
Fig. 3
Fig. 4
Wall mount
Tabs downward
Fig. 6
Fig. 7
Fig. 8
This side goes on
mounting surface.
Fig. 5
Ceiling mount
Tabs forward
