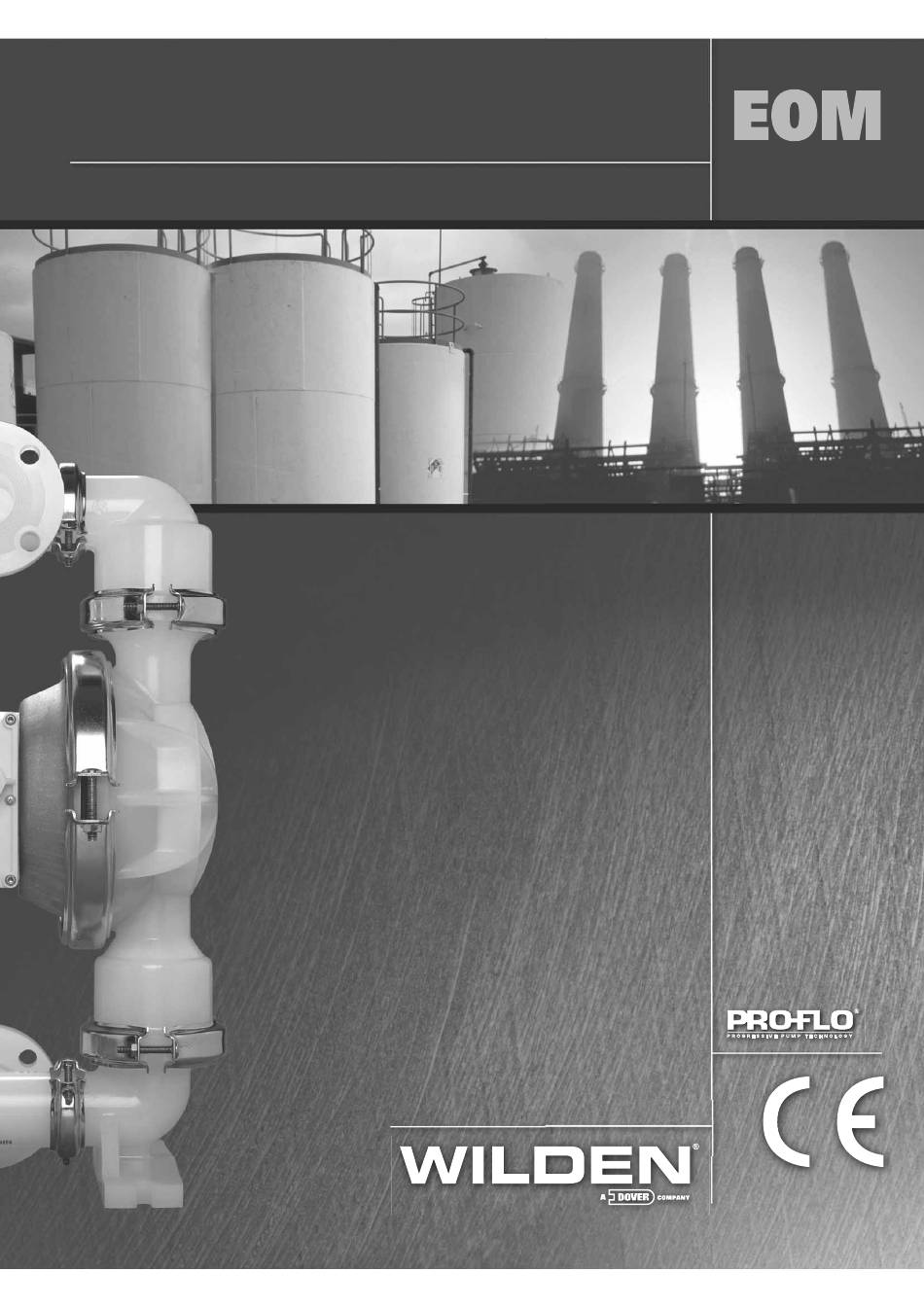

- Page 1 P8/PX8 E n g i n e e r i n g O p e r a t i o n & ™ Original Series PLASTIC Pumps M a i n t e n a n c e S i m p l i f y y o u r p r o c e s s WIL-10131-E-01...
-
Page 2: Table Of Contents
..........1 SECTION 2 WILDEN PUMP DESIGNATION SYSTEM ....... . .2 SECTION 3 HOW IT WORKS—PUMP &... -
Page 3: Cautions-Read First
Pump, valves, and containers must be grounded when handling flammable fluids and whenever discharge of static electricity is a hazard. To ground the Wilden “Champ,” all clamp bands must be grounded to a proper grounding point. -
Page 4: Wilden Pump Designation System
0502 PFA coated hardware 0564 Split manifold, inlet only NOTE: MOST ELASTOMERIC MATERIALS USE COLORED DOTS FOR INDENTIFICATION. ® Halar is a registered trademark of Solvay. Viton ® is a registered trademark of DuPont Dow Elastomers. WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01... -
Page 5: How It Works-Pump & Air Distribution System
H O W I T W O R K S The Wilden diaphragm pump is an air-operated, positive displacement, self-priming pump. These drawings show flow pattern through the pump upon its initial stroke. It is assumed the pump has no fluid in it prior to its initial stroke. -
Page 6: Dimensional Drawings
P X8 P l astic DIMENSIONS ITEM METRIC (mm) STANDARD (inch) 19.3 16.3 27.3 30.3 16.6 14.0 17.6 15.0 12.1 10.0 DIN/ANSI COMBO 122 DIA. 4.8 DIA. 155 DIA. 6.1 DIA. 20 DIA. .8 DIA. WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01... -
Page 7: Performance
For optimum life and performance, pumps should be specified so that daily operation parameters will fall in the center of the pump performance curve. Caution: Do not exceed 8.6 bar (125 psig ) air supply pressure. WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01... -
Page 8: Ptfe-Fitted
For optimum life and performance, pumps should be specified so that daily operation parameters dot on chart.) will fall in the center of the pump performance curve. Caution: Do not exceed 8.6 bar (125 psig) air supply pressure. WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01... -
Page 9: Suction Lift Curve
S U C T I O N L I F T C U R V E S P 8 P L A S T I C S U C T I O N L I F T C A PA B I L I T Y PTFE Diaphragms WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01... - Page 10 N O T E S WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01...
- Page 11 P L A S T I C P X 8 P L A S T I C P E R F O R M A N C E...
-
Page 12: Px8 Plastic Performance
fl ow and an even than the fl ow and exhaust is the highest greater decrease in rate, effi ciency porting. fl ow rate setting air consumption. is improved and possible operating costs are reduced. WILDEN PUMP & ENGINEERING, LLC PX8 Plastic Performance... -
Page 13: How To Use This Ems Curve
The fl ow rate and air consumption at Setting sect the horizontal discharge pressure line. 2 are found to be 18.2 lpm (4.8 gpm) and 7.9 After locating your EMS points on the EMS /h (4.7 scfm) respectively. PX8 Plastic Performance WILDEN PUMP & ENGINEERING, LLC... - Page 14 fl ow rate. optimal EMS setting. For this example the EMS setting is 1.8. WILDEN PUMP & ENGINEERING, LLC PX8 Plastic Performance...
- Page 15 (or interpolating) this point on the curve, draw a vertical line downward until reaching the bottom scale on the chart and identify the air X Factor (fi gure 7). For this example the air X Factor is 0.40 PX8 Plastic Performance WILDEN PUMP & ENGINEERING, LLC...
-
Page 16: Performance Curves Rubber-Fitted
P E R F O R M A N C E WILDEN PUMP & ENGINEERING, LLC PX8 Plastic Performance... -
Page 17: Tpe-Fitted
P E R F O R M A N C E PX8 Plastic Performance WILDEN PUMP & ENGINEERING, LLC... -
Page 18: Ptfe-Fitted
P E R F O R M A N C E WILDEN PUMP & ENGINEERING, LLC PX8 Plastic Performance... -
Page 19: Ultra-Flex™-Fitted
P E R F O R M A N C E PX8 Plastic Performance WILDEN PUMP & ENGINEERING, LLC... -
Page 20: Suction Lift Curve
P X 8 P L A S T I C METER FT H S U C T I O N L I F T C A PA B I L I T Y PSIG [BAR] Inlet Air Pressure WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01... - Page 21 S e c t i o n 5 C N O T E S WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01...
-
Page 22: Suggested Installation, Operation & Troubleshooting
The best choice possible will be a site involving the shortest For P8 & PX8 Plastic models, Wilden offers 150 lb. flanges. The and straightest hook-up of suction and discharge piping. following details should be noted when mating these to pipe Unnecessary elbows, bends, and fittings should be avoided. - Page 23 A properly functioning valve will stop the air supply to the pump, therefore stopping output. This shut-off valve should be located far enough away from the pumping equipment such that it can be reached safely in an emergency situation. WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01...
- Page 24 Frequency of use, line pressure, viscosity and abra- described in the ASSEMBLY/DISASSEMBLY INSTRUCTIONS. siveness of process fluid all affect the parts life of a Wilden Pump discharge rate can be controlled by limiting the volume pump. Periodic inspections have been found to offer the best and/or pressure of the air supply to the pump (preferred means for preventing unscheduled pump downtime.
-
Page 25: Pump Disassembly
Be aware of any hazardous effects of contact with your process fluid. The Wilden P8 and PX8 have a 51 mm (2") inlet and outlet and are designed for flows up to 587 lpm (155 gpm). Its air distribution system is based on a revolutionary design which increases reliability and performance. - Page 26 Remove the two small clamp bands which fasten the intake chambers and inspect for nicks, gouges, chemical attack or manifold to the liquid chambers. abrasive wear. Replace worn parts with genuine Wilden parts for reliable performance. Step 6. Figure 6 Step 7.
- Page 27 Using an adjustable for the opposite liquid chamber. Inspect diaphragm assembly and shaft for signs of wrench or by hand, remove diaphragm wear or chemical attack. Replace all worn parts with genuine Wilden parts for reliable assembly from shaft. performance.
-
Page 28: Pro-Flo
Drain the pump by turning it upside down and allowing any fluid to flow into a suitable container. Be aware of hazardous effects of contact with your process fluid. The Wilden Plastic P8 utilizes a revolutionary Pro-Flo ® distribution system. A 13 mm (1/2") air inlet connects the air supply to the center section. - Page 29 10) are removable and can be pilot sleeve assembly or outer bushing replaced if necessary. Sleeves can o-rings if necessary. be press fit by hand. NOTE: Seals should not be removed from pilot spool. Seals are not sold separately. WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01...
- Page 30 Inspect seals for signs of wear and replace entire assembly if necessary. Use caution when handling air valve spool to prevent damaging seals. NOTE: Seals should not be remove from assembly. Seals are not sold separately. WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01...
- Page 31 (2) replace if necessary. for wear. If replacement is necessary, (6) may be removed or replaced if use an o-ring pick to remove the necessary. used Glyd rings then replace with genuine Wilden replacement parts. WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01...
-
Page 32: Reassembly Hints & Tips
Slowly insert the center shaft with a rotating motion. This will complete the resizing of the seal. • Perform these steps for the remaining seal. Figure A Figure B NEEDLE NOSE PLIERS GLIDE RING TAPE GLIDE RING TAPE WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01... -
Page 33: Ptfe Gasket Kit Installation
Center the gasket so that it evenly covers the o-ring and seat Gently apply pressure to gasket to ensure the adhesive main- areas. tains a positive seal to stay in place during pump assembly. WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01... -
Page 34: P8 Rubber/Tpe-Fitted
R U B B E R / T P E - F I T T E D O R U L T R A - F L E X - F I T T E D WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01... - Page 35 08-6070-03-500 08-6070-03-500 08-6070-05-500 08-6070-05-500 Large Hex Nut (3/8"-16) 08-6450-03 08-6450-03 08-6420-05 08-6420-05 Pilot Spool Retaining O-Ring 08-2650-49-700 08-2650-49-700 08-2650-49-700 08-2650-49-700 Air Valve Assembly includes items 2 and 3. 0502 Specialty Code = PFA-Coated Hardware WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01...
-
Page 36: P8 Ptfe/Ultra-Flex™-Fitted
E X P L O D E D V I E W & P A R T L I S T I N G P8 PLASTIC E X P L O D E D V I E W P T F E - F I T T E D WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01... - Page 37 08-6070-03-500 08-6070-05-500 08-6070-05-500 Large Hex Nut (3/8"-16) 08-6450-03 08-6450-03 08-6420-05 08-6420-05 Pilot Spool Retaining O-Ring 08-2650-49-700 08-2650-49-700 08-2650-49-700 08-2650-49-700 Air Valve Assembly includes item numbers 2 and 3. 0502 Specialty Code = PFA-Coated Hardware WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01...
-
Page 38: Px8 Rubber/Tpe-Fitted
R u b b e r / T P E / U l t r a - F l e x ™ - F i t t e d E X P L O D E D V I E W WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01... - Page 39 15-3514-99 15-3514-99 Air Valve Assembly includes items 2 and 3. Center Block Assembly includes items 10, 11, 15 and 16. 0502 Specialty Code = PFA Coated Hardware All boldface items are primary wear parts. WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01...
-
Page 40: Px8 Ptfe/Ultra-Flex™-Fitted
E X P L O D E D V I E W & P A R T L I S T I N G PX8 PLASTIC E X P L O D E D V I E W P T F E - F i t t e d WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01... - Page 41 15-3514-99 15-3514-99 Air Valve Assembly includes items 2 and 3. Center Block Assembly includes items 10, 11, 15 and 16. 0502 Specialty Code = PFA Coated Hardware All boldface items are primary wear parts. WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01...
-
Page 42: Elastomer Options
PTFE Encap. (Viton®) 08-1200-60-500 08-1300-60-500 NOTES PTFE-encapsulated Viton ® O-rings, P/N 08-1200-60-500 and P/N 08-1300-60-500, are standard on all PTFE-fitted pumps. PTFE diaphragm, P/N 08-1010-55, must be used with Neoprene back-up diaphragms, P/N 08-1060-51. WILDEN PUMP & ENGINEERING, LLC WIL-10131-E-01... - Page 43 Since the use of Wilden pumps and parts is beyond our control, we cannot guarantee the suitability of any pump or part for a particular application and Wilden Pump and Engineering, LLC shall not be liable for any consequential damage or expense arising from the use or misuse of its products on any application.
